AVUHSF-BS Japanese Standard Automotive Cable

Application

This Vinyl insulated single-core cable is used in EPS (Electric power steering) for automobiles.

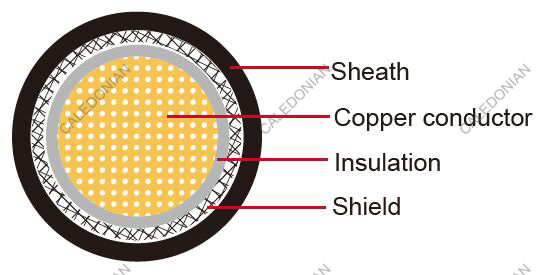

Construction:

Conductor: Annealed standed copper
Insulation: Vinyl
Shield: Tin coated annealed stranded copper
Sheath: Vinyl
Standard Compliance: HKMC ES 91110-05

Technical Parameters:

Operating temperature:–40 °C to +135°C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x5.0 207/0.18 3.0 3.94 0.8 6.7 7.1 72
1x8.0 315/0.18 3.7 2.32 0.8 7.5 7.9 128
1x10.0 399/0.18 4.2 1.76 0.9 8.2 8.6 153

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
