AVSSXFT Japanese Standard Automotive Cable

Application

This Cross-linked Polyvinyl Chloride insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistant with irradiated PVC.

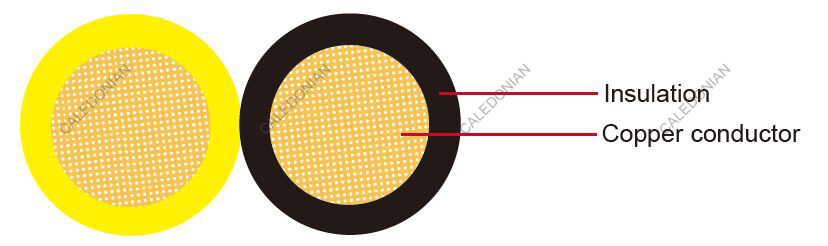

Construction:

AVSSXFT Japanese Standard Automotive Cable

Conductor: Annealed stranded copper
Insulation: Cross-linked Polyvinyl Chloride
Standard Compliance: JASO D611; ES SPEC

Technical Parameters:

Operating temperature:–40 °C to +100 °C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
0.3 19/0.16 0.8 49.4 0.3 2.8 3.0 10.3
0.5 19/0.19 1.0 35.0 0.3 3.2 3.4 14.0
0.85 37/0.17 1.2 22.0 0.3 3.6 3.8 20.4
1.25 37/0.21 1.5 14.6 0.3 4.2 4.4 29.5

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
