AVSSH Japanese Standard Automotive Cable

Application

This PVC insulated single-core cable is used for automobiles, vehicles and Motorcycles.

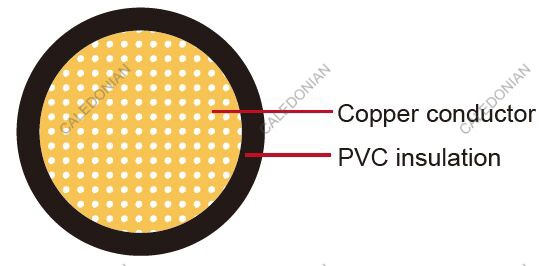

Construction:

Conductor: Stranded ,bare copper
Insulation: PVC
Standard Compliance: JASO D 611-09 JASO D608

Technical Parameters:

Operating temperature: –40 °C to +100 °C
Rated voltage:25VA and 60 VDC

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x0.3f 19/0.16 0.8 48.6 0.3 1.4 1.5 5
1x0.5f 19/0.16 1.0 34.6 0.3 1.6 1.7 7
1x0.75f 19/0.23 1.2 23.6 0.3 1.8 1.9 10
1x1.25f 37/0.21 1.5 14.6 0.3 2.1 2.2 14

The “f“ in the nominal size column indicates a flexile conductor with a fine wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
