AVSS-BS Japanese Standard Automotive Cable

Application

This PVC insulated cable is used in low electrostatic capacitance in automobiles(vehicles). Thinner insulation than AVS type. Suitable for the consideration of the shielding characteristic.

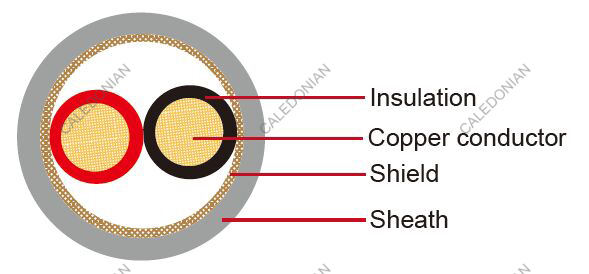

Construction:

AVSS-BS Japanese Standard Automotive Cable

Conductor: Annealed stranded copper
Insulation: PVC
Shield: Tin coated annealed copper
Sheath: PVC
Standard Compliance: JASO D611; ES SPEC

Technical Parameters:

Operating temperature:–40 °C to +120 °C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1/0.3 70.26 0.8 50.2 0.3 3.2 3.4 17
2/0.3 7/0.26 0.8 50.2 0.3 4.6 4.8 28
3/0.3 7/0.26 0.8 50.2 0.3 4.8 5.0 35
4/0.3 7/0.26 0.8 50.2 0.3 5.2 5.4 43
1/0.5 7/0.32 1.0 32.7 0.3 3.4 3.6 22
2/0.5 7/0.32 1.0 32.7 0.3 5.0 5.2 36
3/0.5 7/0.32 1.0 32.7 0.3 5.3 5.5 45
4/0.5 7/0.32 1.0 32.7 0.3 5.7 5.9 55
1/0.85 19/0.24 1.2 21.7 0.3 3.5 3.7 25
2/0.85 19/0.24 1.2 21.7 0.3 5.4 5.6 42
3/0.85 19/0.24 1.2 21.7 0.3 5.6 5.9 58
4/0.85 19/0.24 1.2 21.7 0.3 6. 6.3 64
1/1.25 19/0.29 1.5 14.9 0.3 3.9 4.1 33
2/1.25 19/0.29 1.5 14.9 0.3 6.0 5.2 56
3/1.25 19/0.29 1.5 14.9 0.3 6.4 6.6 72
4/1.25 19/0.29 1.5 14.9 0.3 6.9 7.1 90

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
