ATW-FEP Japanese Standard Automotive Cable

Application

This FEP insulated single-core cable is used for wiring of car engine room, electrical and electronic components and other product up to 200°C temperature.

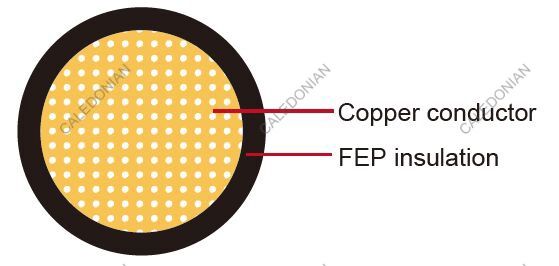

Construction:

ATW-FEP Japanese Standard Automotive Cable

Conductor: Tin coated annealed stranded copper
Insulation: Teflon(FEP)
Standard Compliance: ES SPEC

Technical Parameters:

Operating temperature: –40 °C to +200°C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x0.30 15/0.18 0.8 51.5 0.3 1.4 1.5 5.9
1x0.50 20/0.18 0.9 38.6 0.3 1.6 1.7 7.6
1x0.85 34/0.18 1.2 25.8 0.3 1.8 1.9 11
1x1.25 50/0.18 1.5 15.5 0.3 2.1 2.2 15.5
1x2.00 81/0.18 1.9 9.78 0.4 2.6 2.7 25
1x3.00 120/0.18 2.6 6.62 0.4 3.4 3.6 39
1x5.00 210/0.18 3.3 3.81 0.5 4.2 4.5 63

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
