AHFX Japanese Standard Automotive Cable

Application

This Fluoroelastomer insulated single-core cable is used in Fuel Pump and Transmission for automobiles, Superior oil resistance, Suitable for the consideration of the flexibility and thermal resistance.

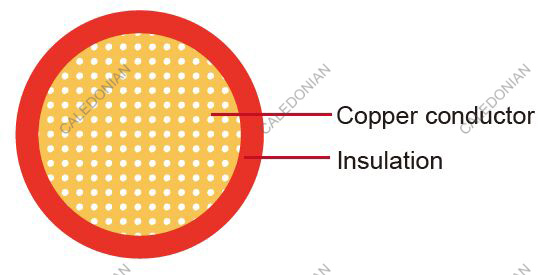

Construction:

AHFX Japanese Standard Automotive Cable

Conductor: Tin coated annealed stranded copper
Insulation: Fluoroelastomer
Standard Compliance: KIS-ES-8093

Technical Parameters:

Operating temperature: –40 °C to +200°C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x0.50 20/0.18 0.9 38.2 0.4 1.55 1.85 7.8
1x0.75 19/0.23 1.2 24.7 0.4 1.75 2.05 10.8
1x1.25 50/0.18 1.4 15.9 0.4 2.15 2.45 16.7
1x2.00 37/0.26 1.8 10.5 0.4 2.45 2.75 23.5

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
