AESSXF/ALS Japanese Standard Automotive Cable
Application
This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistant with irradiated PE. Suitable for the consideration of the flexibility and shielding characteristic. Shielding wire is consist of drain wire included AI-Mylar tape around core.

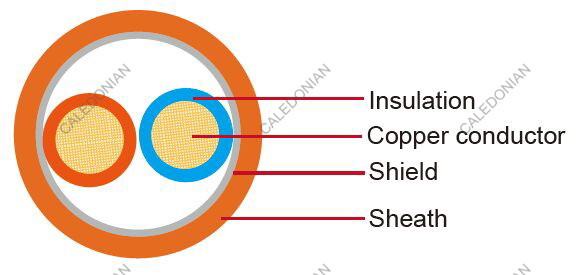

Construction:
Conductor: Annealed stranded copper
Insulation: XLPE
Shield: AI-Mylar Tape
Sheath: PVC
Standard Compliance: JASO D608; HMC ES SPEC
Technical Parameters:
Operating temperature:–40 °C to +120 °C
| Conductor | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal Cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm2 | no./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 3.4 | 3.6 | 17 |
| 2/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 3.9 | 4.1 | 24 |
| 3/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 4.1 | 4.3 | 29 |
| 4/0.3 | 19/0.16 | 0.8 | 49.4 | 0.3 | 4.4 | 4.7 | 35 |
| 1/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 3.6 | 3.8 | 20 |
| 2/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 4.3 | 4.5 | 28 |
| 3/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 4.7 | 4.9 | 38 |
| 4/0.5 | 19/0.19 | 1.0 | 35.03 | 0.3 | 5.1 | 5.3 | 46 |
| 1/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 3.8 | 4.0 | 23 |
| 2/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 4.9 | 5.1 | 38 |
| 3/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 5.1 | 5.3 | 49 |
| 4/0.75 | 19/0.23 | 1.2 | 23.88 | 0.3 | 5.6 | 5.8 | 60 |
| 1/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 4.1 | 4.3 | 28 |
| 2/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 5.5 | 5.7 | 48 |
| 3/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 5.8 | 6.0 | 64 |
| 4/1.25 | 37/0.21 | 1.5 | 15.2 | 0.3 | 6.3 | 6.5 | 80 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
