RG7H1R for Airport Lighting

ENV 50213 RG7H1R for Airport Lighting

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

ENV 50213

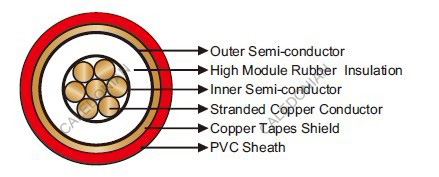

Construction

Conductor: Compact stranded bare copper conductor.

Inner Semi-Conductor: Extruded semi-conducting compound.

Insulation: High module rubber compound, G7 type.

Outer Semi-Conductor: Extruded semi-conducting compound.

Shield: Bare copper tapes.

Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um) 3.6/6kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures 0℃~+90℃
Minimum Bending Radius 15×OD
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Insulation Minimum Shield Nominal SheathThickness Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm mm mm kg/km
1×10 2.3 0.075 1.4 14.0 305
