LYAR

NF C 32 070 C2 LYAR pvc airport cables

Applications

These cables are used for connection between Control Tower and Constant Current Regulators (CCRs), suitable for transmission of voice data up to 2,000 kHz.

Standards

NF C 32 070 C2

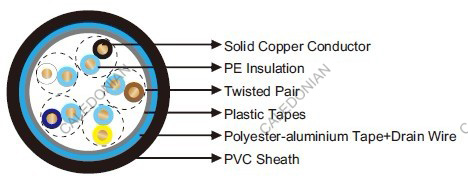

Construction

Conductor: Solid bare copper.
Insulation: PE.
Cable Element: Pairs.
Separator: One or more plastic tapes.
Shield: Polyester-aluminium tape with drain wire.
Inner Sheath: PVC.
Armour: Steel tapes.
Outer Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um) 200V
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -15℃~+70℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Lead Free Yes

Dimensions and Weight

Construction AWG Nominal Overall Diameter Nominal Weight
No. ×mm² - mm kg/km
5×2×0.20 24 9.9 147
10×2×0.20 24 10.7 178
15×2×0.20 24 11.7 222
30×2×0.20 24 14.4 342
56×2×0.20 24 18.1 537
2×2×0.50 20 10.4 57
3×2×0.50 20 10.6 70
5×2×0.50 20 12.0 97
10×2×0.50 20 14.6 174
15×2×0.50 20 16.0 236
30×2×0.50 20 24.4 441
56×2×0.50 20 23.4 799
