 FAA L-824 Type C 600V

FAA L-824 Type C 600V

Applications

These cables are designed for use in airport lighting and control circuits, suitable for installation in ducts, conduit and direct burial.

Standards

FAA L-824 Type C
ICEA S-95-658/NEWA WC71

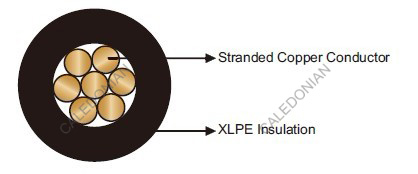

Construction Conductor: Stranded bare copper to ASTM B.
Insulation: XLPE.
Sheath (for multiconductor cables only): PVC

Technical Data

Rated Voltage Uo/U (Um) 600V
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 5×OD

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No.× AWG - mm mm mm inches mm inches kg/km lbs/kft
1×12 7 mm inches - - 4.62 0.182 46 30
1×10 7 1.14 0.045 - - 5.21 0.205 61 43
1×8 7 1.14 0.045 - - 6.76 0.266 101 69
1×6 7 1.52 0.06 - - 7.72 0.304 152 102
1×4 7 1.52 0.06 - - 8.94 0.352 231 158
2×12 7 0.76 0.03 1.14 0.045 10.41 0.41 146 98
2×10 7 0.76 0.03 1.14 0.045 11.56 0.455 199 134
2×8 7 1.14 0.045 1.52 0.06 15.37 0.605 323 217
2×6 7 1.14 0.045 1.52 0.06 17.40 0.685 446 300
2×4 7 1.14 0.045 1.52 0.06 19.81 0.780 632 425
3×12 7 0.76 0.03 1.14 0.045 11.05 0.435 187 126
3×10 7 0.76 0.03 1.14 0.045 12.19 0.480 259 174
3×8 7 1.14 0.045 1.52 0.06 16.38 0.645 437 294
3×6 7 1.14 0.045 1.52 0.06 18.42 0.725 610 410
3×4 7 1.14 0.045 2.03 0.08 21.97 0.865 908 610
4×12 7 0.76 0.03 1.14 0.045 12.07 0.475 222 149
4×10 7 0.76 0.03 1.52 0.06 14.22 0.560 350 235
4×8 7 1.14 0.045 1.52 0.06 17.91 0.705 548 368
4×6 7 1.14 0.045 1.52 0.06 20.19 0.795 772 519
4×4 7 1.14 0.045 2.03 0.08 24.13 0.950 1165 783
5×12 7 0.76 0.03 1.14 0.045 13.08 0.515 292 196
5×10 7 0.76 0.03 1.52 0.06 15.49 0.610 405 272
6×12 7 0.76 0.03 1.52 0.06 15.24 0.600 357 240
6×10 7 0.76 0.03 1.52 0.06 16.89 0.665 495 333
7×12 7 0.76 0.03 1.52 0.06 15.24 0.600 379 255
7×10 7 0.76 0.03 1.52 0.06 16.89 0.665 534 359
8×12 7 0.76 0.03 1.52 0.06 16.38 0.645 430 289
8×10 7 0.76 0.03 1.52 0.06 18.29 0.720 604 406
9×12 7 0.76 0.03 1.52 0.06 17.65 0.695 479 322
9×10 7 0.76 0.03 1.52 0.06 19.69 0.775 707 475
10×12 7 0.76 0.03 1.52 0.06 18.42 0.725 539 362
10×10 7 0.76 0.03 1.52 0.06 20.57 0.810 762 512
11×12 7 0.76 0.03 1.52 0.06 18.92 0.745 594 399
11×10 7 0.76 0.03 2.03 0.08 22.10 0.870 878 590
12×12 7 0.76 0.03 1.52 0.06 19.43 0.765 631 424
12×10 7 0.76 0.03 2.03 0.08 22.61 0.890 933 627
13×12 7 0.76 0.03 1.52 0.06 20.07 0.790 662 445
13×10 7 0.76 0.03 2.03 0.08 23.50 0.925 985 662
14×12 7 0.76 0.03 1.52 0.06 20.83 0.820 708 476
14×10 7 0.76 0.03 2.03 0.08 24.26 0.955 1053 708
15×12 7 0.76 0.03 2.03 0.08 22.35 0.880 793 533
15×10 7 0.76 0.03 2.03 0.08 24.89 0.980 1119 752
16×12 7 0.76 0.03 2.03 0.08 22.99 0.905 839 564
16×10 7 0.76 0.03 2.03 0.08 25.65 1.010 1186 797
17×12 7 0.76 0.03 2.03 0.08 23.62 0.930 902 606
17×10 7 0.76 0.03 2.03 0.08 26.29 1.035 1275 857
18×12 7 0.76 0.03 2.03 0.08 24.26 0.955 946 636
18×10 7 0.76 0.03 2.03 0.08 26.92 1.060 1342 902
19×12 7 0.76 0.03 2.03 0.08 24.26 0.955 970 652
19×10 7 0.76 0.03 2.03 0.08 26.92 1.060 1381 928
