 FAA L-824 Type C Sheathed 5kV

FAA L-824 Type C Sheathed 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational

Standards

FAA AC 150 / 5345-7E
FAA L-824 Type C
ICEA S-93-639 / NEMA WC74

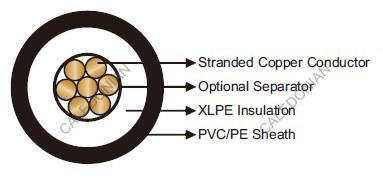

Construction

Conductor: Stranded bare or tinned copper.
Optional Separator: Optional separator or conductor shield be applied Insulation: XLPE.
Sheath: PVC/PE

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Impacted Resistant Yes
Weather Resistant Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal InsulationThickness Nominal Overall Diameter Nominal Weight
No.× AWG - mm inches mm inches mm inches kg/km lbs/kft
1×6mm² 7 2.3 0.09 0.8 0.03 9.9 0.39 180 121
1×8 7 2.3 0.09 0.76 0.03 10.1 0.396 95 64
1×6 7 2.3 0.09 0.76 0.03 11.0 0.433 127 85
1×4 7 2.3 0.09 1.14 0.045 13.0 0.509 164 110
