 FAA L-824 Type B Unshielded 5kV

FAA L-824 Type B Unshielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational

Standards

FAA L-824 Type B
ICEA S-96-659
NEMA WC71

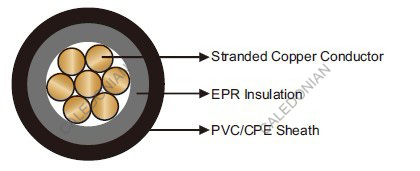

Construction

Conductor: Stranded bare or tinned copper conductor.
Insulation: EPR.
Sheath: CPE/PVC.

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+85℃
Minimum Bending Radius 5×OD
Halogen Free Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm²/ AWG - mm inches mm inches mm inches kg/km lbs/kft
1×6mm² 7/19 2.3 0.09 1.2 0.05 10.0 0.39 150 101
1×8 7/19 2.3 0.09 0.76 0.03 10.7 0.420 180 121
1×6 7/19 2.3 0.09 0.76 0.03 11.7 0.460 238 160
1×4 7/19 2.3 0.09 0.76 0.03 12.8 0.505 326 219
