Aluminum Conductor Steel Reinforced (ACSR) Cables
Application
ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
Standard
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards
Construction

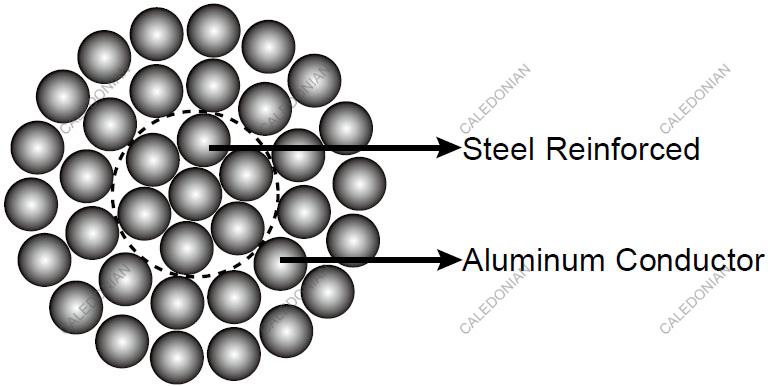

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.
By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.
Electrical Properties
Density@20oC |
Aluminium: 2.703 kg/dm |
|
Galvanised Steel: 7.80 kg/dm |
Temperature Coefficient@20°C |
Aluminium: 0.00403 (°C) |
Resistivity@20°C |
Aluminium: Should not exceed 0.028264 |
Linear Expansivity |
Aluminium: 23 x10 (°C) |
|
Galvanised Steel: 11.5 x10 (1/°C) |
Service Conditions
Ambient Temperature |
-5°C - 50°C |
Wind Pressure |
80 – 130kg/m2 |
Seismic Acceleration |
0.12 - 0.05g |
Isokeraunic Level |
10 – 18 |
Relative Humidity |
5 – 100% |
Construction Parameters
BS 215-2
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight(CU) |
Rated Strength |
Electrical Resistance @20o |
AL |
Steel |
Total |
AL |
Steel |
Core |
Total |
AL |
Steel |
Total |
Nominal |
Teorical |
|
mm2 |
mm2 |
mm2 |
mm2 |
No.×mm |
No.×mm |
mm |
mm |
Kg/Km |
Kg/Km |
Kg/Km |
KN |
Ω/Km |
Mole |
10 |
10.62 |
1.77 |
12.39 |
6/1.50 |
1/1.50 |
1.50 |
4.5 |
29 |
14 |
43 |
4.14 |
2.706 |
Squirrel |
20 |
20.94 |
3.49 |
24.43 |
6/2.11 |
1/2.11 |
2.11 |
6.33 |
57 |
28 |
85 |
7.88 |
1.368 |
Gopher |
25 |
26.24 |
4.38 |
30.62 |
6/2.36 |
1/2.36 |
2.36 |
7.08 |
71 |
35 |
106 |
9.61 |
1.093 |
Weasel |
30 |
31.61 |
5.27 |
36.88 |
6/2.59 |
1/2.59 |
2.59 |
7.77 |
87 |
41 |
128 |
11.45 |
0.9077 |
Fox |
35 |
36.66 |
6.11 |
42.77 |
6/2.79 |
1/2.79 |
2.79 |
8.37 |
101 |
48 |
149 |
13.2 |
0.7822 |
Ferret |
40 |
42.41 |
7.07 |
49.48 |
6/3.00 |
1/3.00 |
3.0 |
9.0 |
117 |
55 |
172 |
15.2 |
0.6766 |
Rabbit |
50 |
52.88 |
8.82 |
61.7 |
6/3.35 |
1/3.35 |
3.35 |
10.05 |
145 |
69 |
214 |
18.35 |
0.5426 |
Mink |
60 |
63.18 |
10.53 |
73.71 |
6/3.66 |
1/3.66 |
3.66 |
10.98 |
171 |
84 |
255 |
2.18 |
0.4545 |
Shunk |
60 |
63.27 |
37.03 |
100.3 |
12/2.59 |
7/2.59 |
7.77 |
12.95 |
178 |
287 |
465 |
5.3 |
0.4567 |
Beaver |
70 |
74.82 |
12.47 |
87.29 |
6/3.99 |
1/3.99 |
3.99 |
11.97 |
203 |
99 |
302 |
2.57 |
0.3825 |
Horse |
70 |
73.37 |
42.63 |
116.2 |
12/2.79 |
7/2.79 |
8.37 |
13.95 |
203 |
335 |
538 |
61.2 |
0.3936 |
Racoon |
75 |
79.2 |
13.2 |
92.4 |
6/4.1 |
1/4.1 |
4.1 |
12.3 |
216 |
104 |
320 |
27.2 |
0.3622 |
Otter |
80 |
83.88 |
13.98 |
97.86 |
6/4.22 |
1/4.22 |
4.22 |
13.98 |
226 |
113 |
339 |
28.8 |
0.3419 |
Cat |
90 |
95.44 |
15.86 |
111.3 |
6/4.5 |
1/4.5 |
4.5 |
15.9 |
258 |
128 |
386 |
32.7 |
0.3007 |
Hare |
100 |
105 |
17.5 |
122.5 |
6/4.72 |
1/4.72 |
4.72 |
17.5 |
284 |
141 |
425 |
36.0 |
0.2733 |
Dog |
100 |
105 |
13.5 |
118.5 |
6/4.72 |
7/1.57 |
4.71 |
14.15 |
288 |
106 |
394 |
32.7 |
0.2733 |
Hyena |
100 |
105.8 |
20.4 |
126.2 |
7/4.39 |
7/1.93 |
5.79 |
14.57 |
250 |
200 |
450 |
40.9 |
0.2712 |
Leoperd |
125 |
131.3 |
16.8 |
148.1 |
8/5.28 |
7/1.75 |
5.25 |
15.81 |
310 |
182 |
492 |
40.7 |
0.2184 |
Coyotte |
125 |
132.1 |
20.1 |
152.2 |
26/2.54 |
7/1.91 |
5.73 |
15.89 |
410 |
112 |
522 |
46.4 |
0.2187 |
Congar |
125 |
130.3 |
7.2 |
137.5 |
18/3.05 |
1/3.05 |
3.05 |
15.25 |
361 |
58 |
419 |
29.8 |
0.2189 |
Tiger |
125 |
131.1 |
30.6 |
161.7 |
30/2.36 |
7/2.36 |
7.08 |
16.52 |
365 |
237 |
602 |
58 |
0.2202 |
Wolf |
150 |
158.1 |
36.8 |
194.9 |
30/2.59 |
7/2.59 |
7.77 |
18.13 |
441 |
285 |
726 |
69.2 |
0.1828 |
Dingo |
150 |
158.7 |
8.8 |
167.5 |
18/3.35 |
1/3.35 |
3.35 |
16.75 |
437 |
69 |
506 |
35.7 |
0.1815 |
Lynx |
175 |
183.4 |
42.8 |
226.2 |
30/2.79 |
7/2.79 |
8.37 |
19.53 |
507 |
335 |
842 |
79.8 |
0.1576 |
Caracal |
175 |
184.3 |
10.2 |
194.5 |
18/3.61 |
1/3.61 |
3.61 |
18.05 |
507 |
80 |
587 |
41.1 |
0.1563 |
Panther |
200 |
212.1 |
49.4 |
261.5 |
30/3.00 |
7/3.00 |
9.0 |
21.0 |
586 |
388 |
974 |
92.25 |
0.1363 |
Jaguar |
200 |
210.6 |
11.7 |
222.3 |
18/3.86 |
1/3.86 |
3.86 |
19.3 |
580 |
91 |
671 |
46.55 |
0.1367 |
Lion |
225 |
238.5 |
55.7 |
294.2 |
30/3.18 |
7/3.18 |
9.54 |
22.26 |
657 |
438 |
1095 |
100.6 |
0.1212 |
Bear |
250 |
264 |
61.6 |
325.6 |
30/3.35 |
7/3.35 |
10.05 |
23.45 |
728 |
485 |
1213 |
111.1 |
0.1090 |
Goat |
300 |
324.3 |
75.7 |
400 |
30/3.71 |
7/3.71 |
11.13 |
25.79 |
894 |
595 |
1489 |
135.7 |
0.0891 |
Sheep |
350 |
374.1 |
87.3 |
461.4 |
30/3.99 |
7/3.99 |
11.97 |
27.93 |
1031 |
687 |
1718 |
155.9 |
0.0770 |
Antilope |
350 |
373.1 |
48.4 |
421.5 |
54/2.97 |
7/2.97 |
8.91 |
26.73 |
1040 |
371 |
1411 |
118.2 |
0.0772 |
Bizon |
350 |
381.8 |
49.5 |
431.3 |
54/3.00 |
7/3.00 |
9.0 |
27.0 |
1064 |
380 |
1444 |
120.9 |
0.7573 |
Zebra |
400 |
428.9 |
55.6 |
484.5 |
54/3.18 |
7/3.18 |
9.54 |
28.62 |
1185 |
436 |
1621 |
131.9 |
0.0674 |
BS EN 50182
Code |
Stranding |
Sectional Area |
Overall Diameter |
Weight |
Breakign Load |
Electrical Resistance @20o |
Current Rating* |
AL |
Steel |
AL |
Steel |
Total |
|
No.×mm |
No.×mm |
mm2 |
mm2 |
mm2 |
mm |
Kg/Km |
KN |
Ω/Km |
A |
Mole |
6/1.50 |
1/1.50 |
10.6 |
1.77 |
12.4 |
4.5 |
42.8 |
4.14 |
2.7027 |
66 |
Squirrel |
6/2.11 |
1/2.11 |
21 |
3.5 |
24.5 |
6.33 |
84.7 |
7.87 |
1.3659 |
101 |
Fox |
6/2.79 |
1/2.79 |
36.7 |
6.11 |
42.8 |
8.37 |
148.1 |
13.21 |
0.7812 |
142 |
Mink |
6/3.66 |
1/3.66 |
63.1 |
10.5 |
73.6 |
10.98 |
254.9 |
21.67 |
0.454 |
199 |
Skunk |
12/2.59 |
7/2.59 |
63.2 |
36.9 |
100.1 |
12.95 |
463 |
52.79 |
0.4568 |
206 |
Beaver |
6/3.99 |
1/3.99 |
75 |
12.5 |
87.5 |
11.97 |
302.9 |
25.76 |
0.382 |
221 |
Racoon |
6/4.09 |
1/4.09 |
78.8 |
13.1 |
91.9 |
12.27 |
318.3 |
27.06 |
0.3635 |
228 |
Otter |
6/4.22 |
1/4.22 |
83.9 |
14 |
97.9 |
12.66 |
338.8 |
28.81 |
0.3415 |
237 |
Cat |
6/4.50 |
1/4.50 |
95.4 |
15.9 |
111.3 |
13.5 |
385.3 |
32.76 |
0.3003 |
256 |
Hare |
6/4.72 |
1/4.72 |
105 |
17.5 |
122.5 |
14.16 |
423.8 |
36.04 |
0.273 |
271 |
Coyote |
26/2.54 |
7/1.91 |
131.7 |
20.1 |
151.8 |
15.89 |
520.7 |
45.86 |
0.2192 |
311 |
Cougar |
18/3.05 |
1/3.05 |
131.5 |
7.31 |
138.8 |
15.25 |
418.8 |
29.74 |
0.2188 |
308 |
Tiger |
30/2.36 |
7/2.36 |
131.2 |
30.6 |
161.8 |
16.52 |
602.2 |
57.87 |
0.2202 |
313 |
Lion |
30/3.18 |
7/3.18 |
238.3 |
55.6 |
293.9 |
22.26 |
1093.4 |
100.47 |
0.1213 |
450 |
Bear |
30/3.35 |
7/3.35 |
264.4 |
61.7 |
326.1 |
23.45 |
1213.4 |
111.5 |
0.1093 |
480 |
Goat |
30/3.71 |
7/3.71 |
324.3 |
75.7 |
400 |
25.97 |
1488.2 |
135.13 |
0.0891 |
543 |
Sheep |
30/3.99 |
7/3.99 |
375.1 |
87.5 |
462.6 |
27.93 |
1721.3 |
156.3 |
0.0771 |
592 |
Antelope |
54/2.97 |
7/2.97 |
374.1 |
48.5 |
422.6 |
26.73 |
1413.8 |
118.88 |
0.0773 |
586 |
Bison |
54/3.00 |
7/3.00 |
381.7 |
49.5 |
431.2 |
27 |
1442.5 |
121.3 |
0.0758 |
593 |
Deer |
30/4.27 |
7/4.27 |
429.6 |
100.2 |
529.8 |
29.89 |
1971.4 |
179 |
0.0673 |
643 |
Elk |
30/4.50 |
7/4.50 |
477.1 |
111.3 |
588.4 |
31.5 |
2189.5 |
198.8 |
0.0606 |
684 |
Camel |
54/3.35 |
7/3.35 |
476 |
61.7 |
537.7 |
30.15 |
1798.8 |
146.4 |
0.0608 |
677 |
Moose |
54/3.53 |
7/3.53 |
528.5 |
68.5 |
597 |
31.77 |
1997.3 |
159.92 |
0.0547 |
720 |
Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
IEC 61089
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Breakign Load |
Electrical Resistance @20o |
Current Rating* |
AL |
Steel |
Total |
AL |
Steel |
|
mm2 |
mm2 |
mm2 |
No.×mm |
No.×mm |
mm |
Kg/Km |
KN |
Ω/Km |
A |
16 |
16 |
2.67 |
18.7 |
6/1.84 |
1/1.84 |
5.52 |
64.6 |
6.08 |
1.7934 |
85 |
25 |
25 |
4.17 |
29.2 |
6/2.30 |
1/2.30 |
6.9 |
100.9 |
9.13 |
1.1478 |
112 |
40 |
40 |
6.67 |
46.7 |
6/2.91 |
1/2.91 |
8.73 |
161.5 |
14.4 |
0.7174 |
150 |
63 |
63 |
10.5 |
73.5 |
6/3.66 |
1/3.66 |
10.98 |
254.4 |
21.63 |
0.4555 |
198 |
100 |
100 |
16.7 |
117 |
6/4.61 |
1/4.61 |
13.83 |
403.8 |
34.33 |
0.2869 |
263 |
125 |
125 |
6.94 |
132 |
18/2.97 |
1/2.97 |
14.85 |
397.9 |
29.17 |
0.2304 |
299 |
125 |
125 |
20.4 |
145 |
26/2.47 |
7/1.92 |
15.64 |
503.9 |
45.69 |
0.231 |
302 |
160 |
160 |
8.89 |
169 |
18/3.36 |
1/3.36 |
16.8 |
509.3 |
36.18 |
0.18 |
347 |
160 |
160 |
26.1 |
186 |
26/2.80 |
7/2.18 |
17.74 |
644.9 |
57.69 |
0.1805 |
351 |
200 |
200 |
11.1 |
211 |
18/3.76 |
1/3.76 |
18.8 |
636.7 |
44.22 |
0.144 |
398 |
200 |
200 |
32.6 |
233 |
26/3.13 |
7/2.43 |
19.81 |
806.2 |
70.13 |
0.1444 |
402 |
250 |
250 |
24.6 |
275 |
22/3.80 |
7/2.11 |
21.53 |
880.6 |
68.72 |
0.1154 |
458 |
250 |
250 |
40.7 |
291 |
26/3.50 |
7/2.72 |
22.16 |
1007.7 |
87.67 |
0.1155 |
461 |
315 |
315 |
21.8 |
337 |
45/2.99 |
7/1.99 |
23.91 |
1039.6 |
79.03 |
0.0917 |
526 |
315 |
315 |
51.3 |
366 |
26/3.93 |
7/3.05 |
24.87 |
1269.7 |
106.83 |
0.0917 |
530 |
400 |
400 |
27.7 |
428 |
45/3.36 |
7/2.24 |
26.88 |
1320.1 |
98.36 |
0.0722 |
607 |
400 |
400 |
51.9 |
452 |
54/3.07 |
7/3.07 |
27.63 |
1510.3 |
123.04 |
0.0723 |
610 |
450 |
450 |
31.1 |
481 |
45/3.57 |
7/2.38 |
28.56 |
1485.2 |
107.47 |
0.0642 |
651 |
450 |
450 |
58.3 |
508 |
54/3.26 |
7/3.26 |
29.34 |
1699.1 |
138.42 |
0.0643 |
655 |
500 |
500 |
34.6 |
535 |
45/3.76 |
7/2.51 |
30.09 |
1650.2 |
119.41 |
0.0578 |
693 |
500 |
500 |
64.8 |
565 |
54/3.43 |
7/3.43 |
30.87 |
1887.9 |
153.8 |
0.0578 |
697 |
560 |
560 |
38.7 |
599 |
45/3.98 |
7/2.65 |
31.83 |
1848.2 |
133.74 |
0.0516 |
741 |
560* |
560 |
70.9 |
631 |
54/3.63 |
19/2.18 |
32.68 |
2103.4 |
172.59 |
0.0516 |
745 |
630 |
630 |
43.6 |
674 |
45/4.22 |
7/2.81 |
33.75 |
2079.2 |
150.45 |
0.0459 |
794 |
630* |
630 |
79.8 |
710 |
54/3.85 |
19/2.31 |
34.65 |
2366.3 |
191.77 |
0.0459 |
798 |
710 |
710 |
49.1 |
759 |
45/4.48 |
7/2.99 |
35.85 |
2343.2 |
169.56 |
0.0407 |
851 |
710* |
710 |
89.9 |
800 |
54/4.09 |
19/2.45 |
36.79 |
2666.8 |
216.12 |
0.0407 |
856 |
800* |
800 |
34.6 |
835 |
72/3.76 |
7/2.51 |
37.61 |
2480.2 |
167.41 |
0.0361 |
910 |
800* |
800 |
66.7 |
867 |
84/3.48 |
7/3.48 |
38.28 |
2732.7 |
205.33 |
0.0362 |
912 |
800* |
800 |
101 |
901 |
54/4.34 |
19/2.61 |
39.09 |
3004.9 |
243.52 |
0.0362 |
916 |
900* |
900 |
38.9 |
939 |
72/3.99 |
7/2.66 |
39.9 |
2790.2 |
188.33 |
0.0321 |
972 |
900* |
900 |
75 |
975 |
84/3.69 |
7/3.69 |
40.59 |
3074.2 |
226.5 |
0.0322 |
974 |
1000* |
1000 |
43.2 |
1043 |
72/4.21 |
7/2.80 |
42.08 |
3100.3 |
209.26 |
0.0289 |
1031 |
1120* |
1120 |
47.3 |
1167 |
72/4.45 |
19/1.78 |
44.5 |
3464.9 |
234.53 |
0.0258 |
1096 |
1120* |
1120 |
91.2 |
1211 |
84/4.12 |
19/2.47 |
45.31 |
3811.5 |
283.17 |
0.0258 |
1100 |
1250* |
1250 |
102 |
1352 |
84/4.35 |
19/2.61 |
47.85 |
4253.9 |
316.04 |
0.0232 |
1165 |
1250* |
1250 |
52.8 |
1303 |
72/4.70 |
19/1.88 |
47 |
3867.1 |
261.75 |
0.0231 |
1163 |
* The items marked with “*” are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
ASTM B 232/B 232M
Code |
Stranding |
Stranding |
Overall Diameter |
Weight |
Breakign Load |
Electrical Resistance @20o |
Current Rating* |
AL |
Steel |
AL |
Steel |
Total |
|
No.×mm |
No.×mm |
mm2 |
mm2 |
mm2 |
mm |
Kg/Km |
KN |
Ω/Km |
A |
Turkey |
6/1.68 |
1/1.68 |
13.3 |
2.22 |
15.52 |
5.04 |
53.6 |
4.98 |
2.1499 |
76 |
Swan |
6/2.12 |
1/2.12 |
6.36 |
21.18 |
24.71 |
3.53 |
85.3 |
7.83 |
1.3501 |
101 |
Swanate |
7/1.96 |
1/2.61 |
21.12 |
5.35 |
26.47 |
6.53 |
99.6 |
9.79 |
1.3539 |
102 |
Sparrow |
6/2.67 |
1/2.67 |
33.59 |
5.6 |
39.19 |
8.01 |
135.7 |
11.92 |
0.8512 |
135 |
Sparate |
7/2.47 |
1/3.30 |
33.54 |
8.55 |
42.09 |
8.24 |
158.7 |
15.08 |
0.8525 |
135 |
Robin |
6/3.00 |
1/3.00 |
42.41 |
7.0 |
49.48 |
9 |
171.1 |
14.86 |
0.6742 |
156 |
Raven |
6/3.37 |
1/3.37 |
53.52 |
8.92 |
62.44 |
10.11 |
216.1 |
18.33 |
0.5343 |
180 |
Quail |
6/3.78 |
1/3.78 |
67.33 |
11.22 |
78.55 |
11.34 |
272 |
22.46 |
0.4247 |
207 |
Pigeon |
6/4.25 |
1/4.25 |
85.12 |
14.19 |
99.31 |
12.75 |
343 |
28.02 |
0.3359 |
239 |
Penguin |
6/4.77 |
1/4.77 |
107.22 |
17.8 |
125.09 |
14.31 |
432.7 |
35.36 |
0.2667 |
275 |
Waxwing |
18/3.09 |
1/3.09 |
134.98 |
7.5 |
142.48 |
15.45 |
430.2 |
29.8 |
0.2129 |
313 |
Partridge |
26/2.57 |
7/2.00 |
134.87 |
21.99 |
156.86 |
16.28 |
545.9 |
47.15 |
0.2141 |
316 |
Ostrich |
26/2.73 |
7/2.12 |
152.19 |
24.71 |
176.9 |
17.28 |
613.4 |
53.38 |
0.1897 |
341 |
Merlin |
18/3.47 |
1/3.47 |
170.22 |
9.46 |
179.68 |
17.35 |
542.8 |
37.36 |
0.1688 |
361 |
Linnet |
26/2.89 |
7/2.25 |
170.55 |
27.83 |
198.38 |
18.31 |
687.5 |
59.16 |
0.1693 |
365 |
Oriole |
30/2.69 |
7/2.69 |
170.5 |
39.78 |
210.28 |
18.83 |
783.3 |
72.06 |
0.1698 |
367 |
Chickadee |
18/3.77 |
1/3.77 |
200.93 |
11.16 |
212.09 |
18.85 |
641.3 |
43.15 |
0.143 |
400 |
Brant |
24/3.27 |
7/2.18 |
201.56 |
26.13 |
227.69 |
19.62 |
761 |
61.83 |
0.1433 |
403 |
Ibis |
26/3.14 |
7/2.44 |
201.34 |
32.73 |
234.07 |
19.88 |
812.4 |
68.05 |
0.1434 |
404 |
Lark |
30/2.92 |
7/2.92 |
200.9 |
46.88 |
247.78 |
20.44 |
925.2 |
84.07 |
0.1441 |
406 |
Pelican |
18/4.14 |
1/4.14 |
242.31 |
13.46 |
255.77 |
20.7 |
769.7 |
51.15 |
0.1186 |
448 |
Flicker |
24/3.58 |
7/2.39 |
241.58 |
31.4 |
272.98 |
21.49 |
913.5 |
72.06 |
0.1195 |
450 |
Hawk |
26/3.44 |
7/2.67 |
241.65 |
39.19 |
280.84 |
21.77 |
975.1 |
81.84 |
0.1195 |
451 |
Hen |
30/3.20 |
7/3.20 |
241.27 |
56.3 |
297.57 |
22.4 |
1110.6 |
98.3 |
0.12 |
453 |
Osprey |
18/4.47 |
1/4.47 |
282.47 |
15.69 |
298.16 |
22.35 |
897.7 |
59.6 |
0.1017 |
492 |
Parakeet |
24/3.87 |
7/2.58 |
282.31 |
36.6 |
318.91 |
23.22 |
1065.6 |
83.18 |
0.1023 |
495 |
Dove |
26/3.72 |
7/2.89 |
282.59 |
45.92 |
328.51 |
23.55 |
1138.6 |
94.3 |
0.1022 |
497 |
Eagle |
30/3.46 |
7/3.46 |
282.07 |
65.82 |
347.89 |
24.22 |
1295.6 |
114.76 |
0.1026 |
499 |
Peacock |
24/4.03 |
7/2.69 |
306.13 |
39.78 |
345.91 |
24.19 |
1158.9 |
90.74 |
0.0943 |
520 |
Squab |
26/3.87 |
7/3.01 |
305.83 |
49.81 |
355.64 |
24.51 |
1237 |
101.41 |
0.0944 |
521 |
Wood Duck |
30/3.61 |
7/3.61 |
307.06 |
71.65 |
378.71 |
25.27 |
1408.4 |
121.43 |
0.0943 |
525 |
Teal* |
30/3.61 |
19/2.16 |
307.06 |
69.62 |
376.68 |
25.24 |
1396.6 |
124.54 |
0.0943 |
525 |
Kingbird |
18/4.78 |
1/4.78 |
323.01 |
17.95 |
340.9 |
23.9 |
61026.6 |
68.05 |
0.089 |
533 |
Swift |
36/3.38 |
1 /3.38 |
323.02 |
8.97 |
331.99 |
23.66 |
956.5 |
60.05 |
0.089 |
532 |
Rook |
24/4.14 |
7/2.76 |
323.07 |
41.88 |
364.95 |
24.84 |
1217.5 |
95.19 |
0.0894 |
537 |
Grosbeak |
26/3.97 |
7/3.09 |
321.84 |
52.49 |
374.33 |
25.15 |
1300.8 |
104.97 |
0.0897 |
537 |
Scoter |
30/3.70 |
7/3.70 |
322.56 |
75.26 |
397.82 |
25.9 |
1480.7 |
127.66 |
0.0897 |
541 |
Egret* |
30/3.70 |
19/2.22 |
322.56 |
73.54 |
396.1 |
25.9 |
1469 |
130.77 |
0.0897 |
541 |
Flamingo |
24/4.23 |
7/2.82 |
337.27 |
43.72 |
380.99 |
25.38 |
1276.6 |
99.64 |
0.0856 |
551 |
Gannet |
26/4.07 |
7/3.16 |
338.26 |
54.9 |
393.16 |
25.76 |
1363.3 |
110.31 |
0.0854 |
553 |
Stilt |
24/4.39 |
7/2.92 |
363.27 |
46.88 |
410.15 |
26.32 |
1370.4 |
107.2 |
0.0795 |
576 |
Starling |
26/4.21 |
7/3.28 |
361.93 |
59.15 |
421.08 |
26.68 |
1463.7 |
118.32 |
0.0798 |
577 |
Redwing* |
30/3.92 |
19/2.35 |
362.06 |
82.41 |
444.47 |
27.43 |
1650.6 |
143.23 |
0.0799 |
580 |
Coot |
36/3.77 |
1/3.77 |
401.86 |
11.16 |
413.02 |
26.39 |
1195.8 |
73.39 |
0.0715 |
607 |
Tern |
45/3.38 |
7/2.25 |
403.77 |
27.83 |
431.6 |
26.39 |
1331.8 |
94.3 |
0.0715 |
610 |
Condor |
54/3.08 |
7/3.08 |
402.33 |
52.15 |
454.48 |
27.72 |
1520.7 |
118.32 |
0.0718 |
612 |
Cuckoo |
24/4.62 |
7/3.08 |
402.33 |
52.15 |
454.48 |
27.72 |
1522.2 |
117.43 |
0.0718 |
612 |
Drake |
26/4.44 |
7/3.45 |
402.56 |
65.44 |
468 |
28.11 |
1626.4 |
131.66 |
0.0717 |
615 |
Mallard* |
26/4.44 |
7/3.45 |
403.84 |
91.78 |
495.62 |
28.96 |
1836 |
159.24 |
0.0717 |
619 |
Ruddy |
45/3.59 |
7/2.40 |
455.5 |
31.67 |
487.17 |
28.98 |
1507.3 |
104.53 |
0.0634 |
656 |
Canary |
54/3.28 |
7/3.28 |
456.28 |
59.15 |
517.38 |
29.61 |
1723.1 |
134.33 |
0.0633 |
660 |
Catbird |
36/4.14 |
1/4.14 |
484.61 |
13.46 |
498.07 |
28.98 |
1434.4 |
86.74 |
0.0593 |
679 |
Rail |
45/3.70 |
7/2.47 |
483.84 |
33.54 |
517.38 |
29.61 |
1598.1 |
110.76 |
0.0597 |
680 |
Cardinal |
54/3.38 |
7/3.38 |
484.53 |
62.81 |
547.34 |
30.42 |
1825.9 |
142.34 |
0.0596 |
685 |
Tanager |
36/4.30 |
1/4.30 |
522.79 |
14.52 |
537.31 |
30.1 |
1553.5 |
93.85 |
0.055 |
710 |
Orotlan |
45/3.85 |
7/2.57 |
523.87 |
36.31 |
560.18 |
30.81 |
1730.5 |
118.32 |
0.0551 |
713 |
Curlew |
54/3.51 |
7/3.51 |
522.51 |
67.73 |
590.24 |
31.59 |
1977.6 |
153.9 |
0.0553 |
716 |
Bluejay |
45/4.00 |
7/2.66 |
565.49 |
38.9 |
604.39 |
31.98 |
1866 |
127.66 |
0.0511 |
745 |
Finch* |
54/3.65 |
19/2.19 |
565.03 |
71.57 |
636.6 |
32.85 |
2127.8 |
164.58 |
0.0514 |
748 |
Bunting |
45/4.14 |
7/2.76 |
605.76 |
41.88 |
647.64 |
33.12 |
1996.9 |
136.55 |
0.0477 |
776 |
Grackle* |
54/3.77 |
19/2.27 |
602.79 |
76.89 |
679.68 |
33.97 |
2278.1 |
176.59 |
0.0481 |
777 |
Skylark |
36/4.78 |
1/4.78 |
646.02 |
17.95 |
663.97 |
33.46 |
1913.6 |
115.65 |
0.0445 |
804 |
Bittern |
45/4.27 |
7/2.85 |
644.4 |
44.66 |
689.06 |
34.17 |
2130.8 |
145.89 |
0.0448 |
805 |
Pheasant* |
54/3.90 |
19/2.34 |
645.08 |
81.71 |
726.79 |
35.1 |
2431.4 |
183.26 |
0.045 |
808 |
Dipper |
45/4.40 |
7/2.93 |
684.24 |
47.2 |
731.44 |
35.19 |
2263.2 |
154.79 |
0.0422 |
834 |
Martin* |
54/4.02 |
19/2.41 |
685.39 |
86.67 |
772.06 |
36.17 |
2581.7 |
194.82 |
0.0423 |
838 |
Bobolink |
45/4.53 |
7/3.02 |
725.27 |
50.14 |
775.41 |
36.24 |
2397.2 |
164.13 |
0.0398 |
862 |
Plover* |
54/4.14 |
19/2.48 |
726.92 |
91.78 |
818.7 |
37.24 |
2734.9 |
206.39 |
0.0399 |
866 |
Nuthatch |
45/4.65 |
7/3.10 |
764.2 |
52.83 |
817.03 |
37.2 |
2529.6 |
171.25 |
0.0378 |
888 |
Parrot* |
54/4.25 |
19/2.55 |
766.06 |
97.03 |
863.09 |
38.25 |
2883.7 |
217.51 |
0.0379 |
892 |
Lapwing |
45/4.78 |
7/3.18 |
807.53 |
55.6 |
863.13 |
38.22 |
2663.5 |
180.14 |
0.0358 |
916 |
Falcon* |
54/4.36 |
19/2.62 |
806.23 |
102.43 |
908.66 |
39.26 |
3038.5 |
229.52 |
0.036 |
919 |
Chukar* |
84/3.70 |
19/2.22 |
903.18 |
73.54 |
976.72 |
40.7 |
3083.1 |
217.51 |
0.0321 |
976 |
Bluebird* |
84/4.07 |
19/2.44 |
1092.84 |
88.84 |
1181.68 |
44.76 |
3731.9 |
256.65 |
0.0266 |
1083 |
Kiwi* |
72/4.41 |
7/2.94 |
1099.76 |
47.52 |
1147.28 |
44.1 |
3423.9 |
215.28 |
0.0264 |
1083 |
Thrasher* |
76/4.43 |
19/2.07 |
1171.42 |
63.94 |
1235.36 |
45.79 |
3754.2 |
243.75 |
0.0248 |
1122 |
Grouse** |
8/2.54 |
1/4.24 |
40.54 |
14.12 |
54.66 |
9.32 |
221.4 |
21.75 |
0.7089 |
153 |
Petrel** |
12/2.34 |
7/2.34 |
51.61 |
30.1 |
81.71 |
11.7 |
377.7 |
42.08 |
0.5595 |
181 |
Minorca** |
12/2.44 |
7/2.44 |
56.11 |
32.73 |
88.84 |
12.2 |
411.1 |
45.81 |
0.5146 |
191 |
Leghorn** |
12/2.69 |
7/2.69 |
68.2 |
39.78 |
107.98 |
13.45 |
499.2 |
55.16 |
0.4234 |
215 |
Guinea** |
12/2.92 |
7/2.92 |
80.36 |
46.88 |
127.24 |
14.6 |
589.7 |
64.94 |
0.3593 |
238 |
Dotterel** |
12/3.08 |
7/3.08 |
89.41 |
52.15 |
141.56 |
15.4 |
656.1 |
70.28 |
0.323 |
254 |
Dorking** |
12/3.20 |
7/3.20 |
96.51 |
56.3 |
152.81 |
16 |
707.8 |
75.62 |
0.2992 |
267 |
Cochin** |
12/3.37 |
7/3.37 |
107.04 |
62.44 |
169.48 |
16.85 |
783.9 |
84.07 |
0.2698 |
284 |
Brahma*&** |
12/3.37 |
7/3.37 |
102.79 |
91.78 |
194.57 |
18.12 |
1003.8 |
114.76 |
0.2809 |
283 |
* The items, marked with “*” are not in our current product range and the details are for information only.
**The items, marked with “**” are ACSR Cables with high strength stranding.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
DIN 48204
Nominal Sectional Area |
Sectional Area |
Stranding |
Overall Diameter |
Weight |
Breakign Load |
Electrical Resistance @20o |
Current Rating* |
AL |
Steel |
AL |
Steel |
Total |
AL |
Steel |
mm2 |
mm2 |
mm2 |
mm2 |
mm2 |
No.×mm |
No.×mm |
mm |
Kg/Km |
KN |
Ω/Km |
A |
16 |
2.5 |
15.27 |
2.54 |
17.8 |
6/1.80 |
1/1.80 |
5.4 |
62 |
5.81 |
1.8793 |
83 |
25 |
4 |
23.86 |
3.98 |
27.8 |
6/2.25 |
1/2.25 |
6.8 |
97 |
9.02 |
1.2028 |
109 |
35 |
6 |
34.35 |
5.73 |
40.1 |
6/2.70 |
1/2.70 |
8.1 |
140 |
12.7 |
0.8353 |
136 |
44 |
32 |
43.98 |
31.67 |
75.7 |
14/2.00 |
7/2.40 |
11.2 |
373 |
45.46 |
0.6573 |
166 |
50 |
8 |
48.25 |
8.04 |
56.3 |
6/3.20 |
1/3.20 |
9.6 |
196 |
17.18 |
0.5946 |
168 |
50 |
30 |
51.17 |
29.85 |
81 |
12/2.33 |
7/2.33 |
11.7 |
378 |
44.28 |
0.5644 |
181 |
70 |
12 |
69.89 |
11.4 |
81.3 |
26/1.85 |
7/1.44 |
11.7 |
284 |
26.31 |
0.413 |
211 |
95 |
15 |
94.39 |
15.33 |
109.7 |
26/2.15 |
7/1.67 |
13.6 |
383 |
35.17 |
0.3058 |
254 |
95 |
55 |
96.51 |
56.3 |
152.8 |
12/3.20 |
7/3.20 |
16 |
714 |
80.2 |
0.2992 |
267 |
105* |
75 |
105.67 |
75.55 |
181.2 |
14/3.10 |
19/2.25 |
17.5 |
899 |
106.69 |
0.2736 |
284 |
120 |
20 |
121.57 |
19.85 |
141.4 |
26/2.44 |
7/1.90 |
15.5 |
494 |
44.94 |
0.2374 |
297 |
120 |
70 |
122.15 |
71.25 |
193.4 |
12/3.60 |
7/3.60 |
18 |
904 |
98.16 |
0.2364 |
308 |
125 |
30 |
127.92 |
29.85 |
157.8 |
30/2.33 |
7/2.33 |
16.3 |
590 |
57.86 |
0.2259 |
308 |
150 |
25 |
148.86 |
24.25 |
173.1 |
26/2.70 |
7/2.10 |
17.1 |
604 |
54.37 |
0.1939 |
336 |
170 |
40 |
171.77 |
40.08 |
211.9 |
30/2.70 |
7/2.70 |
18.9 |
794 |
77.01 |
0.1682 |
369 |
185 |
30 |
183.78 |
29.85 |
213.6 |
26/3.00 |
7/2.33 |
19 |
744 |
66.28 |
0.1571 |
382 |
210 |
35 |
209.1 |
34.09 |
243.2 |
26/3.20 |
7/2.49 |
20.3 |
848 |
74.94 |
0.138 |
414 |
210 |
50 |
212.06 |
49.48 |
261.5 |
30/3.00 |
7/3.00 |
21 |
979 |
92.25 |
0.1363 |
420 |
230 |
30 |
230.91 |
29.85 |
260.8 |
24/3.50 |
7/2.33 |
21 |
874 |
73.09 |
0.1249 |
438 |
240 |
40 |
243.05 |
39.49 |
282.5 |
26/3.45 |
7/2.68 |
21.8 |
985 |
86.46 |
0.1188 |
453 |
265 |
35 |
263.66 |
34.09 |
297.8 |
24/3.74 |
7/2.49 |
22.4 |
998 |
82.94 |
0.1094 |
475 |
300 |
50 |
304.26 |
49.48 |
353.7 |
26/3.86 |
7/3.00 |
24.5 |
1233 |
105.09 |
0.0949 |
520 |
305 |
40 |
304.62 |
39.49 |
344.1 |
54/2.68 |
7/2.68 |
24.1 |
1155 |
99.3 |
0.0949 |
518 |
340 |
30 |
339.29 |
29.85 |
369.1 |
48/3.00 |
7/2.33 |
25 |
1174 |
92.56 |
0.0851 |
551 |
380 |
50 |
381.7 |
49.48 |
431.2 |
54/3.00 |
7/3.00 |
27 |
1448 |
120.91 |
0.0757 |
593 |
385 |
35 |
386.04 |
34.09 |
420.1 |
48/3.20 |
7/2.49 |
26.7 |
1336 |
104.31 |
0.0748 |
595 |
435 |
55 |
434.29 |
56.3 |
490.6 |
54/3.20 |
7/3.20 |
28.8 |
1647 |
136.27 |
0.0666 |
641 |
450 |
40 |
448.71 |
39.49 |
488.2 |
48/3.45 |
7/2.68 |
28.7 |
1553 |
120.19 |
0.0644 |
651 |
490 |
65 |
490.28 |
63.55 |
553.8 |
54/3.40 |
7/3.40 |
30.6 |
1860 |
152.85 |
0.059 |
689 |
550 |
70 |
549.65 |
71.25 |
620.9 |
54/3.60 |
7/3.60 |
32.4 |
2085 |
167.42 |
0.0526 |
737 |
560 |
50 |
561.7 |
49.48 |
611.2 |
48/3.86 |
7/3.00 |
32.2 |
1943 |
146.28 |
0.0514 |
744 |
680* |
85 |
678.58 |
85.95 |
764.5 |
54/4.00 |
19/2.40 |
36 |
2564 |
209.99 |
0.0426 |
834 |
* The items marked with “*” are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
JiS C 3110
Nominal Sectional Area |
Sectional Area |
Stranding |
Overall Diameter |
Weight |
Breakign Load |
Electrical Resistance @20o |
AL |
Steel |
Total |
AL |
Steel |
mm2 |
mm2 |
mm2 |
mm2 |
No.×mm |
No.×mm |
mm |
Kg/Km |
KN |
Ω/Km |
25 |
24.9 |
4.2 |
29.1 |
6/2.30 |
1/2.30 |
6.9 |
101 |
8.89 |
1.15 |
32 |
31.9 |
5.3 |
37.2 |
6/2.60 |
1/2.60 |
7.8 |
129 |
11.17 |
0.899 |
58 |
57.7 |
9.6 |
67.3 |
6/3.50 |
1/3.50 |
10.5 |
233 |
19.40 |
0.497 |
95 |
95.4 |
15.9 |
111.3 |
6/4.50 |
1/4.50 |
13.5 |
385 |
31.16 |
0.301 |
120 |
124.7 |
29.1 |
153.8 |
30/2.3 |
7/2.3 |
16.1 |
574 |
54.29 |
0.233 |
160 |
159.3 |
37.2 |
196.5 |
30/2.6 |
7/2.6 |
18.2 |
733 |
68.40 |
0.182 |
200 |
198.2 |
46.2 |
244.4 |
30/2.9 |
7/2.9 |
20.3 |
912 |
84.67 |
0.147 |
240 |
241.2 |
59.3 |
300.5 |
30/3.2 |
7/3.2 |
22.4 |
1110 |
100.06 |
0.120 |
330 |
326.8 |
52.8 |
379.6 |
26/4.0 |
7/3.1 |
25.3 |
1320 |
107.31 |
0.0888 |
410 |
413.4 |
67.3 |
480.7 |
26/4.5 |
7/3.5 |
28.5 |
1673 |
136.32 |
0.0702 |
520 |
519.5 |
67.3 |
586.8 |
54/3.5 |
7/3.5 |
31.2 |
1969 |
152.88 |
0.0559 |
610 |
612.4 |
79.4 |
691.8 |
54/3.8 |
7/3.8 |
34.2 |
2320 |
179.83 |
0.0474 |
810 |
814.5 |
56.3 |
870.8 |
45/3.8 |
7/3.2 |
38.4 |
2700 |
181.10 |
0.0356 |
Technical Data
Numbers of Wires |
Final Modules of Elasticity |
Coeficient of linear Expansion |
AL |
Steel |
Kg/mm2 |
lb/in2 |
1/Co |
1/Fo |
6 |
1 |
81 |
11.5 x106 |
19.1 x10-6 |
10.6 x10-6 |
6 |
7 |
77 |
11.0 x106 |
19.8 x10-6 |
11.0 x10-6 |
12 |
7 |
107 |
15.2 x106 |
15.3 x10-6 |
8.5 x10-6 |
18 |
1 |
67 |
9.5 x106 |
21.2 x10-6 |
11.8 x10-6 |
24 |
7 |
74 |
10.5 x106 |
19.6 x10-6 |
10.9 x10-6 |
26 |
7 |
77 |
10.9 x106 |
18.9 x10-6 |
10.5 x10-6 |
28 |
7 |
79 |
11.2 x106 |
18.4 x10-6 |
10.2 x10-6 |
30 |
7 |
82 |
11.6 x106 |
17.8 x10-6 |
9.9 x10-6 |
30 |
19 |
80 |
11.4 x106 |
18.0 x10-6 |
10.0 x10-6 |
32 |
19 |
82 |
11.7 x106 |
17.5 x10-6 |
9.7 x10-6 |
54 |
7 |
70 |
9.9 x106 |
19.3 x10-6 |
10.7 x10-6 |
54 |
19 |
68 |
9.7 x106 |
19.4 x10-6 |
10.8 x10-6 |
