  HomeProuductsThermocouple Cables

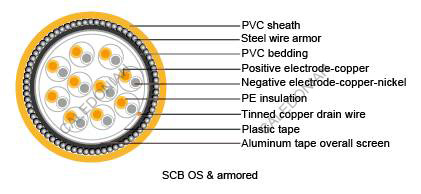

Single pair/multipair Overall Screen with Armor


Applications

These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial plants.

Specification

  • Conductor: Solid
    Type applicable: KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
    Insulation: PVC, PE, XLPE or LSZH thermoplastic material
    Wrapping: At least 1 layer of plastic tape
    Overall screen: 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm2
    Bedding: PE, PVC or LSZH thermoplastic material
    Armor: Galvanized round steel wires
    Outer sheath: PVC or LSZH thermoplastic material
    Color code: According to IEC 60584-3
    Flame retardancy: IEC 60332-1
    Flame propagation: IEC 60332 cat. C
    Temperature range: -30°C up to 70°C during operation. -5°C up to 50°C during installation.
  Single pair/multipair Overall Screen Thermocouple Cables

0.5 mm2

Conductor Size
 No. of Pairs Insulation Thickness (mm) Bedding Thickness (mm) Diameter of Armor Wire (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight* (kg/km)
0.5 1 0.4 0.8 0.9 1.3 9.6 206
0.5 2 0.4 0.8 0.9 1.4 12.1 295
0.5 4 0.4 0.9 0.9 1.4 13.4 374
0.5 6 0.4 1.1 0.9 1.4 15.4 480
0.5 8 0.4 1.1 0.9 1.5 16.3 546
0.5 10 0.4 1.2 0.9 1.5 17.9 656
0.5 12 0.4 1.2 0.9 1.5 18.5 703
0.5 16 0.4 1.2 1.25 1.6 21.1 975
0.5 20 0.4 1.2 1.25 1.6 22.5 1093
0.5 24 0.4 1.3 1.25 1.7 24.3 1285

?0.8 mm2

Conductor Size
 No. of Pairs Insulation Thickness (mm) Bedding Thickness (mm) Diameter of Armor Wire (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight* (kg/km)
0.8 1 0.4 0.8 0.9 1.3 10.0 227
0.8 2 0.4 0.9 0.9 1.4 13.0 343
0.8 4 0.4 0.9 0.9 1.4 14.3 431
0.8 6 0.4 1.1 0.9 1.5 16.7 567
0.8 8 0.4 1.2 0.9 1.5 17.6 657
0.8 10 0.4 1.2 0.9 1.6 19.4 788
0.8 12 0.4 1.2 1.25 1.6 20.8 999
0.8 16 0.4 1.2 1.25 1.7 22.9 1175
0.8 20 0.4 1.3 1.25 1.7 24.8 1347
0.8 24 0.4 1.3 1.25 1.7 26.3 1556

1.0 mm2

Conductor Size
 No. of Pairs Insulation Thickness (mm) Bedding Thickness (mm) Diameter of Armor Wire (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight* (kg/km)
1.0 1 0.4 0.8 0.9 1.3 10.3 240
1.0 2 0.4 0.9 0.9 1.4 13.4 366
1.0 4 0.4 1.1 0.9 1.4 15.1 489
1.0 6 0.4 1.2 0.9 1.5 17.4 629
1.0 8 0.4 1.2 0.9 1.5 18.2 720
1.0 10 0.4 1.2 1.25 1.6 20.9 1016
1.0 12 0.4 1.2 1.25 1.6 21.5 1094
1.0 16 0.4 1.3 1.25 1.7 24.0 1312
1.0 20 0.4 1.3 1.25 1.7 25.7 1490
1.0 24 0.4 1.3 1.25 1.7 27.3 1727

1.3 mm2


Conductor Size
 No. of Pairs Insulation Thickness (mm) Bedding Thickness (mm) Diameter of Armor Wire (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight* (kg/km)
1.3 1 0.4 0.8 0.9 1.3 10.6 258
1.3 2 0.4 0.9 0.9 1.4 14.6 399
1.3 4 0.4 1.1 0.9 1.5 16.8 546
1.3 6 0.4 1.2 0.9 1.5 19.3 701
1.3 8 0.4 1.2 0.9 1.6 20.4 817
1.3 10 0.4 1.2 1.25 1.6 23.2 1136
1.3 12 0.4 1.2 1.25 1.7 24.2 1240
1.3 16 0.4 1.3 1.25 1.7 26.8 1484
1.3 20 0.4 1.3 1.25 1.7 28.9 1697
1.3 24 0.4 1.5 1.25 1.8 31.5 2025

1.5 mm2

Conductor Size No. of Pairs Insulation Thickness (mm) Bedding Thickness (mm) Diameter of Armor Wire (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight* (kg/km)
1.5 1 0.5 0.8 0.9 1.3 11.2 284
1.5 2 0.5 1.1 0.9 1.4 16.1 467
1.5 4 0.5 1.2 0.9 1.5 18.3 627
1.5 6 0.5 1.2 0.9 1.6 21.2 802
1.5 8 0.5 1.2 1.25 1.6 22.9 1082
1.5 10 0.5 1.3 1.25 1.7 25.7 1319
1.5 12 0.5 1.3 1.25 1.7 26.6 1430
1.5 16 0.5 1.3 1.25 1.7 29.3 1697
1.5 20 0.5 1.5 1.25 1.8 32.4 2000
1.5 24 0.5 1.5 1.6 1.9 35.5 2598

*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
