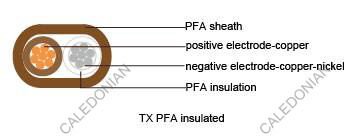

Flat Single Pair PFA Insulated

Applications

These cables are used with thermocouples for temperature measurements.

Specification

  • Conductor: Solid or stranded. Material is according to thermocouple type.
    Insulation: PFA
    Outer sheath: PFA or glass braid
    Construction: Flat
    Color code: According to IEC 60584-3
  Flat Single Pair PFA Insulated Thermocouple Cables

K Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
40 (0.08) PFA Glass Braid 260 0.7 x 0.9 3.4
36 (0.13) PFA Glass Braid 260 0.7 x 1.0 3.6
30 (0.25) PFA Glass Braid 260 0.9 x 1.2 4.5

K Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
40 (0.08) PFA PFA 260 0.4 x 0.7 3.4
36 (0.13) PFA PFA 260 0.5 x 0.8 3.6
30 (0.25) PFA PFA 260 0.6 x 1.0 4.0
24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

E Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
40 (0.08) PFA PFA 260 0.4 x 0.7 3.4
36 (0.13) PFA PFA 260 0.5 x 0.8 3.6
30 (0.25) PFA PFA 260 0.6 x 1.0 4.0
24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

J Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
40 (0.08) PFA PFA 260 0.4 x 0.7 3.4
36 (0.13) PFA PFA 260 0.5 x 0.8 3.6
30 (0.25) PFA PFA 260 0.6 x 1.0 4.0
24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

T Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
40 (0.08) PFA PFA 150 0.4 x 0.7 3.4
36 (0.13) PFA PFA 150 0.5 x 0.8 3.6
30 (0.25) PFA PFA 150 0.6 x 1.0 4.0
24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

N Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
30 (0.25) PFA PFA 260 0.6 x 1.0 1.7
24 (0.51) PFA PFA 260 1.4 x 2.4 6.7
20 (0.81) PFA PFA 260 1.7 x 3.0 10.0
