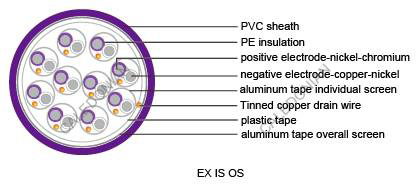

Multipair Individual/Overall Screen
Applications
These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial plants.
Specification
- Conductor: Solid
Type applicable: KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
Insulation: PVC, PE, XLPE or LSZH thermoplastic material
Individual screen: 24 μm aluminium / PETP tape over solid tinned copper drain wire, 0.6 mm
Wrapping: At least 1 layer of plastic tape
Overall screen: 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm2
Outer sheath: PVC or LSZH thermoplastic material
Color code: According to IEC 60584-3
Flame retardancy: IEC 60332-1
Flame propagation: IEC 60332 cat. C
Temperature range: -30°C up to 70°C during operation. -5°C up to 50°C during installation.
0.5 mm2
Conductor Size (mm2) |
No. of Pairs | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
---|---|---|---|---|---|
0.5 | 2 | 0.4 | 1.0 | 9.1 | 83 |
0.5 | 4 | 0.4 | 1.0 | 10.4 | 132 |
0.5 | 6 | 0.4 | 1.2 | 12.8 | 196 |
0.5 | 8 | 0.4 | 1.2 | 13.6 | 244 |
0.5 | 10 | 0.4 | 1.2 | 15.3 | 300 |
0.5 | 12 | 0.4 | 1.2 | 16.0 | 346 |
0.5 | 16 | 0.4 | 1.4 | 18.5 | 459 |
0.5 | 20 | 0.4 | 1.4 | 20.3 | 555 |
0.5 | 24 | 0.4 | 1.4 | 21.9 | 659 |
?0.8 mm2
Conductor Size (mm2) |
No. of Pairs | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
---|---|---|---|---|---|
0.8 | 2 | 0.4 | 1.0 | 9.8 | 102 |
0.8 | 4 | 0.4 | 1.0 | 11.3 | 167 |
0.8 | 6 | 0.4 | 1.2 | 13.9 | 247 |
0.8 | 8 | 0.4 | 1.2 | 14.7 | 312 |
0.8 | 10 | 0.4 | 1.2 | 16.7 | 384 |
0.8 | 12 | 0.4 | 1.4 | 17.9 | 462 |
0.8 | 16 | 0.4 | 1.4 | 20.1 | 591 |
0.8 | 20 | 0.4 | 1.4 | 22.1 | 718 |
0.8 | 24 | 0.4 | 1.6 | 24.4 | 878 |
1.0 mm2
Conductor Size (mm2) |
No. of Pairs | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
---|---|---|---|---|---|
1.0 | 2 | 0.4 | 1.0 | 10.2 | 114 |
1.0 | 4 | 0.4 | 1.0 | 11.7 | 189 |
1.0 | 6 | 0.4 | 1.2 | 14.4 | 281 |
1.0 | 8 | 0.4 | 1.2 | 15.3 | 355 |
1.0 | 10 | 0.4 | 1.2 | 17.4 | 439 |
1.0 | 12 | 0.4 | 1.4 | 18.6 | 527 |
1.0 | 16 | 0.4 | 1.4 | 21.0 | 677 |
1.0 | 20 | 0.4 | 1.6 | 23.5 | 846 |
1.0 | 24 | 0.4 | 1.6 | 25.5 | 1006 |
1.3 mm2
Conductor Size (mm2) |
No. of Pairs | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
---|---|---|---|---|---|
1.3 | 2 | 0.4 | 1.0 | 11.5 | 131 |
1.3 | 4 | 0.4 | 1.2 | 13.8 | 234 |
1.3 | 6 | 0.4 | 1.2 | 16.5 | 330 |
1.3 | 8 | 0.4 | 1.2 | 17.6 | 420 |
1.3 | 10 | 0.4 | 1.4 | 20.4 | 537 |
1.3 | 12 | 0.4 | 1.4 | 21.3 | 624 |
1.3 | 16 | 0.4 | 1.4 | 24.1 | 804 |
1.3 | 20 | 0.4 | 1.6 | 27.1 | 1004 |
1.3 | 24 | 0.4 | 1.6 | 29.3 | 1196 |
1.5 mm2
Conductor Size (mm2) |
No. of Pairs | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
---|---|---|---|---|---|
1.5 | 2 | 0.5 | 1.0 | 12.6 | 151 |
1.5 | 4 | 0.5 | 1.2 | 15.1 | 270 |
1.5 | 6 | 0.5 | 1.2 | 18.1 | 382 |
1.5 | 8 | 0.5 | 1.4 | 19.7 | 504 |
1.5 | 10 | 0.5 | 1.4 | 22.4 | 623 |
1.5 | 12 | 0.5 | 1.4 | 23.5 | 724 |
1.5 | 16 | 0.5 | 1.6 | 27.1 | 958 |
1.5 | 20 | 0.5 | 1.6 | 29.9 | 1168 |
1.5 | 24 | 0.5 | 1.6 | 32.8 | 1392 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
