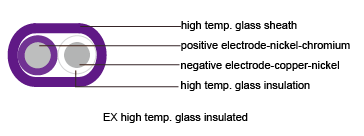

?Flat Single Pair High Temp. Glass Insulated

Applications

These cables are used with thermocouples for temperature measurements.

Specification

  • Conductor: Solid. Material is according to thermocouple type.
    Insulation: High Temp. glass
    Outer sheath: High Temp. glass
    Construction: Flat
    Color code: According to IEC 60584-3
Flat Single Pair High Temp. Glass Insulated Thermocouple Cables

K Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) High Temp. Glass High Temp. Glass 704 1.4 x 2.3 10.0
20 (0.81) High Temp. Glass High Temp. Glass 704 1.5 x 2.7 13.4

E Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) High Temp. Glass High Temp. Glass 704 1.4 x 2.3 10.0
20 (0.81) High Temp. Glass High Temp. Glass 704 1.5 x 2.7 13.4

J Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) High Temp. Glass High Temp. Glass 370 1.1 x 2.2 10.0
20 (0.81) High Temp. Glass High Temp. Glass 480 1.5 x 2.7 13.4

N Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) High Temp. Glass High Temp. Glass 704 1.4 x 2.3 3.4
20 (0.81) High Temp. Glass High Temp. Glass 704 1.5 x 2.7 6.7
