Flat Single Pair Silica Insulated
Applications
These cables are used with thermocouples for temperature measurements.
Specification
- Conductor: Solid. Material is according to thermocouple type.
- Insulation: Silica
- Outer sheath: Silica
- Construction: Flat
- Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
---|---|---|---|---|---|
24 (0.51) | silica | silica | 870 | 2.2 x 3.4 | 16.7 |
20 (0.81) | silica | silica | 980 | 2.7 x 3.9 | 20.0 |
14 (1.63) | silica | silica | 1090 | 3.6 x 5.0 | 53.4 |
J Type
AWG(mm) |
Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
---|---|---|---|---|---|
24 (0.51) | silica | silica | 370 | 2.2 x 3.4 | 16.7 |
20 (0.81) | silica | silica | 480 | 2.7 x 3.9 | 20.0 |
14 (1.63) | silica | silica | 590 | 3.6 x 5.0 | 53.4 |

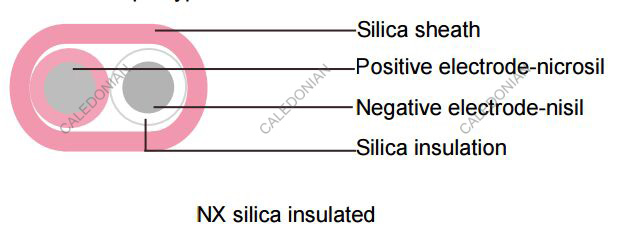

N Type
AWG(mm) |
Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
---|---|---|---|---|---|
24 (0.51) | silica | silica | 980 | 2.2 x 3.4 | 10.0 |
20 (0.81) | silica | silica | 980 | 2.7 x 3.9 | 11.7 |
14 (1.63) | silica | silica | 1090 | 3.6 x 5.0 | 26.7 |
