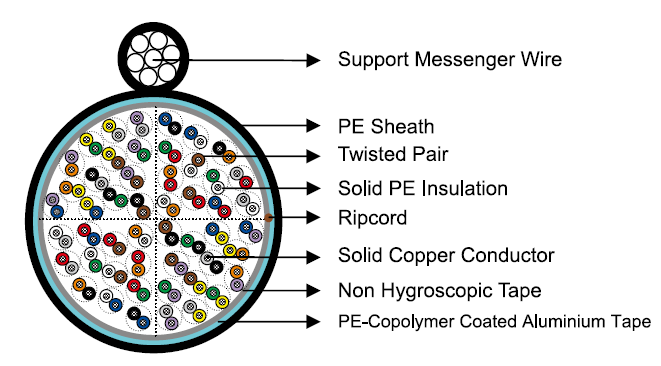

Fig 8 Solid PE Insulated & LAP Sheathed Air Core Cable to ICEA S-85-625 (formerly RUS (REA) PE-38)
| Cable Code | Number of Pairs |
Support Messenger Wire Diameter mm/inch |
Nominal Sheath Thickness mm/inch |
Nominal Overall Dimension d x D x H mm/inch |
Nominal Weight kg/km / lbs/kft |
|---|---|---|---|---|---|
| 0.4mm Conductor, 0.7mm Insulated Wire | |||||
| TP625-2Y(A)2Y-3P04-SS | 3 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X8.0X20.0 / 0.36X0.315X0.787 | 245/165 |
| TP625-2Y(A)2Y-5P04-SS | 5 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X8.5X20.5 / 0.36X0.335X0.807 | 250/168 |
| TP625-2Y(A)2Y-6P04-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.0X21.0 / 0.36X0.354X0.827 | 260/175 |
| TP625-2Y(A)2Y-10P04-SS | 10 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.5X21.5 / 0.36X0.374X0.846 | 270/181 |
| TP625-2Y(A)2Y-12P04-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.0X22.0 / 0.36X0.394X0.866 | 280/188 |
| TP625-2Y(A)2Y-15P04-SS | 15 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.5X22.5 / 0.36X0.413X0.886 | 290/195 |
| TP625-2Y(A)2Y-20P04-SS | 20 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X11.0X23.5 / 0.36X0.433X0.925 | 310/208 |
| TP625-2Y(A)2Y-25P04-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.0X24.0 / 0.36X0.472X0.945 | 330/222 |
| TP625-2Y(A)2Y-30P04-SS | 30 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.5X24.5 / 0.36X0.492X0.965 | 350/235 |
| TP625-2Y(A)2Y-40P04-SS | 40 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X13.5X25.5 / 0.36X0.531X1.000 | 390/262 |
| TP625-2Y(A)2Y-50P04-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X14.5X26.5 / 0.36X0.571X1.040 | 410/276 |
| TP625-2Y(A)2Y-75P04-SS | 75 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X16.5X28.5 / 0.36X0.650X1.120 | 490/329 |
| TP625-2Y(A)2Y-100P04-SS | 100 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X18.0X30.0 / 0.36X0.709X1.180 | 570/383 |
| TP625-2Y(A)2Y-150P04-SS | 150 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X21.0X33.0 / 0.36X0.827X1.300 | 730/491 |
| TP625-2Y(A)2Y-200P04-SS | 200 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X23.5X36.0 / 0.36X0.925X1.420 | 880/591 |
| TP625-2Y(A)2Y-300P04-SS | 300 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X27.5X39.5 / 0.36X1.080X1.560 | 1220/820 |
| TP625-2Y(A)2Y-400P04-SS | 400 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.7X31.5X44.0 / 0.382X1.240X1.73 | 1490/1001 |
| 0.5mm Conductor, 0.9mm Insulated Wire | |||||
| TP625-2Y(A)2Y-3P05-SS | 3 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X8.5X20.5 / 0.36X0.335X0.807 | 250/168 |
| TP625-2Y(A)2Y-5P05-SS | 5 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.5X21.5 / 0.36X0.374X0.846 | 260/175 |
| TP625-2Y(A)2Y-6P05-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.5X22.0 / 0.36X0.374X0.866 | 265/178 |
| TP625-2Y(A)2Y-10P05-SS | 10 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X11.0X23.0 / 0.36X0.433X0.906 | 290/195 |
| TP625-2Y(A)2Y-12P05-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X11.5X23.5 / 0.36X0.453X0.925 | 310/208 |
| TP625-2Y(A)2Y-15P05-SS | 15 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.0X24.0 / 0.36X0.472X0.945 | 330/222 |
| TP625-2Y(A)2Y-20P05-SS | 20 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X13.0X25.0 / 0.36X0.512X0.984 | 350/235 |
| TP625-2Y(A)2Y-25P05-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X14.0X26.0 / 0.36X0.551X1.024 | 380/255 |
| TP625-2Y(A)2Y-30P05-SS | 30 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X14.5X26.5 / 0.36X0.571X1.040 | 420/282 |
| TP625-2Y(A)2Y-40P05-SS | 40 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X16.0X28.0 / 0.36X0.630X1.100 | 470/316 |
| TP625-2Y(A)2Y-50P05-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X17.0X29.0 / 0.36X0.669X1.140 | 510/343 |
| TP625-2Y(A)2Y-75P05-SS | 75 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X19.5X31.5 / 0.36X0.768X1.240 | 630/423 |
| TP625-2Y(A)2Y-100P05-SS | 100 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X22.5X34.5 / 0.36X0.886X1.360 | 760/511 |
| TP625-2Y(A)2Y-150P05-SS | 150 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X26.0X38.0 / 0.36X1.020X1.500 | 1000/672 |
| TP625-2Y(A)2Y-200P05-SS | 200 | 7/2.03 / 7/0.08 | 1.8/0.071 | 9.7X29.5X42.5 / 0.382X1.160X1.67 | 1260/847 |
| TP625-2Y(A)2Y-300P05-SS | 300 | 7/2.03 / 7/0.08 | 1.8/0.071 | 9.7X34.5X47.5 / 0.382X1.360X1.87 | 1720/1156 |
| 0.63mm Conductor, 1.15mm Insulated Wire | |||||
| TP625-2Y(A)2Y-3P063-SS | 3 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.5X21.5 / 0.36X0.374X0.846 | 260/175 |
| TP625-2Y(A)2Y-5P063-SS | 5 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.5X22.5 / 0.36X0.413X0.886 | 280/188 |
| TP625-2Y(A)2Y-6P063-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X11.0X23.0 / 0.36X0.433X0.906 | 290/195 |
| TP625-2Y(A)2Y-10P063-SS | 10 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.5X24.5 / 0.36X0.492X0.965 | 320/215 |
| TP625-2Y(A)2Y-12P063-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X13.0X25.0 / 0.36X0.512X0.984 | 350/235 |
| TP625-2Y(A)2Y-15P063-SS | 15 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X13.5X26.0 / 0.36X0.531X1.024 | 380/255 |
| TP625-2Y(A)2Y-20P063-SS | 20 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X15.0X27.0 / 0.36X0.591X1.060 | 420/282 |
| TP625-2Y(A)2Y-25P063-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X16.0X28.0 / 0.36X0.630X1.100 | 450/302 |
| TP625-2Y(A)2Y-30P063-SS | 30 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X17.0X29.0 / 0.36X0.669X1.140 | 510/343 |
| TP625-2Y(A)2Y-40P063-SS | 40 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X19.0X31.0 / 0.36X0.748X1.220 | 590/396 |
| TP625-2Y(A)2Y-50P063-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X20.5X32.5 / 0.36X0.807X1.280 | 650/437 |
| TP625-2Y(A)2Y-75P063-SS | 75 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X24.0X36.5 / 0.36X0.945X1.440 | 850/571 |
| TP625-2Y(A)2Y-100P063-SS | 100 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X27.0X39.0 / 0.36X1.060X1.540 | 1040/699 |
| TP625-2Y(A)2Y-150P063-SS | 150 | 7/2.03 / 7/0.08 | 1.8/0.071 | 9.7X32.0X45.0 / 0.382X1.26X1.770 | 1430/961 |
| TP625-2Y(A)2Y-200P063-SS | 200 | 7/2.03 / 7/0.08 | 2.0/0.079 | 10.1X36.5X49.5 / 0.398X1.44X1.95 | 1820/1223 |
| TP625-2Y(A)2Y-300P063-SS | 300 | 7/2.03 / 7/0.08 | 2.0/0.079 | 10.1X43.5X56.5 / 0.398X1.71X2.22 | 2570/1727 |
| 0.9mm Conductor, 1.5mm Insulated Wire | |||||
| TP625-2Y(A)2Y-3P09-SS | 3 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X11.0X23.0 / 0.36X0.433X0.906 | 290/195 |
| TP625-2Y(A)2Y-5P09-SS | 5 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.5X24.5 / 0.36X0.492X0.965 | 330/222 |
| TP625-2Y(A)2Y-6P09-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.5X24.5 / 0.36X0.492X0.965 | 350/235 |
| TP625-2Y(A)2Y-10P09-SS | 10 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.5X24.5 / 0.36X0.492X0.965 | 410/276 |
| TP625-2Y(A)2Y-12P09-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X16.0X28.0 / 0.36X0.630X1.100 | 450/302 |
| TP625-2Y(A)2Y-15P09-SS | 15 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X16.0X28.0 / 0.36X0.630X1.100 | 500/336 |
| TP625-2Y(A)2Y-20P09-SS | 20 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X19.0X31.0 / 0.36X0.748X1.220 | 580/390 |
| TP625-2Y(A)2Y-25P09-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X20.5X33.0 / 0.36X0.807X1.300 | 650/437 |
| TP625-2Y(A)2Y-30P09-SS | 30 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X22.5X35.0 / 0.36X0.886X1.380 | 770/517 |
| TP625-2Y(A)2Y-30P09-SS | 40 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X25.5X37.5 / 0.36X1.000X1.480 | 920/618 |
| TP625-2Y(A)2Y-50P09-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X27.5X39.5 / 0.36X1.080X1.560 | 1040/699 |
| TP625-2Y(A)2Y-50P09-SS | 75 | 7/2.03 / 7/0.08 | 1.8/0.071 | 9.1X27.5X39.5 / 0.36X1.080X1.560 | 1430/961 |
| TP625-2Y(A)2Y-50P09-SS | 100 | 7/2.03 / 7/0.08 | 2.0/0.079 | 10.1X37.0X50.5 / 0.398X1.46X1.99 | 1810/1216 |
| TP625-2Y(A)2Y-150P09-SS | 150 | 7/2.03 / 7/0.08 | 2.0/0.079 | 10.1X37.0X50.5 / 0.398X1.46X1.99 | 2570/1727 |
| TP625-2Y(A)2Y-200P09-SS | 200 | 7/2.03 / 7/0.08 | 2.3/0.091 | 10.7X51.0X64.5 / 0.421X2.01X2.54 | 3440/2312 |

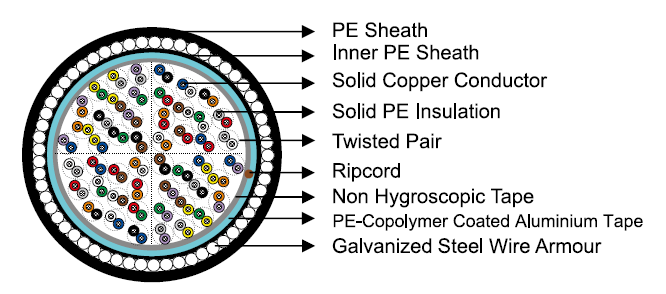

Solid PE Insulated, Steel Wire Armoured & LAP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625
| Cable Code | Number of Pairs |
Nominal Inner Sheath Thickness mm/inch |
Nominal Diameter of Armour Wires mm/inch |
Nominal Outer Sheath Thickness mm/inch |
Nominal Overall Diameter mm/inch |
Nominal Weight kg/km / lbs/kft |
|---|---|---|---|---|---|---|
| 0.4mm Conductor, 0.7mm Insulated Wire | ||||||
| TP625-2Y2Y(SWA)(A)2Y-5P04 | 5 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 15.0/0.591 | 260/175 |
| TP625-2Y2Y(SWA)(A)2Y-10P04 | 10 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 16.0/0.630 | 305/205 |
| TP625-2Y2Y(SWA)(A)2Y-15P04 | 15 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 17.0/0.669 | 380/255 |
| TP625-2Y2Y(SWA)(A)2Y-20P04 | 20 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 18.0/0.709 | 410/275 |
| TP625-2Y2Y(SWA)(A)2Y-25P04 | 25 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 19.0/0.748 | 440/296 |
| TP625-2Y2Y(SWA)(A)2Y-30P04 | 30 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 19.0/0.748 | 470/316 |
| TP625-2Y2Y(SWA)(A)2Y-40P04 | 40 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 20.0/0.787 | 520/349 |
| TP625-2Y2Y(SWA)(A)2Y-50P04 | 50 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 21.0/0.827 | 570/383 |
| TP625-2Y2Y(SWA)(A)2Y-100P04 | 100 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 26.0/1.024 | 1100/739 |
| 0.5mm Conductor, 0.9mm Insulated Wire | ||||||
| TP625-2Y2Y(SWA)(A)2Y-5P05 | 5 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 16.0/0.630 | 290/195 |
| TP625-2Y2Y(SWA)(A)2Y-10P05 | 10 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 18.0/0.709 | 380/255 |
| TP625-2Y2Y(SWA)(A)2Y-15P05 | 15 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 19.0/0.748 | 440/296 |
| TP625-2Y2Y(SWA)(A)2Y-20P05 | 20 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 20.0/0.787 | 480/323 |
| TP625-2Y2Y(SWA)(A)2Y-25P05 | 25 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 21.0/0.827 | 550/370 |
| TP625-2Y2Y(SWA)(A)2Y-30P05 | 30 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 21.0/0.827 | 570/383 |
| TP625-2Y2Y(SWA)(A)2Y-40P05 | 40 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 24.0/0.945 | 930/625 |
| TP625-2Y2Y(SWA)(A)2Y-50P05 | 50 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 25.0/0.984 | 1030/692 |
| TP625-2Y2Y(SWA)(A)2Y-100P05 | 100 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 30.0/1.18 | 1500/1008 |
| 0.63mm Conductor, 1.15mm Insulated Wire | ||||||
| TP625-2Y2Y(SWA)(A)2Y-5P063 | 5 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 17.0/0.669 | 380/255 |
| TP625-2Y2Y(SWA)(A)2Y-10P063 | 10 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 19.0/0.748 | 450/302 |
| TP625-2Y2Y(SWA)(A)2Y-15P063 | 15 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 21.0/0.827 | 540/363 |
| TP625-2Y2Y(SWA)(A)2Y-20P063 | 20 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 22.0/0.866 | 580/390 |
| TP625-2Y2Y(SWA)(A)2Y-25P063 | 25 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 24.0/0.945 | 940/632 |
| TP625-2Y2Y(SWA)(A)2Y-30P063 | 30 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 25.0/0.984 | 1000/672 |
| TP625-2Y2Y(SWA)(A)2Y-40P063 | 40 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 27.0/1.06 | 1160/779 |
| TP625-2Y2Y(SWA)(A)2Y-50P063 | 50 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 28.0/1.10 | 1300/874 |
| TP625-2Y2Y(SWA)(A)2Y-100P063 | 100 | 1.5/0.059 | 2.0/0.079 | 1.5/0.059 | 36.0/1.42 | 2210/1485 |
| 0.9mm Conductor, 1.5mm Insulated Wire | ||||||
| TP625-2Y2Y(SWA)(A)2Y-5P09 | 5 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 19.0/0.748 | 440/296 |
| TP625-2Y2Y(SWA)(A)2Y-10P09 | 10 | 1.5/0.059 | 0.8/0.031 | 1.5/0.059 | 22.0/0.866 | 600/403 |
| TP625-2Y2Y(SWA)(A)2Y-15P09 | 15 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 25.0/0.984 | 1020/685 |
| TP625-2Y2Y(SWA)(A)2Y-20P09 | 20 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 27.0/1.06 | 1160/779 |
| TP625-2Y2Y(SWA)(A)2Y-25P09 | 25 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 28.0/1.10 | 1330/894 |
| TP625-2Y2Y(SWA)(A)2Y-30P09 | 30 | 1.5/0.059 | 1.6/0.063 | 1.5/0.059 | 30.0/1.18 | 1520/1021 |
| TP625-2Y2Y(SWA)(A)2Y-40P09 | 40 | 1.5/0.059 | 2.0/0.079 | 1.5/0.059 | 34.0/1.34 | 2010/1351 |
| TP625-2Y2Y(SWA)(A)2Y-50P09 | 50 | 1.5/0.059 | 2.0/0.079 | 1.5/0.059 | 36.0/1.42 | 2250/1512 |
| TP625-2Y2Y(SWA)(A)2Y-100P09 | 100 | 2.0/0.079 | 2.5/0.098 | 2.0/0.079 | 48.0/1.89 | 3960/2661 |
