Solid PE Insulated & AP Sheathed Air Core Cables to ICEA S-85-625
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperaturerange during installation (mobile state): -20°C – +50°C
Minimumbending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Colour Code
Standard colour code is per IEC 60708 given in Colour Code ChartDimensions And Weight
Solid PE Insulated & LAP Sheathed Air Core Cable to IEC 6070
Cable Code | Number of Pairs | Nominal Sheath Thickness mm/inch |
Nominal Overall Diameter mm/inch |
Nominal Weight kg/km / lbs/kft |
---|---|---|---|---|
0.4mm Conductor, 0.7mm Insulated Wire | ||||
TP22-2Y(L)2Y-3P04 | 3 | 1.5/0.059 | 8.0/0.32 | 55/37 |
TP22-2Y(L)2Y-5P04 | 5 | 1.5/0.059 | 8.5/0.33 | 60/40 |
TP22-2Y(L)2Y-6P04 | 6 | 1.5/0.059 | 9.0/0.35 | 65/44 |
TP22-2Y(L)2Y-10P04 | 10 | 1.5/0.059 | 9.5/0.37 | 80/54 |
TP22-2Y(L)2Y-12P04 | 12 | 1.5/0.059 | 10.0/0.39 | 90/60 |
TP22-2Y(L)2Y-15P04 | 15 | 1.5/0.059 | 10.5/0.41 | 100/67 |
TP22-2Y(L)2Y-20P04 | 20 | 1.5/0.059 | 11.0/0.43 | 120/81 |
TP22-2Y(L)2Y-25P04 | 25 | 1.5/0.059 | 12.0/0.47 | 140/94 |
TP22-2Y(L)2Y-30P04 | 30 | 1.5/0.059 | 12.5/0.49 | 155/104 |
TP22-2Y(L)2Y-40P04 | 40 | 1.5/0.059 | 13.5/0.53 | 190/128 |
TP22-2Y(L)2Y-50P04 | 50 | 1.5/0.059 | 14.5/0.57 | 220/148 |
TP22-2Y(L)2Y-75P04 | 75 | 1.5/0.059 | 16.5/0.65 | 300/202 |
TP22-2Y(L)2Y-100P04 | 100 | 1.5/0.059 | 18.0/0.71 | 380/255 |
TP22-2Y(L)2Y-150P04 | 150 | 1.5/0.059 | 21.0/0.83 | 540/363 |
TP22-2Y(L)2Y-200P04 | 200 | 1.5/0.059 | 24.0/0.94 | 690/464 |
TP22-2Y(L)2Y-300P04 | 300 | 1.5/0.059 | 30.5/1.20 | 1000/672 |
TP22-2Y(L)2Y-400P04 | 400 | 1.8/0.071 | 31.5/1.24 | 1300/874 |
TP22-2Y(L)2Y-600P04 | 600 | 2.0/0.079 | 37.5/1.48 | 1900/1277 |
TP22-2Y(L)2Y-800P04 | 800 | 2.3/0.091 | 43.0/1.69 | 2800/1882 |
TP22-2Y(L)2Y-900P04 | 900 | 2.3/0.091 | 46.0/1.81 | 2961/1990 |
TP22-2Y(L)2Y-1000P04 | 1000 | 2.5/0.098 | 48.0/1.89 | 3264/2193 |
TP22-2Y(L)2Y-1200P04 | 1200 | 2.8/0.110 | 52.0/2.05 | 3873/2603 |
TP22-2Y(L)2Y-1500P04 | 1500 | 2.8/0.110 | 58.0/2.28 | 4819/3238 |
TP22-2Y(L)2Y-1800P04 | 1800 | 3.2/0.126 | 63.0/2.48 | 5777/3882 |
TP22-2Y(L)2Y-2100P04 | 2100 | 3.2/0.126 | 68.0/2.68 | 6731/4523 |
TP22-2Y(L)2Y-2400P04 | 2400 | 3.5/0.138 | 72.0/2.83 | 7645/5137 |
TP22-2Y(L)2Y-2700P04 | 2700 | 3.5/0.138 | 76.0/2.99 | 8556/5749 |
TP22-2Y(L)2Y-3000P04 | 3000 | 3.5/0.138 | 80.0/3.15 | 9466/6361 |
0.5mm Conductor, 0.9mm Insulated Wire |
||||
TP22-2Y(L)2Y-6P05 | 6 | 1.5/0.059 | 9.40/0.37 | 82/55 |
TP22-2Y(L)2Y-12P05 | 12 | 1.5/0.059 | 10.92/0.43 | 119/80 |
TP22-2Y(L)2Y-25P05 | 25 | 1.5/0.059 | 13.72/0.54 | 201/135 |
TP22-2Y(L)2Y-50P05 | 50 | 1.5/0.059 | 17.02/0.67 | 335/225 |
TP22-2Y(L)2Y-100P05 | 100 | 1.5/0.059 | 22.35/0.88 | 595/400 |
TP22-2Y(L)2Y-200P05 | 200 | 1.5/0.059 | 30.48/1.20 | 1108/745 |
TP22-2Y(L)2Y-300P05 | 300 | 1.5/0.059 | 35.56/1.40 | 1622/1090 |
TP22-2Y(L)2Y-400P05 | 400 | 1.5/0.059 | 40.64/1.60 | 2128/1430 |
TP22-2Y(L)2Y-600P05 | 600 | 1.5/0.059 | 48.26/1.90 | 3154/2120 |
TP22-2Y(L)2Y-900P05 | 900 | 1.5/0.059 | 58.42/2.30 | 4627/3110 |
0.63mm Conductor, 1.15mm Insulated Wire |
||||
TP22-2Y(L)2Y-6P063 | 6 | 1.5/0.059 | 10.16/0.40 | 104/70 |
TP22-2Y(L)2Y-12P063 | 12 | 1.5/0.059 | 12.45/0.49 | 164/110 |
TP22-2Y(L)2Y-25P063 | 25 | 1.5/0.059 | 16.00/0.63 | 283/190 |
TP22-2Y(L)2Y-50P063 | 50 | 1.5/0.059 | 22.86/0.90 | 484/325 |
TP22-2Y(L)2Y-100P063 | 100 | 1.5/0.059 | 27.94/1.10 | 885/595 |
TP22-2Y(L)2Y-200P063 | 200 | 1.5/0.059 | 35.56/1.40 | 1696/1140 |
0.9mm Conductor, 1.5mm Insulated Wire |
||||
TP22-2Y(L)2Y-6P09 | 6 | 1.5/0.059 | 12.45/0.49 | 164/110 |
TP22-2Y(L)2Y-12P09 | 12 | 1.5/0.059 | 15.75/0.62 | 268/180 |
TP22-2Y(L)2Y-25P09 | 25 | 1.5/0.059 | 20.07/0.79 | 476/320 |
TP22-2Y(L)2Y-50P09 | 50 | 1.5/0.059 | 27.94/1.10 | 878/590 |

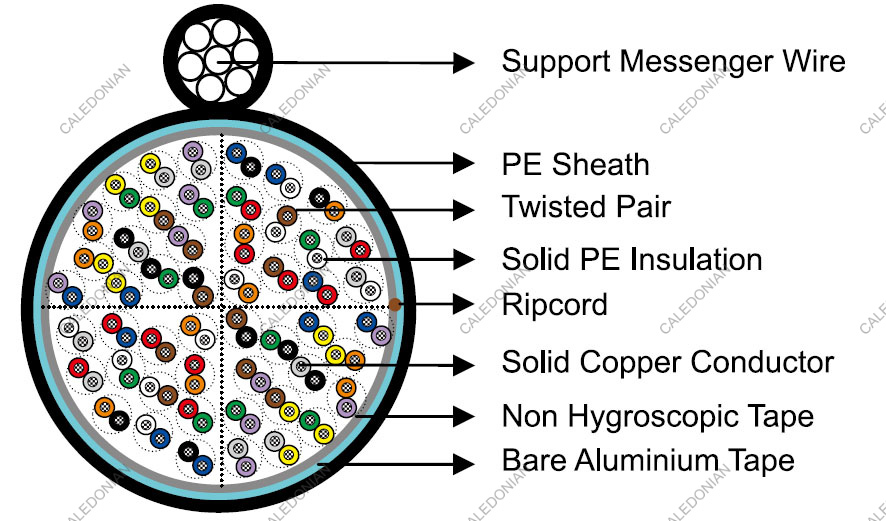

Fig 8 Solid PE Insulated & LAP Sheathed Air Core Cable to ICEA S-85-625 (formerly RUS (REA) PE-38)
Cable Code | Number of Pairs |
Support Messenger Wire Diameter mm/inch |
Nominal Sheath Thickness mm/inch |
Nominal Overall Dimension d x D x H mm/inch |
Nominal Weight kg/km / lbs/kft |
---|---|---|---|---|---|
0.4mm Conductor, 0.7mm Insulated Wire | |||||
TP38-2Y(L)2Y-3P04-SS | 3 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X8.0X20.0 / 0.36X0.315X0.787 | 245/165 |
TP38-2Y(L)2Y-5P04-SS | 5 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X8.5X20.5 / 0.36X0.335X0.807 | 250/168 |
TP38-2Y(L)2Y-6P04-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.0X21.0 / 0.36X0.354X0.827 | 260/175 |
TP38-2Y(L)2Y-10P04-SS | 10 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.5X21.5 / 0.36X0.374X0.846 | 270/181 |
TP38-2Y(L)2Y-12P04-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.0X22.0 / 0.36X0.394X0.866 | 280/188 |
TP38-2Y(L)2Y-15P04-SS | 15 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.5X22.5 / 0.36X0.413X0.886 | 290/195 |
TP38-2Y(L)2Y-20P04-SS | 20 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X11.0X23.5 / 0.36X0.433X0.925 | 310/208 |
TP38-2Y(L)2Y-25P04-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.0X24.0 / 0.36X0.472X0.945 | 330/222 |
TP38-2Y(L)2Y-30P04-SS | 30 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.5X24.5 / 0.36X0.492X0.965 | 350/235 |
TP38-2Y(L)2Y-40P04-SS | 40 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X13.5X25.5 / 0.36X0.531X1.000 | 390/262 |
TP38-2Y(L)2Y-50P04-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X14.5X26.5 / 0.36X0.571X1.040 | 410/276 |
TP38-2Y(L)2Y-75P04-SS | 75 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X16.5X28.5 / 0.36X0.650X1.120 | 490/329 |
TP38-2Y(L)2Y-100P04-SS | 100 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X18.0X30.0 / 0.36X0.709X1.180 | 570/383 |
TP38-2Y(L)2Y-150P04-SS | 150 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X21.0X33.0 / 0.36X0.827X1.300 | 730/491 |
TP38-2Y(L)2Y-200P04-SS | 200 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X23.5X36.0 / 0.36X0.925X1.420 | 880/591 |
TP38-2Y(L)2Y-300P04-SS | 300 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X27.5X39.5 / 0.36X1.080X1.560 | 1220/820 |
TP38-2Y(L)2Y-400P04-SS | 400 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.7X31.5X44.0 / 0.382X1.240X1.73 | 1490/1001 |
0.5mm Conductor, 0.9mm Insulated Wire | |||||
TP38-2Y(L)2Y-6P05-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X9.4X22.0 / 0.36X0.37X0.866 | 305/205 |
TP38-2Y(L)2Y-12P05-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.92X23.5 / 0.36X0.43X0.925 | 342/230 |
TP38-2Y(L)2Y-25P05-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X13.72X26.0 / 0.36X0.54X1.024 | 424/285 |
TP38-2Y(L)2Y-50P05-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X17.02X29.0 / 0.36X0.67X1.14 | 558/375 |
TP38-2Y(L)2Y-100P05-SS | 100 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X22.86X34.5 / 0.36X0.90X1.36 | 833/560 |
0.63mm Conductor, 1.15mm Insulated Wire | |||||
TP38-2Y(L)2Y-6P063-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X10.15X23.0 / 0.36X0.40X0.906 | 327/220 |
TP38-2Y(L)2Y-12P063-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.45X25.0 / 0.36X0.49X0.984 | 387/260 |
TP38-2Y(L)2Y-25P063-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X15.49X28.0 / 0.36X0.61X1.10 | 498/335 |
TP38-2Y(L)2Y-50P063-SS | 50 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X20.57X32.5 / 0.36X0.81X1.28 | 722/485 |
0.9mm Conductor, 1.5mm Insulated Wire | |||||
TP38-2Y(L)2Y-6P09-SS | 6 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X12.45X25.0 / 0.36X0.49X0.984 | 387/260 |
TP38-2Y(L)2Y-12P09-SS | 12 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X15.75X28.0 / 0.36X0.62X1.10 | 491/330 |
TP38-2Y(L)2Y-25P09-SS | 25 | 7/2.03 / 7/0.08 | 1.5/0.059 | 9.1X20.57X33.0 / 0.36X0.81X1.30 | 714/480 |
