ADSL Connecting Cables
Application
The ADSL Connecting Cables are designed for ADSL transmission system. The cables are characterized by guaranteed data speeds up to 10MHz. The cables have a small cable diameter with an easily removable sheath.
Standards
• IEC 61156-1 Part 1
• ANSI/ICEA S-80-576

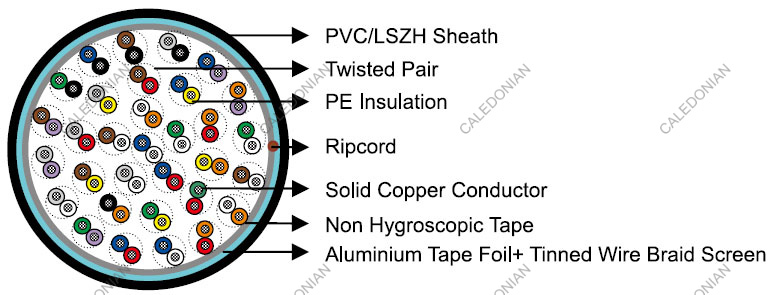

Construction
Conductors
Solid annealed bare copper sized 0.4mm as per ASTM B-3/IEC 60228 Class 1
Insulation
Solid polyethylene as per ASTM D 1248/IEC 60708
Twisted Pairs
Insulated conductors are twisted into pairs with varying lays to minimize crosstalk
Cable Core Assembly
The pairs are cabled in concentric layer to form the cable core
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap
Screen
An aluminium polyester foil is applied in close contact with tinned copper braid screen
Sheath
PVC or LSZH compound
Ripcord
Ripcord may be placed to facilitate sheath removal
Electrical Properties
Number of Pairs | 24 | 32 | 64 | 72 | 96 | 128 | |
---|---|---|---|---|---|---|---|
Maximum Conductor Resistance @20°C | Ω/km | 143 | 143 | 143 | 143 | 143 | 143 |
Minimum Insulation Resistance @500V DC | MΩ.km | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Maximum Mutual Capacitance @800Hz | nF/km | 80 | 80 | 80 | 80 | 80 | 80 |
Maximum Capacitance Unbalance pair-to-pair | pF/500m | 250 | 250 | 250 | 250 | 250 | 250 |
Impedance | Ω | 120 | 120 | 105 | 105 | 100 | 105 |
Maximum Average Attenuation @1MHz | dB/km | 32 | 32 | 32 | 32 | 32 | 32 |
Maximum Average Attenuation @10MHz | dB/km | 110 | 110 | 110 | 110 | 110 | 110 |
Minimum NEXT pair-to-pair @1MHz | dB | 55 | 55 | 55 | 55 | 55 | 55 |
Minimum NEXT pair-to-pair @10MHz | dB | 40 | 40 | 40 | 40 | 40 | 40 |
Dielectric Strength 1min | V DC | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter
Colour Code
Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart
Dimensions And Weight
Cable Code | Number of Pairs | Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
---|---|---|---|---|---|
TP576-2Y(St)Y-24P04-ADSL | 24 / 3X4Q | 0.2 | 0.9 | 11.0 | 139 |
TP576-2Y(St)Y-32P04-ADSL | 32 / 4X4Q | 0.2 | 0.9 | 12.0 | 180 |
TP576-2Y(St)Y-64P04-ADSL | 64 | 0.15 | 1.0 | 15.0 | 300 |
TP576-2Y(St)Y-72P04-ADSL | 72 | 0.15 | 1.0 | 16.0 | 330 |
TP576-2Y(St)Y-96P04-ADSL | 96 | 0.15 | 1.1 | 19.5 | 450 |
TP576-2Y(St)Y-128P04-ADSL | 128 | 0.15 | 1.2 | 20.0 | 528 |
