PE Insulated Air Core/Jelly Filled Star Quad Railway Signalling Cables (RF 0.3)
Application
The Railway Signalling Cables are designed to give good protection to the core against inductive interference (RF=0.3).The cables are used for outdoor signaling equipment.
Standards
• RENFE E.T. 03.365.051.6

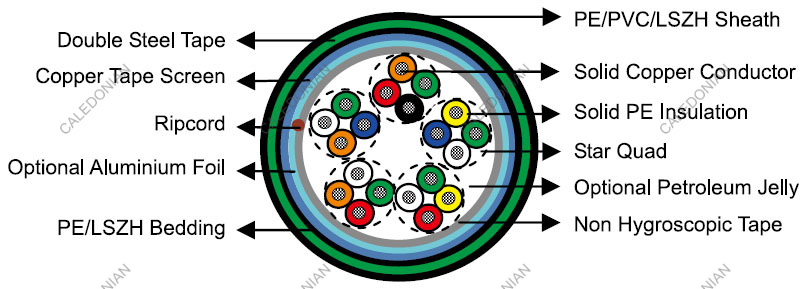

Construction
Conductors
Solid annealed bare copper 0.9/1.4mm as per ASTM B-3/class 1 of IEC 60228
Insulation
Solid polyethylene as per ASTM D 1248/IEC 60708
Cabling Element
Four insulated conductors are twisted together to form a quad
Cable Core Assembly
The cores are cabled together in concentric layers to form the cable core. Units are identified by colour coded binders
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap
Electrostatic Screen
Corrugated copper tape of 0.12mm is applied longitudinally with overlap
Bedding
PE or LSZH
Electrostatic Armour
Two steel tapes of 0.5mm are helically applied with gap. The outer tape will cover the gap left by the inner one
Sheath
PE, PVC or LSZH
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Electrical Properties
Nominal Conductor Diameter | mm | 0.9 | 1.4 |
---|---|---|---|
Conductor Size | mm2 | 0.636 | 1.539 |
Maximum Conductor Resistance @20°C | Ω/km | 28 | 12.1 |
Minimum Insulation Resistance @500V DC | MΩ.km | 35000 | 5000 |
Reduction Factor Rk (50Hz) Induced Voltage Em 100V/Km | 0.3 | 0.3 | |
Induced Voltage Em 500V/Km | 0.5 | 0.5 | |
Maximum Resistance Unbalance | % | 2.5 | 2.5 |
Maximum Mutual Capacitance @0.8Hz | nF/km | 45 | 50 |
Maximum Capacitance Unbalance @1KHz pair-to-pair | pF/500m | 250 | 250 |
Maximum Capacitance Unbalance @1KHz pair-to-ground | pF/500m | 1200 | 1200 |
Maximum Average Attenuation @1KHz | dB/km | 0.7 | 0.46 |
Maximum Average Attenuation @10KHz | dB/km | 1.6 | 0.85 |
Maximum Average Attenuation @30KHz | dB/km | 2.1 | 1.3 |
Dielectric Strength Conductor to Conductor 3secs | V DC | 3000 | 3000 |
Conductor to Screen 3secs | V DC | 3500 | 3500 |
Nominal Insulation Thickness | mm | 0.45 | 0.65 |
Nominal Insulated Conductor Diameter | mm | 1.8 | 2.7 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 15 x Overall Diameter
Colour Code
Layer | Quad Position | Colour of conductors | |||
---|---|---|---|---|---|
1 | 2 | 3 | 4 | ||
Centre and even layers | First | ORANGE | GREEN | RED | WHITE |
Even | YELLOW | GREEN | BLUE | WHITE | |
Odd | YELLOW | GREEN | RED | WHITE | |
Last | ORANGE | GREEN | BLUE | WHITE | |
Odd Layers | First | ORANGE | GREEN | RED | BLACK |
Even | YELLOW | GREEN | BLUE | BLACK | |
Odd | YELLOW | GREEN | RED | BLACK | |
Last | ORANGE | GREEN | BLUE | BLACK |
Dimensions And Weight
Cable Code | Number of Quads | Nominal Bedding/Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
---|---|---|---|---|
0.9mm Conductor, 1.8mm Insulated Wire | ||||
TP365-2Y(CTS)2Y(DSTA)Y1Q09-RF03 | 1 | 1.5/1.6 | 18.3 | 1300 |
TP365-2Y(CTS)2Y(DSTA)Y3Q09-RF03 | 3 | 1.5/1.6 | 21.7 | 1425 |
TP365-2Y(CTS)2Y(DSTA)Y5Q09-RF03 | 5 | 1.5/1.6 | 25.2 | 1650 |
TP365-2Y(CTS)2Y(DSTA)Y7Q09-RF03 | 7 | 1.5/1.6 | 26.7 | 1800 |
TP365-2Y(CTS)2Y(DSTA)Y10Q09-RF03 | 10 | 1.5/1.6 | 29.2 | 2275 |
TP365-2Y(CTS)2Y(DSTA)Y14Q09-RF03 | 14 | 1.6/1.8 | 32.3 | 2450 |
TP365-2Y(CTS)2Y(DSTA)Y19Q09-RF03 | 19 | 1.7/1.8 | 36.0 | 2895 |
TP365-2Y(CTS)2Y(DSTA)Y27Q09-RF03 | 27 | 1.7/1.8 | 40.5 | 3275 |
TP365-2Y(CTS)2Y(DSTA)Y37Q09-RF03 | 37 | 1.8/2.0 | 45.6 | 3775 |
TP365-2Y(CTS)2Y(DSTA)Y48Q09-RF03 | 48 | 1.9/2.0 | 49.8 | 4275 |
1.4mm Conductor, 2.7mm Insulated Wire | ||||
TP365-2Y(CTS)2Y(DSTA)Y1Q14-RF03 | 1 | 1.5/1.6 | 20.2 | 1615 |
TP365-2Y(CTS)2Y(DSTA)Y3Q14-RF03 | 3 | 1.5/1.6 | 25.7 | 1775 |
TP365-2Y(CTS)2Y(DSTA)Y5Q14-RF03 | 5 | 1.6/1.8 | 30.8 | 2200 |
TP365-2Y(CTS)2Y(DSTA)Y7Q14-RF03 | 7 | 1.6/1.8 | 32.8 | 2525 |
TP365-2Y(CTS)2Y(DSTA)Y10Q14-RF03 | 10 | 1.7/1.8 | 36.5 | 2975 |
TP365-2Y(CTS)2Y(DSTA)Y14Q14-RF03 | 14 | 1.7/1.8 | 40.5 | 3150 |
TP365-2Y(CTS)2Y(DSTA)Y19Q14-RF03 | 19 | 1.8/2.0 | 45.6 | 3695 |
TP365-2Y(CTS)2Y(DSTA)Y27Q14-RF03 | 27 | 2.0/2.2 | 52.3 | 3975 |
TP365-2Y(CTS)2Y(DSTA)Y37Q14-RF03 | 37 | 2.1/2.2 | 59.1 | 4475 |
TP365-2Y(CTS)2Y(DSTA)Y48Q14-RF03 | 48 | 2.2/2.3 | 66.0 | 4975 |
