Submersible Cable For Drinking Water (Flat)

Applications

These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water

Standards

  • DIN VDE 0282, part 16
    DIN VDE 0295
    IEC 60228
    DIN VDE 0298
    DIN VDE 0472

Construction

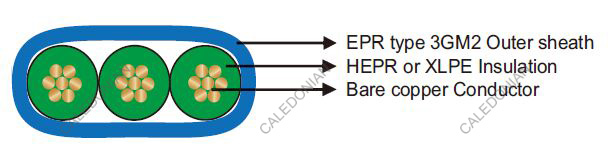

Submersible Cable For Drinking Water (Flat)

  • Conductor: Bare copper stranded class 5 to VDE0295, IEC 60228
    Insulation: HEPR or XLPE
    Outer Sheath: EPR type 3GM2, coloured blue.

    Technical data

  • Test Voltage 50Hz, 5 min: 2500V
    Rated Voltage: 450/750V
    Maximum admissible conductor Temperature in Operation: 90°C
    Short Circuit Temperature: 250°C
    Temperature Range: -40°C~+60°C

Dimensions

No. of cores x cross Outer Diameter　
approx mm x mm		 Net weight
kg/km
3x1.5 12.4x5.7 100
3x2.5 14.2x6.7 170
3x4 16.6x7.9 240
3x6 18.4x8.5 300
3x10 21.4x9.5 450
3x16 25.9x11.5 680
3x25 30.7x13.1 950
3x35 35.2x15.0 1300
3x50 40.9x17.3 1800
3x70 47.9x19.8 2450
3x95 53.6x22.6 3150
4G1.5 15.4x5.9 140
4x2.5 17.6x6.7 200
4G4 20.6x7.9 290
4G6 23.3x8.5 380
4G10 27.3x9.5 580
4G16 32.7x11.5 880
4G25 39.1x13.1 1260
4G35 45.6x15.0 1700
4G50 52.0x17.3 2360
4G70 61.2x19.8 3250
4G95 69.6x22.6 4150
