450℉/232℃ EPDM/LEAD Flat Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

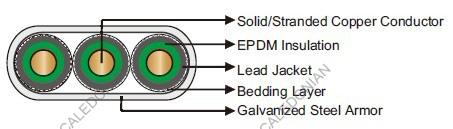

400?/204? EPDM/LEAD Flat Electrical Submersible Pump Cable

  • Conductor:Solid bare copper conductor.
  • Insulation: EPDM insulation with a poly adhesive layer to the conductor.
  • Jacket: Lead jacket.
  • Tape: Longitudinally applied, rubber backed, fabric bedding tap.
  • Armor: Galvanized steel tape.

Dimensions and Weight

5KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYEQ-232-5kV-3G4 4 21.1 0.20 5.2 0.08 2.0 1.47x0.59 37.3x15.1 1478 2200
QYEQ-232-5kV-3G2 2 33.6 0.26 6.6 0.08 2.0 1.63x0.64 41.4x16.3 1882 2800
QYEQ-232-5kV-3G1 1 42.4 0.29 7.4 0.08 2.0 1.73x0.67 43.9x17.0 2083 3100

Other conductor size can be offered upon request.
