400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

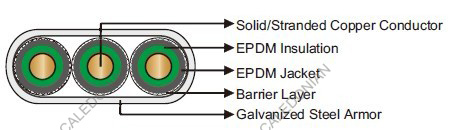

400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: EPDM insulation.
  • Jacket: EPDM rubber. Each insulated conductor should be individually jacketed or three conductors laid parallel within a common encapsulated jacket.
  • Barrier: Barrier tape and braid, used for fluid protection and hoop strength.
  • Armor: Galvanized steel.

Dimensions and Weight

3KV

Cable Type ConductorSize ConductorO.D. InsulationThickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYEE-204-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.55×0.54 39.3×13.8 793 1180
QYEE-204-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.64×0.57 41.6×14.5 901 1341
QYEE-204-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.70×0.59 43.3×15.1 985 1466
QYEE-204-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.81×0.63 46.0×16.0 1134 1688
QYEE-204-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.89×0.66 47.9×16.6 1245 1853
QYEE-204-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 2.03×0.71 51.7×17.9 1487 2213
QYEE-204-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 2.16×0.75 54.9×19.0 1717 2555
QYEE-204-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 2.49×0.86 63.2×21.8 2390 3557
QYEE-204-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 2.68×0.92 68.1×23.4 2841 4229

5KV

Cable Type ConductorSize ConductorO.D. InsulationThickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYEE-204-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.68×0.59 42.6×14.9 865 1287
QYEE-204-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.77×0.62 44.9×15.6 975 1451
QYEE-204-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.83×0.64 46.6×16.2 1061 1579
QYEE-204-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.94×0.67 49.3×17.1 1212 1804
QYEE-204-5kV-3G25S - 25 0.222 5.639 0.09 2.3 2.02×0.70 51.2×17.7 1325 1971
QYEE-204-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 2.17×0.75 55.0×19.0 1570 2336
QYEE-204-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 2.29×0.79 58.3×20.1 1802 2682
QYEE-204-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 2.62×0.90 66.6×22.9 2483 3696
QYEE-204-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 2.81×0.96 71.4×24.5 2939 4374

Other conductor size can be offered upon request.
