250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable

Applications

These cables are designed for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

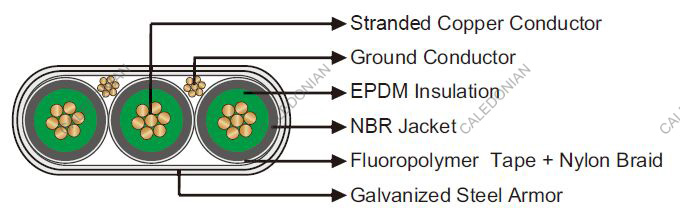

Construction

250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable

  • Conductor: Stranded bare copper (7/3.503) with water & gas blocking compound adhesive in the
    outer layer.
  • Insulation: EPDM insulation.
  • Jacket: NBR jacket.
  • Tape: Fluoropolymer tape.
  • Braid: Nylon braid.
  • Ground Conductor: Stranded bare copper (7/1.4mm), 2x7AWG (4AWG).
  • Armor: Interlocked galvanized steel.

Dimensions and Weight

5KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/
kft		 kg/
km
QYEN-121-5kV-3G2/0 2/0 67.4 0.41 10.47 0.09 2.3 2.40x0.85 61.0 x 21.7 2734 4070

Other conductor size can be offered upon request.
