  HomeProuductsSubmersible Pump Cable

205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1019
  • API RP 11S5
  • API RP 11S6

Construction

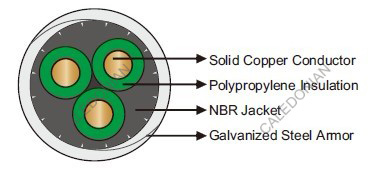

205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: Polypropylene insulation.
  • Jacket: Oil-resistant nitrile rubber.
  • Armor: Galvanized steel.

Dimensions and Weight

3KV

Cable Type

Conductor Size

Conductor O.D.

 Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/kft

kg/km

QYPNY-96-3kV-3G10S

-

10

0.14

3.556

0.075

1.9

1.03

26.1

724

1077

QYPNY-96-3kV-3G6

6

13.3

0.162

4.115

0.075

1.9

1.09

27.8

832

1238

QYPNY-96-3kV-3G16S

-

16

0.178

4.521

0.075

1.9

1.14

29.0

917

1364

QYPNY-96-3kV-3G4

4

21.1

0.204

5.182

0.075

1.9

1.22

31.0

1066

1587

QYPNY-96-3kV-3G25S

-

25

0.222

5.639

0.075

1.9

1.27

32.3

1178

1752

QYPNY-96-3kV-3G2

2

33.6

0.258

6.553

0.075

1.9

1.38

35.1

1420

2114

QYPNY-96-3kV-3G1

1

42.4

0.289

7.341

0.075

1.9

1.47

37.4

1651

2456

QYPNY-96-3kV-3G1/0

1/0

53.5

0.368

9.347

0.075

1.9

1.71

43.4

2326

3462

QYPNY-96-3kV-3G2/0

2/0

67.4

0.414

10.516

0.075

1.9

1.84

46.8

2779

4135

5KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPNY-96-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 806 1199
QYPNY-96-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 917 1365
QYPNY-96-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 1005 1495
QYPNY-96-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1158 1724
QYPNY-96-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1272 1894
QYPNY-96-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1521 2263
QYPNY-96-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1756 2613
QYPNY-96-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2444 3637
QYPNY-96-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2903 4321
