  HomeProuductsSubmersible Pump Cable

205℉/96℃ PP/NBR Flat Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1019
  • API RP 11S5
  • API RP 11S6

Construction

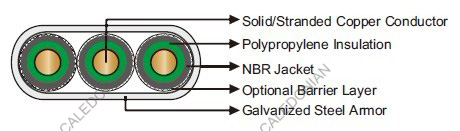

205℉/96℃ PP/NBR Flat Electrical Submersible Pump Cable

  • Conductor: Solid/stranded copper conductor.
  • Insulation: Polypropylene insulation.
  • Jacket: Oil-resistant nitrile rubber. Each insulated conductor should be individually jacketed or three
    conductors laid parallel within a common encapsulated jacket.
  • Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
  • Armor: Galvanized steel.

Dimensions and Weight

3KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPN-96-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.59×0.56 40.5×14.2 840 1249
QYPN-96-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.68×0.59 42.8×14.9 952 1416
QYPN-96-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.75×0.61 44.5×15.5 1040 1547
QYPN-96-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.86×0.65 47.2×16.4 1194 1776
QYPN-96-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.93×0.67 49.1×17.0 1308 1947
QYPN-96-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 2.08×0.72 52.9×18.3 1557 2318
QYPN-96-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 2.21×0.76 56.1×19.4 1793 2669
QYPN-96-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 2.54×0.87 64.4×22.2 2483 3695
QYPN-96-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 2.73×0.94 69.3×23.8 2944 4381

5KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/
kft		 kg/
km
QYPN-96-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.72×0.60 43.8×15.3 927 1380
QYPN-96-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.81×0.63 46.1×16.0 1043 1552
QYPN-96-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.88×0.65 47.8×16.6 1133 1686
QYPN-96-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.99×0.69 50.5×17.5 1291 1922
QYPN-96-5kV-3G25S - 25 0.222 5.639 0.09 2.3 2.06×0.71 52.4×18.1 1409 2096
QYPN-96-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 2.21×0.76 56.2×19.4 1663 2475
QYPN-96-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 2.34×0.81 59.5×20.5 1904 2834
QYPN-96-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 2.67×0.92 67.8×23.3 2606 3878
QYPN-96-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 2.86×0.98 72.6×24.9 3074 4575
