  HomeProuductsSubmersible Pump Cable

176℉/80℃ PP/HDPE Unarmored Round Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1019
  • API RP 11S5
  • API RP 11S6 1

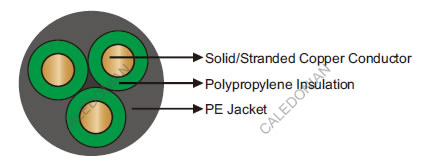

Construction

176℉/80℃ PP/HDPE Unarmored Round Electrical Submersible Pump Cable

  • Conductors: Solid/stranded copper conductor.
  • Insulation: Polypropylene insulation.
  • Jacket: Excellent abrasion resistance PE.

Dimensions and Weight

3KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPHY(U)-80-5kV-3G10S - 10 0.14 3.556 0.075 1.9 0.98 24.9 518 771
QYPHY(U)-80-5kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.04 26.5 613 913
QYPHY(U)-80-5kV-3G16S - 16 0.178 4.521 0.075 1.9 1.09 27.7 689  1025
QYPHY(U)-80-5kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.17 29.7 823  1225
QYPHY(U)-80-5kV-3G25S - 25 0.222 5.639 0.075 1.9 1.22 31.1 924  1375
QYPHY(U)-80-5kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.33 33.8 1146 1705
QYPHY(U)-80-5kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.42 36.1 1358 2021
QYPHY(U)-80-5kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.66 42.1 1987 2958
QYPHY(U)-80-5kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.80  45.6      2413  3591

5KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPHY(U)-80-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.07 27.2 582 866
QYPHY(U)-80-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.14 28.9 681 1013
QYPHY(U)-80-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.19 30.1 759 1129
QYPHY(U)-80-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.26 32.1 897 1335
QYPHY(U)-80-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.32 33.4 1001 1489
QYPHY(U)-80-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.42 36.2 1228 1827
QYPHY(U)-80-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.52 38.5 1445 2150
QYPHY(U)-80-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.75 44.5 2087 3105
QYPHY(U)-80-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.89 47.9 2520 3749
