  HomeProuductsSubmersible Pump Cable

176℉/80℃ PP/HDPE Round Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1019
  • API RP 11S5
  • API RP 11S6

Construction

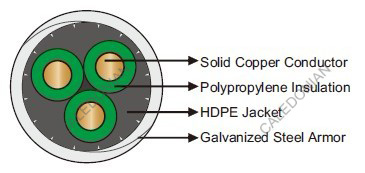

176℉/80℃ PP/HDPE Round Electrical Submersible Pump Cable

  • Conductors: Solid bare copper conductor with poly adhesive layer.
  • Insulation: Polypropylene insulation
  • Jacket: Integral HDPE jacket.
  • Armor: Galvanized steel armor.

Dimensions and Weight

3KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPHY-80-4kV-3G6 6 13.3 0.16 4.1 0.075 1.9 1.1 26.8 860 1280
QYPHY-80-4kV-3G4 4 21.1 0.20 5.1 0.075 1.9 1.1 29.1 1080 1607
QYPHY-80-4kV-3G2 2 33.5 0.26 6.6 0.075 1.9 1.3 32.6 1420 2113
QYPHY-80-4kV-3G1 1 42.4 0.29 7.4 0.075 1.9 1.3 33.8 1640 2440

4KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPHY-80-4kV-3G6 6 13.3 0.16 4.1 0.08 2.1 1.1 27.7 900 1339
QYPHY-80-4kV-3G4 4 21.1 0.20 5.1 0.08 2.1 1.2 30.0 1120 1666
QYPHY-80-4kV-3G2 2 33.5 0.26 6.6 0.08 2.1 1.3 33.5 1460 2172
QYPHY-80-4kV-3G1 1 42.4 0.29 7.4 0.08 2.1 1.4 34.6 1680 2500

5KV

Cable Type Conductor Size Conductor O.D. Insulation
Thickness		 Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPHY-80-4kV-3G6 6 13.3 0.16 4.1 0.09 2.3 1.1 28.5 930 1384
QYPHY-80-4kV-3G4 4 21.1 0.20 5.1 0.09 2.3 1.2 30.9 1160 1726
QYPHY-80-4kV-3G2 2 33.5 0.26 6.6 0.09 2.3 1.4 34.3 1500 2232
QYPHY-80-4kV-3G1 1 42.4 0.29 7.4 0.09 2.3 1.4 35.5 1720 2559
