Water Blocked Cable
Applications
These cables are water blocked, suitable for use as outboard installation cables for naval vessels.

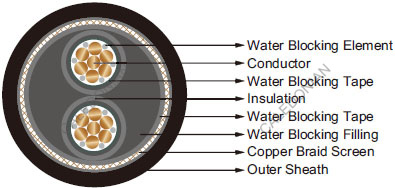

Construction
Conductor | Copper conductor, fine stranded. |
---|---|
Element | Water-blocking element. |
Separator | Water-blocking tape. |
Insulation | Special elastomer. |
Fillers | Water-blocking filling. |
Separator | Water-blocking tape. |
Screen | Copper braid with tinned wires. |
Sheath | Cross linked halogen free flame retardant compound. |
Electrical Data
500V
Number of Cores × Nominal Cross Section Area | Maximum Transfer impedance |
---|---|
No. × mm^2 | m Ω /m |
2×10 fix | 100 |
Dimension and Weight
500V
Number of Cores × Nominal Cross Section Area | Maximum Single Core Diameter | Minimum Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Maximum Weight |
---|---|---|---|---|---|
No. × mm^2 | mm | mm | mm | mm | kg/km |
2×10 fix | 5.9 | 2.0 | 20.3 | 21.5 | 650 |
