JIS C 3410 Shipboard Cables 250V
FA-] TTYS, TTYCS, TTYCYS
[FA-] TTPYS, TTPYCS, TTPYCYS
STANDARDS
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

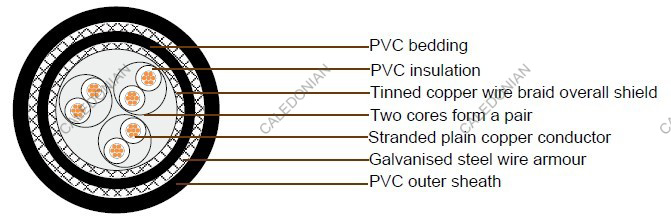

CABLE CONSTRUCTION
Conductor | TT TTP |
Tinned annealed stranded copper (TTY-type) Tinned annealed stranded copper (TTPY-type), class 2 according to IEC 60228 |
---|---|---|
Insulation | 60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3401 | |
Twisting | Two Insulated cores shall be twisted together to form a pair | |
Cabling | Twisted pairs shall be cabled. Flame retardant & non-hygroscopic fillers may be used | |
Overall shield | S | Tinned copper wire braid |
Bedding | Y | PVC as per JIS C 3401 |
Armor | C | Galvanized steel wire braid |
Sheath | Y | PVC as per JIS C 3401 |
Core identification | Printed pair number and Alphabet letter on the white insulation. ex) 4P : (1A, 1B), (2A, 2B), (3A, 3B), (4A, 4B) - 1T, 1Q cable shall be identified by the black number on the white insulation | |
Outer sheath color | Black |
Cable Parameter
(FA-) TTYS,TTPYS
No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Dia. of shield wire |
Thick. of bedding |
(FA-) TTYS,TTPYS | ||||
---|---|---|---|---|---|---|---|---|---|
Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 8.8 | 0.4 | 120 |
1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 9.3 | 0.4 | 140 |
1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 10 | 0.5 | 160 |
2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.2 | 13 | 0.6 | 200 |
4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.3 | 15 | 0.7 | 300 |
7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.4 | 17.7 | 0.8 | 420 |
10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.6 | 22.8 | 1.0 | 640 |
14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.6 | 24.4 | 1.0 | 770 |
19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.8 | 27.5 | 1.2 | 970 |
24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.2 | 2 | 33.1 | 1.4 | 1290 |
30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.1 | 35.5 | 1.5 | 1620 |
37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.2 | 38.4 | 1.6 | 1890 |
48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.4 | 44.3 | 1.7 | 2420 |
(FA-) TTYCS,TTPYCS
No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Dia. of shield wire |
Thick. of bedding |
Dia. of steel wire |
(FA-) TTYCS,TTPYCS | ||||
---|---|---|---|---|---|---|---|---|---|---|
Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
|||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 0.3 | 10.1 | 0.4 | 180 |
1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 0.3 | 10.6 | 0.4 | 205 |
1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 0.3 | 11.3 | 0.5 | 230 |
2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.2 | 0.3 | 14.6 | 0.7 | 230 |
4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.3 | 0.3 | 16.3 | 0.7 | 405 |
7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.4 | 0.3 | 19 | 0.7 | 545 |
10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.6 | 0.3 | 24.1 | 1 | 800 |
14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.6 | 0.3 | 25.7 | 1 | 935 |
19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.8 | 0.3 | 28.8 | 1.2 | 1160 |
24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.2 | 2 | 0.4 | 34.9 | 1.4 | 1600 |
30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.1 | 0.4 | 37.3 | 1.5 | 1950 |
37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.2 | 0.4 | 40.2 | 1.6 | 2250 |
48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.4 | 0.4 | 46.1 | 1.7 | 2830 |
(FA-) TTYCYS,TTPYCYS
No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Dia. of shield wire |
Thick. of bedding |
Dia. of steel wire |
Thick. of covering |
(FA-) TTYCYS,TTPYCYS | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
||||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 0.3 | 0.9 | 12.1 | 0.5 | 230 |
1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 0.3 | 0.9 | 12.6 | 0.5 | 255 |
1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.14 | 1.1 | 0.3 | 0.9 | 13.3 | 0.5 | 285 |
2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.2 | 0.3 | 1 | 16.7 | 0.7 | 285 |
4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.3 | 0.3 | 1 | 18.5 | 0.7 | 490 |
7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.16 | 1.4 | 0.3 | 1.1 | 21.4 | 0.9 | 650 |
10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.6 | 0.3 | 1.2 | 26.7 | 1.1 | 945 |
14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.6 | 0.3 | 1.2 | 28.3 | 1.1 | 1090 |
19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.18 | 1.8 | 0.3 | 1.3 | 31.6 | 1.3 | 1340 |
24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.2 | 2 | 0.4 | 1.5 | 38.3 | 1.5 | 1860 |
30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.1 | 0.4 | 1.5 | 40.7 | 1.6 | 2230 |
37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.2 | 0.4 | 1.6 | 43.8 | 1.7 | 2570 |
48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 0.26 | 2.4 | 0.4 | 1.8 | 50.1 | 1.8 | 3240 |
