JIS C 3410 Shipboard Cables 250V
FA-] TTY, TTYC, TTYCY
[FA-] TTPY, TTPYC, TTPYCY
STANDARDS
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

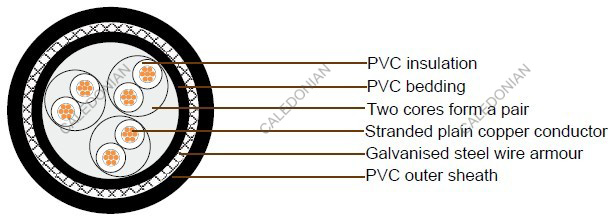

CABLE CONSTRUCTION
Conductor | TT TTP |
Tinned annealed stranded copper (TTY-type) Tinned annealed stranded copper (TTPY-type), class 2 according to IEC 60228 |
---|---|---|
Insulation | 60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3401 | |
Twisting | Two Insulated cores shall be twisted together to form a pair | |
Cabling | Twisted pairs shall be cabled. Flame retardant & non-hygroscopic fillers may be used | |
Bedding | Y | PVC as per JIS C 3401 |
Armor | C | Galvanized steel wire braid |
Sheath | Y | PVC as per JIS C 3401 |
Core identification | Printed pair number and Alphabet letter on the white insulation. ex) 4P : (1A, 1B), (2A, 2B), (3A, 3B), (4A, 4B) - 1T, 1Q cable shall be identified by the black number on the white insulation | |
Outer sheath color | Black |
Cable Parameter
(FA-) TTY,TTPY
No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Thick. of bedding |
(FA-) TTY,TTPY | ||||
---|---|---|---|---|---|---|---|---|
Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
|||
mm² | No./mm | mm | mm | mm | mm | mm | kg/km | |
1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1 | 7.9 | 0.4 | 70 |
1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 8.6 | 0.4 | 85 |
1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 9.3 | 0.4 | 105 |
2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.2 | 12 | 0.6 | 105 |
4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.3 | 14.2 | 0.6 | 205 |
7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.4 | 16.9 | 0.7 | 310 |
10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.5 | 21.7 | 0.9 | 465 |
14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.6 | 23.5 | 1 | 585 |
19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.7 | 26.4 | 1.1 | 755 |
24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.9 | 31.9 | 1.3 | 1030 |
30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2 | 34 | 1.4 | 1220 |
37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.1 | 36.9 | 1.5 | 1450 |
48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.3 | 42.8 | 1.7 | 1910 |
(FA-) TTYC,TTPYC
No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Thick. of bedding |
Dia. of steel wire |
(FA-) TTYC,TTPYC | ||||
---|---|---|---|---|---|---|---|---|---|
Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1 | 0.3 | 9.2 | 0.4 | 130 |
1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 9.9 | 0.4 | 155 |
1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 10.6 | 0.4 | 180 |
2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.2 | 0.3 | 13.6 | 0.6 | 180 |
4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.3 | 0.3 | 15.5 | 0.6 | 320 |
7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.4 | 0.3 | 18.2 | 0.7 | 440 |
10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.5 | 0.3 | 23 | 0.9 | 640 |
14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.6 | 0.3 | 24.8 | 1 | 770 |
19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.7 | 0.3 | 27.7 | 1.1 | 965 |
24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.9 | 0.4 | 33.7 | 1.3 | 1380 |
30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2 | 0.4 | 35.8 | 1.4 | 1590 |
37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.1 | 0.4 | 38.7 | 1.5 | 1860 |
48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.3 | 0.4 | 44.6 | 1.7 | 2380 |
(FA-) TTYCY,TTPYCY
No. of pair, Triad or Quad |
Conductor | Thick. of insulation |
Thick. of bedding |
Dia. of steel wire |
Thick. of covering |
(FA-) TTYCY,TTPYCY | ||||
---|---|---|---|---|---|---|---|---|---|---|
Size | Construction | O.D | Nom. overall dia |
Tolerance | Cable Weight |
|||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | kg/km | |
1 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1 | 0.3 | 0.8 | 11 | 0.4 | 170 |
1T | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 0.9 | 11.7 | 0.5 | 205 |
1Q | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.1 | 0.3 | 0.9 | 12.6 | 0.5 | 230 |
2 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.2 | 0.3 | 0.9 | 15.5 | 0.7 | 230 |
4 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.3 | 0.3 | 1 | 17.7 | 0.7 | 400 |
7 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.4 | 0.3 | 1.1 | 20.6 | 0.8 | 545 |
10 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.5 | 0.3 | 1.2 | 25.6 | 1 | 775 |
14 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.6 | 0.3 | 1.2 | 27.4 | 1.1 | 920 |
19 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.7 | 0.3 | 1.3 | 30.5 | 1.2 | 1140 |
24 | 0.75 | 7/0.37 | 1.1 | 0.7 | 1.9 | 0.4 | 1.4 | 36.7 | 1.5 | 1610 |
30 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2 | 0.4 | 1.5 | 39.2 | 1.6 | 1860 |
37 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.1 | 0.4 | 1.6 | 42.3 | 1.6 | 2170 |
48 | 0.75 | 7/0.37 | 1.1 | 0.7 | 2.3 | 0.4 | 1.7 | 48.4 | 1.8 | 2760 |
