JIS C 3410 Shipboard Cables 250V

[FA-] MPY, MPYC, MPYCY

JIS C 3410 Shipboard Cables 250V

STANDARDS

JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

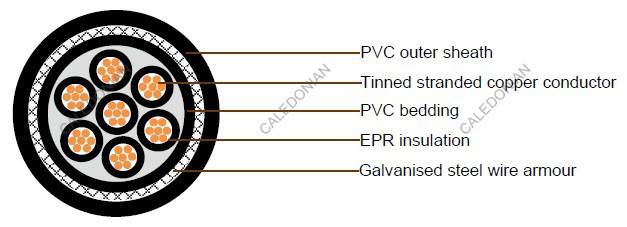

CABLE CONSTRUCTION

Conductor M Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling   Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Bedding Y PVC as per JIS C 3401
Armor C Galvanized steel wire braid
Sheath Y PVC as per JIS C 3401
Core identification   Black No. on white insulation /Black No. on white insulation, G/Y
Outer sheath color   Black

Cable Parameter

250V (FA-) MPY

No. of
cores
Conductor Thick. of
insulation
Thick. of
bedding
(FA-) MPY
Size Construction O.D Nom.
overall dia
Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm kg/km
2 1 7/0.43 1.29 0.7 1.1 8.7 0.4 85
4 1 7/0.43 1.29 0.7 1.1 9.9 0.4 125
7 1 7/0.43 1.29 0.7 1.2 11.9 0.5 190
12 1 7/0.43 1.29 0.7 1.3 15.5 0.7 315
19 1 7/0.43 1.29 0.7 1.4 18.3 0.8 465
27 1 7/0.43 1.29 0.7 1.6 22.1 0.9 665
37 1 7/0.43 1.29 0.7 1.7 24.8 1 870
44 1 7/0.43 1.29 0.7 1.8 28 1.2 1160
77 1 7/0.43 1.29 0.7 2.1 35.9 1.5 1790

250V (FA-) MPYC

No. of
cores
Conductor Thick. of
insulation
Thick. of
bedding
Dia. of
steel wire
(FA-) MPYC
Size Construction O.D Nom.
overall dia
Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm kg/km
2 1 7/0.43 1.29 0.7 1.1 0.3 10 0.4 155
4 1 7/0.43 1.29 0.7 1.1 0.3 11.2 0.4 205
7 1 7/0.43 1.29 0.7 1.2 0.3 13.2 0.5 290
12 1 7/0.43 1.29 0.7 1.3 0.3 16.8 0.7 445
19 1 7/0.43 1.29 0.7 1.4 0.3 19.6 0.8 615
27 1 7/0.43 1.29 0.7 1.6 0.3 23.4 0.9 840
37 1 7/0.43 1.29 0.7 1.7 0.3 26.1 1 1070
44 1 7/0.43 1.29 0.7 1.8 0.3 29.3 1.2 1290
77 1 7/0.43 1.29 0.7 2.1 0.4 37.7 1.5 2180

250V (FA-) MPYCY

No. of
cores
Conductor Thick. of
insulation
Thick. of
bedding
Dia. of
steel wire
Thick. of
covering
(FA-) MPYCY
Size Construction O.D Nom.
overall
dia
Tolerance Cable
Weight
mm² No./mm mm mm mm mm mm mm mm kg/km
2 1 7/0.43 1.29 0.7 1.1 0.3 0.9 12 0.5 205
4 1 7/0.43 1.29 0.7 1.1 0.3 0.9 13.2 0.5 260
7 1 7/0.43 1.29 0.7 1.2 0.3 0.9 15.2 0.6 350
12 1 7/0.43 1.29 0.7 1.3 0.3 1 19 0.8 530
19 1 7/0.43 1.29 0.7 1.4 0.3 1.1 22 0.9 720
27 1 7/0.43 1.29 0.7 1.6 0.3 1.2 26 1 980
37 1 7/0.43 1.29 0.7 1.7 0.3 1.3 28.9 1.2 1240
44 1 7/0.43 1.29 0.7 1.8 0.3 1.3 32.1 1.3 1470
77 1 7/0.43 1.29 0.7 2.1 0.4 1.5 41.1 1.6 2470
