JIS C 3410 Shipboard Cables 0.6/1kV

DPNP, TPNP, FPNP

JIS C 3410 Shipboard Cables 0.6/1kV

STANDARDS

JISC 3410-1999
IEC 60332-1

CABLE CONSTRUCTION

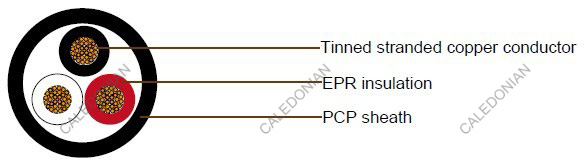

Conductor D(T,F) Tinned annealed stranded copper, class 5 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling   Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Sheath NP PCP as per JIS C 3410
Core identification   2C Black, White 3C Black, White, Red 4C Black, White, Red, Green
Outer sheath color   Black

Cable Parameter

No. of
Cores
Conductor Thick. of insulation Thick. of
Sheath
Nom. overall dia. Tolerance Cable
Weight
Size Construction O.D
mm² No./mm mm mm mm mm mm kg/km
2 0.75 24/0.20 1.13 1 1.4 9.7 0.4 130
2 1 32/0.20 1.27 1 1.4 9.9 0.4 135
2 1.5 30/0.25 1.58 1 1.5 10.8 0.4 165
2 2.5 49/0.25 2.02 1 1.6 11.8 0.5 205
2 4 55/0.30 2.57 1 1.7 13.1 0.5 265
2 6 82/0.30 3.14 1 1.8 14.5 0.6 340
3 0.75 24/0.20 1.13 1 1.4 10.2 0.4 145
3 1 32/0.20 1.27 1 1.5 10.7 0.4 160
3 1.5 30/0.25 1.58 1 1.5 11.4 0.5 190
3 2.5 49/0.25 2.02 1 1.6 12.5 0.5 240
3 4 55/0.30 2.57 1 1.8 14.1 0.6 325
3 6 82/0.30 3.14 1 1.9 15.6 0.6 420
4 0.75 24/0.20 1.13 1 1.5 11.3 0.5 175
4 1 32/0.20 1.27 1 1.6 11.8 0.5 200
4 1.5 30/0.25 1.58 1 1.6 12.2 0.5 225
4 2.5 49/0.25 2.02 1 1.8 14.1 0.6 310
4 4 55/0.30 2.57 1 1.9 15.6 0.6 405
4 6 82/0.30 3.14 1 2 17.2 0.7 525
