RSE/STD/024 Part 6 Types VI Rolling Stock Cables
600/1000V Multicore Standard Wall Cables
Application
These cables are used as power and control cables for protected, fixed installation inside railway vehicles

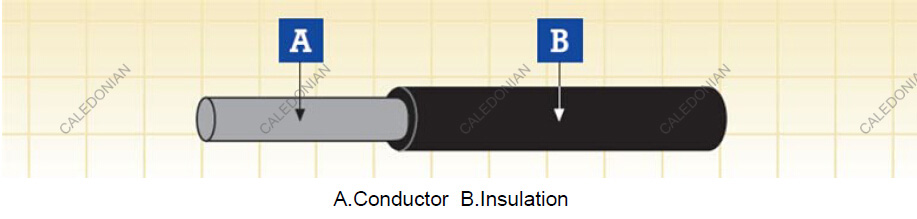

Construction
Conductor |
Flexible Stranded Tinned Copper |
Insulation |
Cross linked EPR rubber type EI 107 |
Sheath |
Cross linked EVA rubber type EM 104 |
Chemical & Environmental Properties
EN 60684-2 |
No fluorine |
EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
DIN 5510-2 |
Protection level 1/2/3/4 |
BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
NF F 16-101 |
FO |
Fire Performance in general
EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire/cable |
EN 50266-2-4 + EN 50305; IEC 60332-3C |
Fire propagation of bunched wires and cables |
VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
NFF 16101; NFF 63808; BS6853 |
Smoke index |
No.of core |
Nominal Cross
Sectional Area |
Nominal Diameter of
Strands |
Nominal Overall
Diameter |
Nominal Weight |
Maximum Conductor
Resistance@20℃ |
mm2 |
No/mm |
mm |
kg/km |
Ω/km |
10 |
2.5 |
50/0.25 |
28.1 |
1148 |
8.21 |
20 |
4.0 |
56/0.30 |
42.7 |
2421 |
5.09 |
