EN 50264 Medium Wall Power & Control Rolling Stock Cable
FIREROL FRL-MW-05M-OS-AS+, FRL-MW-1M-OS-AS+

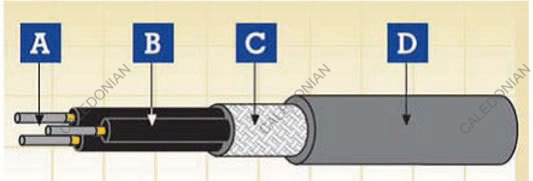

A.Conductor B.Insulation C.Screen D.Sheath

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction

Conductor
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Insulation
LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 110)

Overal screen
Tinned annealed copper wires

Outer sheath
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104

Electrical & Mechanical Properties

Nominal Voltage	300/500 V or 0.6/1 kV
Maximum Conductor Temperature	+90 deg (fixed installation)
Minimum Permissible Ambient Temperature	-25/-40 deg (fixed installation)
Bending Radius	10 x Overall Diameter (D<12mm);

Chemical & Environmental Properties

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3
EN50200	PH15, PH30, PH60

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853	Low Toxicity
NFF 16101; NFF 63808; BS6853	Smoke index
IEC60331-21	The circuit integrity test under fire of cables rated 0.6/1.0kV and below
EN45545-2	Requirement for fire behavior of materials & components R15/R16
EN 50200:2006	Resistance to fire of unprotected small cable for use in emergency circuits. 5 classifications are defined: PH 15,30,60, 90 or 120 90 mins.

FRL-MW-05M-OS-AS+ 300/500 V

Nominal Cross-Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
											EI 110	EI 106/7/8/9
			Min.	Max.			Min.	Max.		20°C	20°C	20°C
n x mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
2 x 1	1.25	0.4	2.24	2.64	0.16	0.6	6.24	7.34	81	20.0	15.0	7.5
4 x 1	1.25	0.4	2.24	2.64	0.16	0.7	7.24	8.44	132	20.0	15.0	7.5
7 x 1	1.25	0.4	2.24	2.64	0.16	0.7	8.44	9.84	203	20.0	15.0	7.5
9 x 1	1.25	0.4	2.24	2.64	0.21	0.8	10.44	12.14	275	20.0	15.0	7.5
12 x 1	1.25	0.4	2.24	2.64	0.21	0.8	11.14	12.94	346	20.0	15.0	7.5
19 x 1	1.25	0.4	2.24	2.64	0.26	1.0	13.44	15.64	538	20.0	15.0	7.5
24 x 1	1.25	0.4	2.24	2.64	0.26	1.0	15.44	18.04	667	20.0	15.0	7.5
32 x 1	1.25	0.4	2.24	2.64	0.26	1.0	16.84	19.64	846	20.0	15.0	7.5
37 x 1	1.25	0.4	2.24	2.64	0.26	1.0	17.44	20.34	953	20.0	15.0	7.5
40 x 1	1.25	0.4	2.24	2.64	0.26	1.2	18.44	21.54	1044	20.0	15.0	7.5
4 x 1.5	1.5	0.5	2.64	3.14	0.16	0.7	8.24	9.64	180	13.7	14.0	7.0
7 x 1.5	1.5	0.5	2.64	3.14	0.21	0.7	9.84	11.54	295	13.7	14.0	7.0
9 x 1.5	1.5	0.5	2.64	3.14	0.21	1.0	12.34	14.44	395	13.7	14.0	7.0
12 x 1.5	1.5	0.5	2.64	3.14	0.21	1.0	13.24	15.44	497	13.7	14.0	7.0
19 x 1.5	1.5	0.5	2.64	3.14	0.26	1.0	15.54	18.14	750	13.7	14.0	7.0
24 x 1.5	1.5	0.5	2.64	3.14	0.26	1.2	18.34	21.44	955	13.7	14.0	7.0
32 x 1.5	1.5	0.5	2.64	3.14	0.26	1.2	20.04	23.44	1215	13.7	14.0	7.0
37 x 1.5	1.5	0.5	2.64	3.14	0.26	1.2	20.74	24.24	1372	13.7	14.0	7.0
4 x 2.5	1.95	0.5	3.14	3.64	0.21	0.7	9.44	11.04	249	8.21	13.0	6.5
7 x 2.5	1.95	0.5	3.14	3.64	0.21	0.8	11.34	13.24	398	8.21	13.0	6.5
9 x 2.5	1.95	0.5	3.14	3.64	0.26	1.0	14.14	16.54	539	8.21	13.0	6.5
12 x 2.5	1.95	0.5	3.14	3.64	0.26	1.0	15.24	17.74	681	8.21	13.0	6.5
19 x 2.5	1.95	0.5	3.14	3.64	0.26	1.2	18.04	21.04	1027	8.21	13.0	6.5
24 x 2.5	1.95	0.5	3.14	3.64	0.26	1.2	20.84	24.34	1278	8.21	13.0	6.5

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information,indicative only

FRL-MW-1M-OS-AS+ 0.6/1 kV

Nominal Cross-Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
											EI 110	EI 106/7/8/9
			Min.	Max.			Min.	Max.		20°C	20°C	20°C
mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
TWO CORES
1.5	1.5	0.7	3.04	3.54	0.16	0.70	8.14	10.14	121	13.7	21.0	10.5
2.5	1.95	0.7	3.44	4.04	0.16	0.70	8.94	10.94	157	8.21	17.2	8.6
4	2.5	0.7	4.04	4.64	0.21	0.80	10.44	12.94	224	5.09	14.2	7.1
6	3.0	0.7	4.44	5.24	0.21	0.80	11.14	13.84	287	3.39	12.2	6.1
10	3.9	0.7	5.34	6.14	0.21	1.00	13.64	16.84	424	1.95	9.8	4.9
16	5.0	0.7	6.34	7.44	0.26	1.00	16.24	20.04	606	1.24	7.9	3.9
25	6.4	0.9	8.04	9.34	0.26	1.20	20.04	24.84	909	0.795	7.3	3.6
35	7.7	0.9	9.24	10.84	0.31	1.40	23.04	28.14	1213	0.565	6.7	3.3
50	9.2	1.0	10.84	12.64	0.31	1.40	26.64	32.54	1631	0.393	6.3	3.1
THREE CORES
1.5	1.5	0.7	3.04	3.54	0.16	0.70	8.64	10.64	156	13.7	21.0	10.5
2.5	1.95	0.7	3.44	4.04	0.16	0.70	9.44	11.64	207	8.21	17.2	8.6
4	2.5	0.7	4.04	4.64	0.21	0.80	11.04	13.54	295	5.09	14.2	7.1
6	3.0	0.7	4.44	5.24	0.21	0.80	11.84	14.54	384	3.39	12.2	6.1
10	3.9	0.7	5.34	6.14	0.26	1.00	14.64	18.24	593	1.95	9.8	4.9
16	5.0	0.7	6.34	7.44	0.26	1.20	17.64	21.54	848	1.24	7.9	3.9
25	6.4	0.9	8.04	9.34	0.26	1.20	21.54	26.34	1251	0.795	7.3	3.6
35	7.7	0.9	9.24	10.84	0.31	1.40	24.74	30.04	1674	0.565	6.7	3.3
50	9.2	1.0	10.84	12.64	0.31	1.60	28.54	34.84	2309	0.393	6.3	3.1
FOUR CORES
1.5	1.5	0.7	3.04	3.54	0.16	0.70	9.34	11.54	194	13.7	21.0	10.5
2.5	1.95	0.7	3.44	4.04	0.21	0.80	10.64	13.14	280	8.21	17.2	8.6
4	2.5	0.7	4.04	4.64	0.21	0.80	12.04	14.74	371	5.09	14.2	7.1
6	3.0	0.7	4.44	5.24	0.21	1.00	13.34	16.34	503	3.39	12.2	6.1
10	3.9	0.7	5.34	6.14	0.26	1.00	16.14	19.74	752	1.95	9.8	4.9
16	5.0	0.7	6.34	7.44	0.26	1.20	19.54	23.84	1082	1.24	7.9	3.9
25	6.4	0.9	8.04	9.34	0.31	1.40	24.24	29.54	1666	0.795	7.3	3.6
3x35+25	7.7/6.4	0.9/0.9	9.24/8.04	10.84/9.34	0.31	1.40	27.14	33.14	2152	0.565/0.795	6.7	3.3
3x50+25	9.2/6.4	1.0/0.9	10.84/8.04	12.64/9.34	0.31	1.60	31.74	38.44	2946	0.393/0.795	6.3	3.1

(a)= For information,indicative only
