EN 50264 Medium Wall Power & Control Rolling Stock Cable
FIREROL FRL-MW-05M/FRL-MW-1M

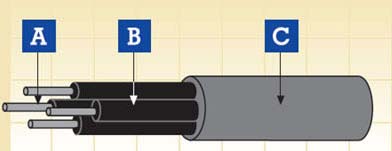

EN 50264  Rolling Stock Cable FRL-MW-05M/FRL-MW-1M

A.Conductor B.Insulation C.Sheath

Application

-Used as EN 50264 Medium Wall power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction

Conductor
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Insulation
LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 110)

Outer sheath
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

Electrical & Mechanical Properties

Nominal Voltage 300/500 V or 0.6/1 kV
Maximum Conductor Temperature +90 deg (fixed installation)
Minimum Permissible Ambient Temperature -25/-40 deg (fixed installation)
Bending Radius 3 x Overall Diameter (D<12mm);
4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2, HL3
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 F0
EN45545-2
R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3C; Fire propagation of bunched wires and cables;
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
NFF 16101; NFF 63808; BS6853 Smoke index
EN45545-2 Requirement for fire behavior of materials & components R15/R16

FRL-MW-05M 300/500V

NOMINAL
CROSS-SECTIONAL
AREA (a)
CONDUCTOR DIAMETER (b) MIN.
MEAN THIC
KNESS OF INSUL
ATION
CORE DIM
ENSIONS
MIN. AVERAGE SHEATH THICK
NESS
OVERALL DIAM
ETER MIN.
OVERALL DIAMETER MAX. WE
IGHT
RESISTANCE OF CONDUCTOR AT +20°C INSULATION RESISTANCE AT +20°CEI 110 INSULATION RESISTANCE AT +20°C EI 106/7/8/9
MIN. ACC.TO EN MAX. ACC
.TO EN
max min min
mm2 mm mm mm mm mm mm mm Kg/
km
Ω/km MΩ·km MΩ·km
2 x 1 1.25 0.4 2.0 2.4 0.6 5.3 6.2 40 20.0 15.0 7.5
4 x 1 1.25 0.4 2.0 2.4 0.6 6.1 7.2 70 20.0 15.0 7.5
7 x 1 1.25 0.4 2.0 2.4 0.7 7.5 8.7 120 20.0 15.0 7.5
9 x 1 1.25 0.4 2.0 2.4 0.7 9.1 10.6 160 20.0 15.0 7.5
12 x 1 1.25 0.4 2.0 2.4 0.7 9.8 11.5 190 20.0 15.0 7.5
19 x 1 1.25 0.4 2.0 2.4 0.8 11.7 13.7 290 20.0 15.0 7.5
24 x 1 1.25 0.4 2.0 2.4 1.0 14.1 16.5 390 20.0 15.0 7.5
32 x 1 1.25 0.4 2.0 2.4 1.0 15.5 18.2 490 20.0 15.0 7.5
37 x 1 1.25 0.4 2.0 2.4 1.0 16.1 18.9 550 20.0 15.0 7.5
40 x 1 1.25 0.4 2.0 2.4 1.0 16.7 19.6 600 20.0 15.0 7.5

4 x 1.5 1.5 0.5 2.4 2.9 0.7 7.3 8.6 110 13.7 14.0 7.0
7 x 1.5 1.5 0.5 2.4 2.9 0.7 8.7 10.2 170 13.7 14.0 7.0
9 x 1.5 1.5 0.5 2.4 2.9 0.8 10.9 12.7 230 13.7 14.0 7.0
12 x 1.5 1.5 0.5 2.4 2.9 0.8 11.8 13.8 280 13.7 14.0 7.0
19 x 1.5 1.5 0.5 2.4 2.9 1.0 14.2 16.6 440 13.7 14.0 7.0
24 x 1.5 1.5 0.5 2.4 2.9 1.0 16.6 19.5 560 13.7 14.0 7.0
32 x 1.5 1.5 0.5 2.4 2.9 1.2 18.7 21.9 720 13.7 14.0 7.0
37 x 1.5 1.5 0.5 2.4 2.9 1.2 19.5 22.8 820 13.7 14.0 7.0

4 x 2.5 1.95 0.5 2.9 3.4 0.7 8.3 9.8 150 8.21 13.0 6.5
7 x 2.5 1.95 0.5 2.9 3.4 0.8 10.2 11.9 240 8.21 13.0 6.5
9 x 2.5 1.95 0.5 2.9 3.4 1.0 12.9 15.1 350 8.21 13.0 6.5
12 x 2.5 1.95 0.5 2.9 3.4 1.0 13.9 16.3 420 8.21 13.0 6.5
19 x 2.5 1.95 0.5 2.9 3.4 1.0 16.3 19.1 640 8.21 13.0 6.5
24 x 2.5 1.95 0.5 2.9 3.4 1.2 19.6 22.9 840 8.21 13.0 6.5

(a)= One earth conductor (green/yellow) can be included upon request
(b)= For information,indicative only

FRL-MW-1M 0.6/1kV

NOMINAL CROSS-SECTIONAL AREA COND
UCTOR DIAMETER (a)
MIN. MEAN THICK NESS OF INSUL ATION CORE D
IMENSIONS
MIN. AVERAGE SHEATH THICKNESS OVERALL DIAMETER MIN. OVERALL DIAMETER MAX. WE
IGHT
RESISTANCE OF CONDUCTOR AT +20°C INSULATION RESISTANCE AT +20°CEI 110 INSULATION RESISTANCE AT +20°C EI 106/7/8/9
MIN. ACC.TO EN MAX. A
CC.TO EN
max min min
mm2 mm mm mm mm mm mm mm Kg
/km
Ω/km MΩ·km MΩ·km
TWO CORES
1.5 1.5 0.7 2.8 3.3 0.70 7.2 9.0 70 13.7 21.0 10.5
2.5 1.95 0.7 3.2 3.8 0.70 8.0 10.0 100 8.21 17.2 8.6
4 2.5 0.7 3.8 4.4 0.70 9.1 11.3 130 5.09 14.2 7.1
6 3.0 0.7 4.2 5.0 0.80 10.1 12.4 170 3.39 12.2 6.1
10 3.9 0.7 5.1 5.9 1.00 12.5 15.4 290 1.95 9.8 4.9
16 5.0 0.7 6.1 7.2 1.00 14.9 18.4 390 1.24 7.9 3.9
25 6.4 0.9 7.8 9.1 1.20 18.7 23.0 590 0.795 7.3 3.6
35 7.7 0.9 9.0 10.6 1.20 21.2 25.9 790 0.565 6.7 3.3
50 9.2 1.0 10.6 12.4 1.40 25.1 30.7 1140 0.393 6.3 3.1
THREE CORES
1.5 1.5 0.7 2.8 3.3 0.70 7.7 9.5 100 13.7 21.0 10.5
2.5 1.95 0.7 3.2 3.8 0.70 8.5 10.5 130 8.21 17.2 8.6
4 2.5 0.7 3.8 4.4 0.70 9.7 12.0 180 5.09 14.2 7.1
6 3.0 0.7 4.2 5.0 0.80 10.7 13.2 250 3.39 12.2 6.1
10 3.9 0.7 5.1 5.9 1.00 13.3 16.5 410 1.95 9.8 4.9
16 5.0 0.7 6.1 7.2 1.00 16.0 19.6 570 1.24 7.9 3.9
25 6.4 0.9 7.8 9.1 1.20 20.0 24.7 850 0.795 7.3 3.6
35 7.7 0.9 9.0 10.6 1.40 23.0 28.2 1160 0.565 6.7 3.3
50 9.2 1.0 10.6 12.4 1.60 26.3 32.2 1680 0.393 6.3 3.1
FOUR CORES
1.5 1.5 0.7 2.8 3.3 0.70 8.5 10.5 120 13.7 21.0 10.5
2.5 1.95 0.7 3.2 3.8 0.70 9.4 11.6 170 8.21 17.2 8.6
4 2.5 0.7 3.8 4.4 0.80 10.9 13.4 240 5.09 14.2 7.1
6 3.0 0.7 4.2 5.0 1.00 12.2 14.9 330 3.39 12.2 6.1
10 3.9 0.7 5.1 5.9 1.00 14.7 18.2 540 1.95 9.8 4.9
16 5.0 0.7 6.1 7.2 1.20 18.0 22.1 750 1.24 7.9 3.9
25 6.4 0.9 7.8 9.1 1.40 22.6 27.6 1140 0.795 7.3 3.6
3 x 35 + 25 7.7/6.4 0.9/0.9 9.0/7.8 10.6/9.1 1.40 25.7 31.2 1486 0.565/0.795 6.7 3.3
3 x 50 + 25 9.2/6.4 1.0/0.9 10.6/7.8 12.4/9.1 1.60 30.0 36.5 2106 0.393/1.795 6.3 3.1

(a)= For information,indicative only
