NF F 63-826 Standard Wall Power & Control Cable
FIREROL FRF-SW-1.5SU-EF

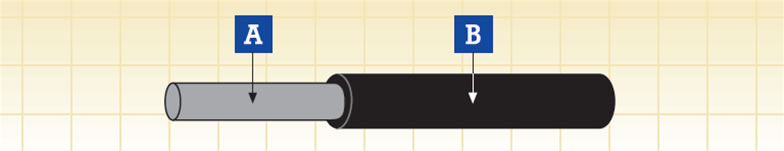

A. Conductor B. Insulation
Application
These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for use in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
Stranded tinned copper wires to IEC 60228 Class 6
Insulation
Special halogen free compound
Electrical & Mechanical Properties
| Nominal Voltage | 1500V |
| Maximum Conductor Temperature | 90°C/105°C |
| Minimum Permissible Ambient Temperature | -25°C~90°C |
| Bending Radius | 3 × Overall Diameter |
Standards
NF F 63-826
NF F 16-101
BS 6853
EN45545-2
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRF-SW-1.5SU-EF 1500V
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Insulation Thickness | Overall Diameter | Weight | |
|---|---|---|---|---|---|
| Min. | Max. | ||||
| mm² | No/mm | mm | mm | mm | kg/km |
| 10.0 | 320/0.20 | 2.3 | 8.4 | 9.5 | 187 |
| 16.0 | 512/0.20 | 2.3 | 9.7 | 10.8 | 266 |
| 25.0 | 800/0.20 | 2.3 | 11.0 | 12.2 | 354 |
| 35.0 | 1120/0.20 | 2.4 | 12.4 | 13.7 | 440 |
| 50.0 | 705/0.30 | 2.5 | 14.2 | 15.5 | 613 |
| 70.0 | 990/0.30 | 2.7 | 16.1 | 17.7 | 875 |
| 95.0 | 1340/0.30 | 2.7 | 18.0 | 19.8 | 1045 |
| 120.0 | 1690/0.30 | 2.8 | 20.0 | 21.9 | 1350 |
| 150.0 | 2123/0.30 | 2.8 | 21.8 | 23.8 | 1650 |
| 185.0 | 1470/0.40 | 2.9 | 23.7 | 25.9 | 2130 |
