EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05S-OS

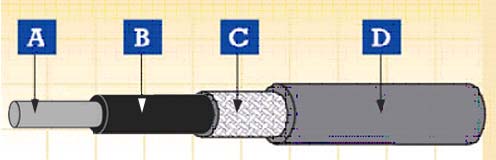

A.Conductor B.Insulation C.Screen D.Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Insulation
LSZH special compound
Overal screen
Tinned annealed copper wires
Outer sheath
LSZH special compound (S1 & S2)
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V |
| Maximum Conductor Temperature | +120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
| Bending Radius | 10 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to oil & fuel |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN45545-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; | Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 | |
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 | Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 | Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Toxicity index |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
| EN45545-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
FRL-TW-05S-OS 300/500 V
| NUMBER OF CORES AND NOMINAL CROSS SECTION | MINIMUM THICKNESS OF SHEATH AT ANY POINT | OVERALL DIAMETER | WEIGHT | |
|---|---|---|---|---|
| (mm2) | (mm) | min. (mm) | max. (mm) | (kg/km) |
| 1 x 0.5 | 0.20 | 2.3 | 2.8 | 10 |
| 1 x 0.75 | 0.20 | 2.5 | 3.0 | 20 |
| 1 x 1 | 0.20 | 2.7 | 3.2 | 25 |
| 1 x 1.5 | 0.20 | 3.1 | 3.6 | 30 |
| 1 x 2.5 | 0.20 | 3.6 | 4.4 | 40 |
