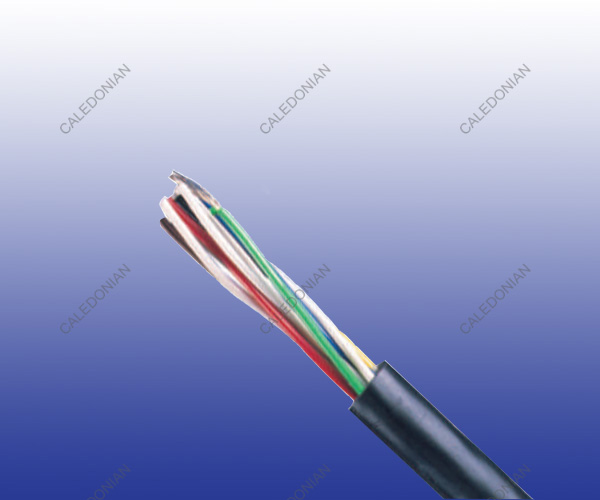

ZUG/ ZUT/ SUG Indoor Equipment Cables

Application

The ZUG/ ZUT/ SUG Indoor Equipment Cables are used as cabling for the relays and electronic equipments in the Traffic Control Center and Trackside Equipment Shelter. The ZUG/ ZUT/ SUG Indoor Equipment Cables are suitable for indoor interconnection of railway network equipments.

Standards

SNCF CT 455

Construction

Conductors
Class 5 stranded tinned copper, 1 mm² or 0.38 mm² cross section.

Insulation
Coloured PVC.

Cabling Element
Pairs (for ZUG/ZUT)/Cores (for SUG).

Core Wrapping (optional)
Plastic tape(s) with overlapping.

Screen (optional)
Tinned copper braid for electrostatic protection (only for ZUT type).

Sheath
Black FRPVC compound. LSZH option can be offered upon request.

Electrical Characteristics at 20℃

No of Strands/ Strand Diameter	No/mm	12/0.2	32/0.2
Nominal Cross Section Area	mm²	0.38	1
Maximum Conductor Resistance (DC)	Ω/km	52.5	20.1
perating Voltage	V	450/750	450/750

Mechanical and Thermal Properties

Minimum Bending Radius: 4×OD (static); 8×OD (dynamic)
Operating Temperature: -15℃ to +70℃

Dimensions And Weight

ZUG Cables

Cable Code	Number of Pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
12/0.2mm Conductor, 1.4mm Insulated Wire
RS/ZUG-075-YY-28P0.38S	28	0.7	15.7	310
32/0.2mm Conductor, 2.09mm Insulated Wire
RS/ZUG-075-YY-1P1S	1	0.7	7.0	59
RS/ZUG-075-YY-3P1S	3	0.7	9.9	108
RS/ZUG-075-YY-6P1S	6	0.7	12.4	184
RS/ZUG-075-YY-12P1S	12	0.7	15.7	335

SUG Cables

Cable Code	Number of Conductors	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
32/0.2mm Conductor, 2.09mm Insulated Wire
RS/SUG-075-YY-3C1S	3	0.7	8	73

ZUT Cables

Cable Code	Number of Pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
32/0.2mm Conductor, 2.09mm Insulated Wire
RS/ZUT-075-YCY-2P1S	2	0.7	9.5	122
RS/ZUT-075-YCY-6P1S	6	0.7	13.5	276
RS/ZUT-075-YCY-12P1S	12	0.7	17.5	445
