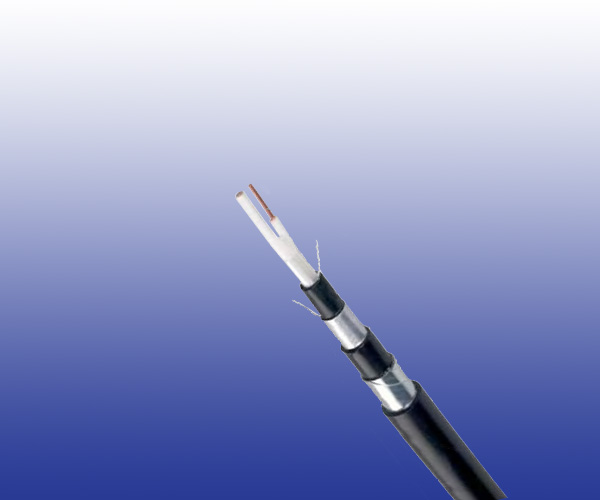

EUROBALISE BGA Railway Signalling Cable

Application

The EUROBALISE BGA Railway Signalling Cables are used as balise cables for ERTMS (European Rail Traffic Management System) railway networks. The cables are armoured and can provide low reduction factor.

Standards

● CEI 20-11
● CEI 20-14
● CEI 20-29
● CEI 20-34
● CEI 46-4
● CEI 103-10

Construction

Conductors
Solid annealed copper, 1.6 mm nominal diameter.

Insulation
Solid polyethylene.

Stranding
Conductors will be stranded with dielectric fi llers in order to get a circular core shape.

Core Wrapping
Plastic tape (s) with overlapping.

Inner Sheath
Low density polyethylene.

Screen
Aluminium/polyethylene tape longitudinally applied and overlapped.

Drain Wire
Tinned copper drain wire

Intermediate Sheath
Low density polyethylene.

Armour
Two galvanized steel tapes.

Outer Sheath
Low density polyethylene.

Electrical Characteristics at 20℃

Nominal Conductor Diameter	mm	1.6
Maximum Conductor Resistance (DC)	Ω/km	21.5
Mutual Capacitance	Ω/km	8.21
Nominal Characteristic Impedance @8.9 KHz	Ω	130
Nominal Characteristic Impedance @560 KHz	Ω	110
Maximum Attenuation @560 KHz	dB/km	3.8
Insulation Resistance	MΩ.km	10000
Minimum Dielectric Strength core to screen (DC)	V	1000
Minimum Dielectric Strength core to core (DC)	V	3000
Reduction Factor @100V/km 50Hz		0.6

Mechanical and Thermal Properties

Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)
Temperature Range: -30℃ to +70℃ (during operation); -20℃ to +50℃ (during installation)

Dimensions And Weight

Cable Code	Number of Pairs	Nominal Sheath Thickness mm			Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Inter.	Outer
1.6mm Conductor, 3.4mm Insulated Wire
RS/BGA-2Y2Y(L)2YB2Y-1P1.6	1	1.0	0.8	1.6	16	334
