Pigtail Rail Connection Cables to SE260L

Application

These connection cables are designed for use in signalling equipment rooms.

Standards

● SE260
● UNE 21123

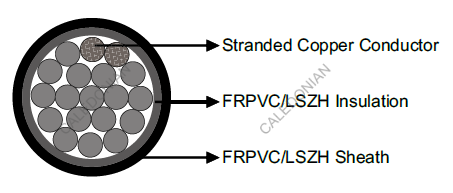

Construction

Conductors
Stranded plain copper conductors to IEC 60228 class 2 or 5.

Insulation
FRPVC.

Outer sheath
FRPVC.

Optional

Limited fi re hazard pigtail rail connection cables: Stranded tinned copper conductors, LSZH composite insulation.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 16
Maximum DC Conductor Resistance Ω/km 1.15/1.16*
Voltage Rating KV 0.6/1.0

*For LSZH cable

Mechanical and Thermal Properties

Minimum Bending Radius: 7.5×OD
Temperature Range:-25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

Dimensions And Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 No. & Nominal
Diameter of
Strands
No/mm		 Nominal
Insulation
Thickness
mm		 Nominal
Sheath
Thickness
mm		 Nominal
Overall
Diameter
mm		 Nominal
Weight
kg/km
RF260-VV-K-0.6/1KV-1G16 1×16 19/1.04 0.7 1.4 10.3 249
RF260-RZ1-K-0.6/1KV-1G16 1×16 19/1.04 0.7 1.4 10.3 255

K is changed to U if the stranding class is changed from class 5 to class 2
