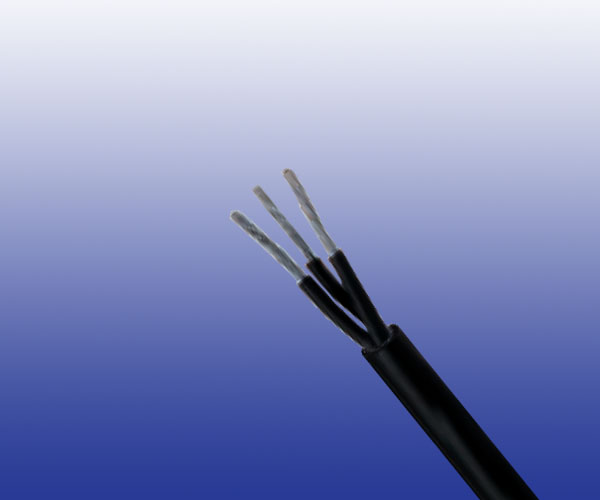

0.6/1KV Multicore Thin Wall Traction Cables

Application

Multicore power and control cable designed for protected, fi xed installation inside and outside railway vehicles for connecting fi xed and moving parts.

Standards

● BS 6853 -1a
● DIN 5510-1 1-4
● NFF 16-101 F0

Construction

Conductors
Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.

Insulation
Electron beam crosslinkable thin wall LSZH compound.

Screen(optional)
Copper Wire Screen (for screened cable).

Outer Sheath
Electron beam crosslinkable LSZH compound.

Optional

FRA-TW-1M-FR (Fire resistant)

Electrical Characteristics at 20℃

Nominal Conductor Cross Section	mm²	0.5	0.75	1.0	1.5	2.5
Maximum Conductor Resistance	Ω/km	40.1	26.7	20.0	13.7	8.21
Voltage Rating	KV	0.6/1.0

Mechanical and Thermal Properties

Minimum Bending Radius:3×OD (OD<12mm); 4×OD (OD>12mm)
Temperature Range:-40℃ to +120℃

Dimensions And Weight

FRA-TW-1M (Multicore unscreened)

Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-TW-1M-2C0.5S	2×0.5	19/0.18	0.3	4.4	31
FRA-TW-1M-3C0.5S	3×0.5	19/0.18	0.3	4.6	36
FRA-TW-1M-4C0.5S	4×0.5	19/0.18	0.3	5.0	43
FRA-TW-1M-5C0.5S	5×0.5	19/0.18	0.3	5.5	53
FRA-TW-1M-6C0.5S	6×0.5	19/0.18	0.3	6.0	62
FRA-TW-1M-2P0.5S	2×2×0.5	19/0.18	0.3	6.5	58
FRA-TW-1M-4P0.5S	4×2×0.5	19/0.18	0.3	8.7	99
FRA-TW-1M-2C0.75S	2×0.75	19/0.22	0.3	4.75	35
FRA-TW-1M-3C0.75S	3×0.75	19/0.22	0.3	5.15	47
FRA-TW-1M-4C0.75S	4×0.75	19/0.22	0.3	5.6	57
FRA-TW-1M-6C0.75S	6×0.75	19/0.22	0.3	6.75	83
FRA-TW-1M-2P0.75S	2×2×0.75	19/0.22	0.3	7.75	81
FRA-TW-1M-2C1S	2×1.0	19/0.25	0.3	5.1	45
FRA-TW-1M-3C1S	3×1.0	19/0.25	0.3	5.4	54
FRA-TW-1M-4C1S	4×1.0	19/0.25	0.3	5.8	64
FRA-TW-1M-6C1S	6×1.0	19/0.25	0.3	7.3	98
FRA-TW-1M-10C1S	10×1.0	19/0.25	0.3	8.7	143
FRA-TW-1M-25C1S	25×1.0	19/0.25	0.3	12.8	324
FRA-TW-1M-2C1.5S	2×1.5	19/0.3	0.3	6.0	63
FRA-TW-1M-3C1.5S	3×1.5*	19/0.3	0.3	6.3	76
FRA-TW-1M-4C1.5S	4×1.5	19/0.3	0.3	6.9	94
FRA-TW-1M-5C1.5S	5×1.5*	19/0.3	0.3	7.8	116
FRA-TW-1M-6C1.5S	6×1.5	19/0.3	0.3	8.45	141
FRA-TW-1M-7C1.5S(G/Y)	7G 1.5	19/0.3	0.3	9.1	165
FRA-TW-1M-8C1.5S	8×1.5	19/0.3	0.3	10.3	201
FRA-TW-1M-10C1.5S	10×1.5	19/0.3	0.3	10.6	216
FRA-TW-1M-18C1.5S	18×1.5	19/0.3	0.3	13.4	374
FRA-TW-1M-25C1.5S(G/Y)	25G 1.5	19/0.3	0.3	15.5	494
FRA-TW-1M-2C2.5S	2×2.5	19/0.4	0.4	7.3	98
FRA-TW-1M-3C2.5S	3×2.5*	19/0.4	0.4	7.8	122
FRA-TW-1M-4C2.5S	4×2.5	19/0.4	0.4	8.7	152
FRA-TW-1M-5C2.5S	5×2.5	19/0.4	0.4	9.4	181
FRA-TW-1M-6C2.5S	6×2.5	19/0.4	0.4	10.6	223

*earth cable can be offered as an option

G: earth cable (yellow/green)

FRA-TW-1M-OS (Multicore screened)

Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-TW-1M-OS-2C0.5S	2×0.5	19/0.18	0.3	4.8	42
FRA-TW-1M-OS-3C0.5S	3×0.5	19/0.18	0.3	5.3	51
FRA-TW-1M-OS-4C0.5S	5×0.5	19/0.18	0.3	5.4	56
FRA-TW-1M-OS-6C0.5S	6×0.5	19/0.18	0.3	6.5	82
FRA-TW-1M-OS-15C0.5S	15×0.5	19/0.18	0.3	9.0	167
FRA-TW-1M-OS-2P0.5S	2×2×0.5	19/0.18	0.3	7.2	80
FRA-TW-1M-OS-3P0.5S	3×2×0.5	19/0.18	0.3	8.1	98
FRA-TW-1M-OS-4P0.5S	4×2×0.5	19/0.18	0.3	9.3	131
FRA-TW-1M-OS-12P0.5S	12×2×0.5	19/0.18	0.3	13.0	276
FRA-TW-1M-OS-2C0.75S	2×0.75	19/0.22	0.3	5.0	48
FRA-TW-1M-OS-4C0.75S	4×0.75	19/0.22	0.3	6.0	72
FRA-TW-1M-OS-6C0.75S	6×0.75	19/0.22	0.3	7.2	103
FRA-TW-1M-OS-10C0.75S	10×0.75	19/0.22	0.3	8.7	152
FRA-TW-1M-OS-18C0.75S	18×0.75	19/0.22	0.3	11.0	244
FRA-TW-1M-OS-3P0.75S	3×2×0.75	19/0.22	0.3	9.0	127
FRA-TW-1M-OS-2C1S	2×1.0	19/0.25	0.3	5.6	60
FRA-TW-1M-OS-3C1S	3×1.0	19/0.25	0.3	6.0	76
FRA-TW-1M-OS-4C1S	4×1.0	19/0.25	0.3	6.5	88
FRA-TW-1M-OS-6C1S	6×1.0	19/0.25	0.3	7.8	114
FRA-TW-1M-OS-8C1S	8×1.0	19/0.25	0.3	8.9	171
FRA-TW-1M-OS-25C1S	25×1.0	19/0.25	0.3	13.8	392
FRA-TW-1M-OS-2P1S	2×2×1.0	19/0.25	0.3	8.3	117
FRA-TW-1M-OS-2C1.5S	2×1.5	19/0.3	0.3	6.5	86
FRA-TW-1M-OS-3C1.5S	3×1.5	19/0.3	0.3	6.8	95
FRA-TW-1M-OS-4C1.5S	4×1.5	19/0.3	0.3	7.4	118
FRA-TW-1M-OS-6C1.5S	6×1.5	19/0.3	0.3	9.0	168
FRA-TW-1M-OS-18C1.5S	18×1.5	19/0.3	0.3	14.4	452
FRA-TW-1M-OS-2C2.5S	2×2.5	19/0.4	0.4	7.8	122
FRA-TW-1M-OS-4C2.5S	4×2.5	19/0.4	0.4	8.4	152
FRA-TW-1M-OS-6C2.5S	6×2.5	19/0.4	0.4	11.4	268
