4GKW-AXplus-DW FE180 1.8/3KV Dual Wall Single Core

Applications :

4GKW-AXplus-DW FE180 1.8/3KV Dual Wall Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

EN45545-2
BS 6853 -1a
DIN 5510-1 1-4
NFF 16-101 F0

4GKW-AXplus-DW FE180 1.8/3KV Railway Cables4GKW-AXplus-DW FE180 1.8/3KV Railway Cables

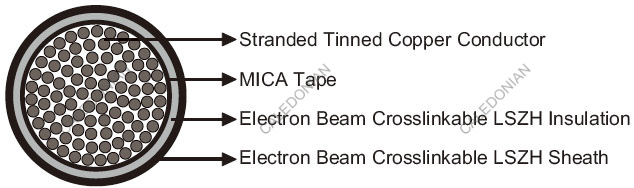

Construction :

Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Flame Barrier : MICA tape.
Insulation : Electron beam crosslinkable LSZH compound.
Sheath : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35 50
Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
Voltage Rating KV 3.6/6
  • Nominal Conductor Cross Section mm² 70 95 120 150 185 240
    Maximum Conductor Resistance Ω/km 0.277 0.21 0.164 0.132 0.108 0.0817
    Voltage Rating KV 3.6/6
  • Mechanical and Thermal Properties :

    Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
    Temperature Range : -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing).
    Short Circuit Temperature : +280℃.

    Dimensions and Weight :

    No. of cores& Nominal
    Conductor Cross
    Sectional Area
    No.×mm²
    Number and Nominal Diameter of Strands
    No./mm
    Nominal Insulation Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    1×1.5 30/0.25 1.05 4.90 38
    1×2.5 50/0.25 1.15 5.35 50
    1×4 56/0.30 1.25 6.10 88
    1×6 84/0.30 1.30 7.00 93
    1×10 80/0.40 1.30 8.10 142
    1×16 126/0.40 1.15 9.30 210
    1×25 196/0.40 1.50 10.8 290
    1×35 276/0.40 1.50 12.1 400
    1×50 396/0.40 1.60 13.8 561
    1×70 360/0.50 1.70 16.2 760
    1×95 475/0.50 1.90 18.0 980
    1×120 608/0.50 2.10 20.2 1212
    1×150 756/0.50 2.20 22.7 1520
    1×185 925/0.50 2.40 24.6 1830
    1×240 1221/0.50 2.50 27.6 2411
    NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1
    NF C32-070-2.2(C1) IEC 60332-3/EN50266
    IEC 60754-1/NF C20-454 EN 50267-2-1
    IEC 61034/NFC20-902 EN 50268/NF C32-073
    EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
