PROFIBUS 1 Pair 0.35mm²

PROFIBUS 1 Pair 0.35mm² IEC60092 STANDARD cables

Application

These IEC60092 STANDARD Offshore & Marine profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards

 DIN VDE 0472 part 805
 IEC 60332-1&2
 IEC 60754-1/2
 IEC 61034

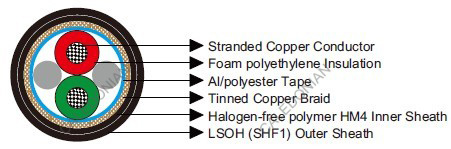

Construction

 Conductors: Stranded bare copper.
 Insulation: Foam polyethylene (cellular HDPE).
 Overall Screen1: Aluminium/polyester tape.
 Overall Screen2: Tinned copper braid.
 Inner Sheath: Halogen-free polymer HM4.
 Outer Sheath: LSOH (SHF1).

Core Identification

Core 1: Red
Core 2: Green

Electrical Characteristics

Characteristic Impedance Ω 150 ± 15
Mutual Capacitance @800MHz nF/km 30
Insulation Resistance MΩ.km 16000
Attenuation @9.6kHz dB/km 3
Attenuation @38.4kHz dB/km 5
Attenuation @4kHz dB/km 22
Attenuation @16kHz dB/km 45

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 10×OD
Temperature Range: -35℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of elements×No. of cores in element×Cross
section(mm²) 		Core Diameter mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MLN-02Y(ST)CH-1×2×0.35 1×2×0.35 2.75 10.3 110
