IEC60092 STANDARD MariSig Flame Retardant Instrumentation & Control Cables

ROI/ ROU (MRE-3GCH) 150/250V HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair)

Application

These ROI/ ROU (MRE-3GCH) 150/250V IEC60092 STANDARD Offshore & Marine armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

DIN 89159/98
IEC 60092-360/375
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

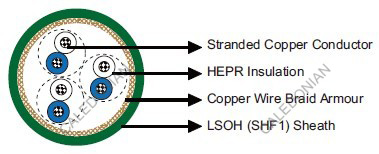

Construction

Conductors: Stranded copper conductor.
Insulation: HEPR.
Cabling Element: Pair.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1).

Core Identification

Pair: white/ blue with printed pair number and core number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +75℃

Dimensions and Weight

Part No.	Construction No. of elements×No. of cores in element×Cross section(mm²)	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
MRE-3GCH-1P0.75	1×2×0.75	0.5	1.2	8.5	90
MRE-3GCH-2P0.75	2×2×0.75*	0.5	1.3	9.5	130
MRE-3GCH-4P0.75	4×2×0.75	0.5	1.4	13.0	230
MRE-3GCH-7P0.75	7×2×0.75	0.5	1.8	15.5	340
MRE-3GCH-10P0.75	10×2×0.75	0.5	1.9	18.5	470
MRE-3GCH-14P0.75	14×2×0.75	0.5	2.0	21.0	610
MRE-3GCH-19P0.75	19×2×0.75	0.5	2.1	23.5	770
MRE-3GCH-24P0.75	24×2×0.75	0.5	2.2	26.5	950

*: 2 pairs are assembled as a quad.
