 BS 6883&BS7917 STANDARD Offshore & Marine Cables
1.9/3.3kV, 3.3/3.3kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Flame Retardant Power & Control Cables

BS 6883&BS7917 STANDARD Offshore & Marine Cables

Application

These BS 6883&BS7917 STANDARD Offshore & Marine medium voltage elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.

Standards

 BS 6883
 IEC 60332-3A Flame retardant
 IEC 60754-1; IEC 60754- 2 Corrosivity
 IEC 61034-2 Smoke density
 Cold bend and impact (-40°C) (on request)
 CSA C22.2 No. 38-95 (on request)

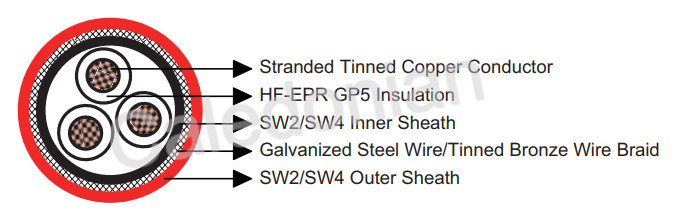

Construction

 Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
 Insulation: HF-EPR GP5 according to BS 7655 1.2.
 Inner Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
 Armour: Galvanized steel wire braid or tinned bronze wire braid (single core).
 Outer Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius: 6×OD
Temperature Range: -40℃ ~ +90℃

Dimensions and Weight

9/3.3kV

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Minimum  Diameter Over Inner Sheath mm Maximum Diameter Over Inner Sheath mm Nominal Armour Wire Diameter mm Nominal Outer Sheath Thickness mm Minimum Overall Diameter mm Maximum Overall Diameter mm Approx. Weight kg/km
1×10 2.2 1.1 10.2 11.9 0.3 1.3 14.2 16.2 398
1×16 2.2 1.2 11.4 13.1 0.3 1.3 15.4 17.6 499
1×25 2.2 1.2 13.0 14.8 0.3 1.4 17.1 19.5 675
1×35 2.2 1.3 14.1 15.9 0.3 1.4 18.2 20.6 793
1×50 2.2 1.3 15.3 17.2 0.3 1.5 19.6 22.4 970
1×70 2.2 1.4 17.2 19.2 0.3 1.6 21.7 24.6 1269
1×95 2.4 1.5 19.4 21.9 0.3 1.7 24.2 27.2 1623
1×120 2.4 1.6 21.3 23.8 0.3 1.7 26.0 29.1 1983
1×150 2.4 1.6 22.8 25.4 0.45 1.8 28.4 31.6 2423
1×185 2.4 1.7 24.8 27.4 0.45 1.9 30.6 34.3 2917
1×240 2.4 1.8 27.5 30.3 0.45 2.0 33.5 37.3 3654
1×300 2.4 1.9 30.0 33.2 0.45 2.1 36.2 40.1 4428
1×400 2.6 2.0 33.8 37.1 0.45 2.3 40.3 44.8 5416
1×500 2.8 2.2 37.6 41.1 0.45 2.5 44.5 49.2 6726
1×630 2.8 2.3 41.2 45.2 0.45 2.6 48.4 53.6 8562
3×10 2.2 1.5 20.4 22.9 0.3 1.7 25.1 28.2 1052
3×16 2.2 1.6 22.8 25.3 0.3 1.8 27.7 30.8 1357
3×25 2.2 1.8 26.6 29.3 0.45 2.0 32.6 36.3 2032
3×35 2.2 1.8 28.4 31.2 0.45 2.1 34.6 38.5 2382
3×50 2.2 1.9 31.2 34.4 0.45 2.2 37.6 41.6 2936
3×70 2.2 2.1 35.3 38.7 0.45 2.4 42.1 46.7 3877
3×95 2.4 2.3 40.2 44.1 0.45 2.6 47.4 52.1 4995
3×120 2.4 2.4 44.0 48.1 0.45 2.7 51.4 56.7 6118
3×150 2.4 2.6 47.6 51.8 0.45 2.9 55.3 60.8 7284
3×185 2.4 2.7 51.7 56.4 0.45 3.0 59.6 65.7 8750
3×240 2.4 3.0 57.7 62.9 0.45 3.3 66.2 72.6 11118
3×300 2.4 3.2 63.1 68.6 0.45 3.5 72.0 79.0 13531

3.3/3.3kV

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Minimum  Diameter Over Inner Sheath mm Maximum Diameter Over Inner Sheath mm Nominal Armour Wire Diameter mm Nominal Outer Sheath Thickness mm Minimum Overall Diameter mm Maximum Overall Diameter mm Approx. Weight kg/km
1×10 3.0 1.2 12.0 13.7 0.3 1.4 16.1 18.4 483
1×16 3.0 1.2 13.0 14.7 0.3 1.4 17.1 19.4 579
1×25 3.0 1.3 14.7 16.7 0.3 1.5 19.1 21.5 774
1×35 3.0 1.3 15.6 17.6 0.3 1.5 19.9 22.8 885
1×50 3.0 1.4 17.0 19.0 0.3 1.6 21.5 24.4 1082
1×70 3.0 1.5 18.9 21.0 0.3 1.6 23.4 26.4 1377
1×95 3.0 1.5 20.6 23.1 0.3 1.7 25.3 28.4 1699
1×120 3.0 1.6 22.5 25.0 0.3 1.8 27.4 30.5 2081
1×150 3.0 1.7 24.1 26.8 0.45 1.9 30.0 33.6 2550
1×185 3.0 1.7 26.0 28.6 0.45 2.0 32.0 35.7 3032
1×240 3.0 1.8 28.7 31.8 0.45 2.1 34.8 38.7 3780
1×300 3.0 1.9 31.2 34.4 0.45 2.2 37.6 41.5 4563
1×400 3.0 2.1 34.7 38.1 0.45 2.3 41.3 45.8 5514
1×500 3.2 2.2 38.4 41.9 0.45 2.5 45.3 50.0 6807
1×630 3.2 2.4 42.2 46.2 0.45 2.6 49.4 54.6 8691
3×10 3.0 1.7 24.1 26.7 0.45 1.9 29.9 33.6 1404
3×16 3.0 1.8 26.5 29.2 0.45 2.0 32.5 36.2 1738
3×25 3.0 1.9 30.1 33.2 0.45 2.1 36.3 40.2 2314
3×35 3.0 2.0 32.1 35.4 0.45 2.2 38.5 42.9 2701
3×50 3.0 2.1 34.9 38.3 0.45 2.3 41.5 46.0 3278
3×70 3.0 2.2 38.9 42.7 0.45 2.5 45.8 50.5 4226
3×95 3.0 2.4 42.9 46.9 0.45 2.7 50.2 55.5 5297
3×120 3.0 2.5 46.7 50.9 0.45 2.8 54.2 59.7 6442
3×150 3.0 2.7 50.3 54.9 0.45 3.0 58.2 64.2 7631
3×185 3.0 2.8 54.4 59.2 0.45 3.2 62.7 68.9 9158
3×240 3.0 3.1 60.4 65.7 0.45 3.4 69.1 76.0 11526
