  HomeProuductsNEK606 Water Blocked Offshore & Marine Cables

NEK606 Water Blocked Offshore & Marine Cables
Water Blocked S1 or S1/S5 RFOU(i) 250V

Applications

  • These S1 or S1/S5 RFOU(i) 250V NEK606 Water Blocked Offshore Marine cables are partially water blocked, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

Standards

  • IEC 60092-376 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

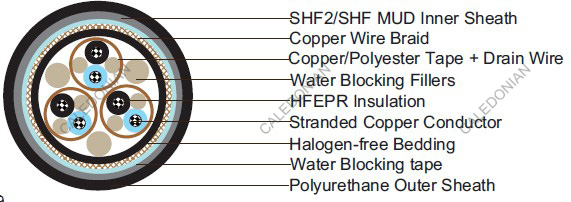

Water Blocked S1 or S1/S5 RFOU(i) 250V NEK606 Marine Cables

Construction

  • l Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
    l Insulation: Halogen free EPR compound.
    l Twinning: Colour coded cores twisted together.
    l Filler: Water blocking fillers, if required.
    l Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE S1). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S1/S5), coloured grey (blue for intrinsically safe).
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 0.75 1.0 1.5 2.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
    Maximum Resistant@20˚C O/km 26.3 19.3 12.9 8.02
    Mutual Capacitance nF/km 90 100 110 120
    Nominal Inductance@1KHz MH/km 0.686 0.649 0.637 0.598
    Maximum L/R@1KHz μH/O 20 25 35 50
    Operating Voltage V 250 250 250 250

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section (mm2) Nominal Insulation Thickness mm Nominal Bedding Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
1×2×0.75 0.6 1.1 1.1 1 12.9±2 221
2×2×0.75 0.6 1.1 1.3 1 15.2±2 341
4×2×0.75 0.6 1.1 1.3 1 18.2±2 504
7×2×0.75 0.6 1.1 1.4 1 21.0±2 704
8×2×0.75 0.6 1.1 1.4 1 22.4±2 793
9×2×0.75 0.6 1.1 1.5 1 24.6±2 877
10×2×0.75 0.6 1.1 1.5 1 25.5±2 919
12×2×0.75 0.6 1.1 1.5 1 26.1±2 1061
14×2×0.75 0.6 1.1 1.6 1 27.3±2 1092
15×2×0.75 0.6 1.1 1.6 1 28.9±2 1176
16×2×0.75 0.6 1.1 1.6 1 29.3±2 1223
18×2×0.75 0.6 1.1 1.7 1 30.7±2 1334
19×2×0.75 0.6 1.1 1.7 1 31.0±2 1428
20×2×0.75 0.6 1.1 1.7 1 32.1±2 1491
21×2×0.75 0.6 1.1 1.8 1 33.0±2 1565
23×2×0.75 0.6 1.1 1.8 1 33.5±2 1675
24×2×0.75 0.6 1.2 1.8 1 35.4±2 1806
27×2×0.75 0.6 1.2 1.9 1 36.0±2 1859
30×2×0.75 0.6 1.2 1.9 1 37.1±2 2006
32×2×0.75 0.6 1.2 2 1 38.1±2 2163
33×2×0.75 0.6 1.2 2 1 38.9±2 2268
37×2×0.75 0.6 1.2 2 1 40.0±2 2447
1×3×0.75 0.6 1.1 1.2 1 13.3±2 236
2×3×0.75 0.6 1.1 1.3 1 18.4±2 515
3×3×0.75 0.6 1.1 1.4 1 19.2±2 546
4×3×0.75 0.6 1.1 1.4 1 20.5±2 641
5×3×0.75 0.6 1.1 1.5 1 21.8±2 756
6×3×0.75 0.6 1.1 1.5 1 23.7±2 877
7×3×0.75 0.6 1.1 1.5 1 23.7±2 914
8×3×0.75 0.6 1.1 1.6 1 25.5±2 998
9×3×0.75 0.6 1.1 1.6 1 26.6±2 1118
10×3×0.75 0.6 1.1 1.7 1 28.4±2 1150
12×3×0.75 0.6 1.1 1.7 1 29.3±2 1339
14×3×0.75 0.6 1.1 1.8 1 30.5±2 1386
15×3×0.75 0.6 1.1 1.8 1 31.3±2 1465
16×3×0.75 0.6 1.1 1.8 1 32.1±2 1538
18×3×0.75 0.6 1.1 1.9 1 33.6±2 1680
19×3×0.75 0.6 1.1 1.9 1 33.9±2 1738
20×3×0.75 0.6 1.2 2 1 35.2±2 1911
21×3×0.75 0.6 1.2 2 1 35.8±2 1985
23×3×0.75 0.6 1.2 2 1 37.1±2 2153
24×3×0.75 0.6 1.2 2 1 38.0±2 2331
27×3×0.75 0.6 1.2 2.1 1 39.9±2 2452
30×3×0.75 0.6 1.2 2.2 1 41.7±2 2683
32×3×0.75 0.6 1.2 2.2 1 42.7±2 2825
1×2×1.0 0.6 1.1 1.2 1 13.4±2 242
2×2×1.0 0.6 1.1 1.3 1 16.5±2 389
3×2×1.0 0.6 1.1 1.3 1 18.6±2 541
4×2×1.0 0.6 1.1 1.4 1 19.4±2 625
5×2×1.0 0.6 1.1 1.4 1 21.1±2 719
6×2×1.0 0.6 1.1 1.5 1 22.7±2 830
7×2×1.0 0.6 1.1 1.5 1 22.7±2 861
8×2×1.0 0.6 1.1 1.6 1 23.6±2 919
9×2×1.0 0.6 1.1 1.6 1 25.8±2 1045
10×2×1.0 0.6 1.1 1.6 1 26.8±2 1061
12×2×1.0 0.6 1.1 1.7 1 27.6±2 1255
14×2×1.0 0.6 1.1 1.7 1 28.7±2 1271
15×2×1.0 0.6 1.1 1.8 1 30.5±2 1386
16×2×1.0 0.6 1.1 1.8 1 31.0±2 1444
18×2×1.0 0.6 1.1 1.9 1 32.5±2 1575
19×2×1.0 0.6 1.1 1.9 1 32.8±2 1633
20×2×1.0 0.6 1.1 1.9 1 33.9±2 1764
21×2×1.0 0.6 1.2 2 1 35.3±2 1880
23×2×1.0 0.6 1.2 2 1 35.7±2 2016
24×2×1.0 0.6 1.2 2 1 37.2±2 2116
27×2×1.0 0.6 1.2 2.1 1 38.5±2 2294
30×2×1.0 0.6 1.2 2.1 1 39.7±2 2483
33×2×1.0 0.6 1.2 2.2 1 41.2±2 2699
37×2×1.0 0.6 1.2 2.2 1 42.4±2 2914
1×3×1.0 0.6 1.1 1.2 1 13.8±2 263
2×3×1.0 0.6 1.1 1.4 1 19.3±2 583
3×3×1.0 0.6 1.1 1.4 1 19.9±2 620
4×3×1.0 0.6 1.1 1.4 1 21.4±2 735
5×3×1.0 0.6 1.1 1.5 1 22.7±2 866
6×3×1.0 0.6 1.1 1.6 1 25.0±2 1024
7×3×1.0 0.6 1.1 1.6 1 25.0±2 1040
8×3×1.0 0.6 1.1 1.6 1 26.4±2 1150
9×3×1.0 0.6 1.1 1.7 1 28.4±2 1307
10×3×1.0 0.6 1.1 1.8 1 30.0±2 1328
12×3×1.0 0.6 1.1 1.8 1 30.9±2 1575
14×3×1.0 0.6 1.1 1.8 1 32.0±2 1622
15×3×1.0 0.6 1.1 1.9 1 33.1±2 1738
16×3×1.0 0.6 1.1 1.9 1 33.8±2 1964
18×3×1.0 0.6 1.2 2 1 35.9±2 2032
19×3×1.0 0.6 1.2 2 1 36.2±2 2142
20×3×1.0 0.6 1.2 2 1 37.1±2 2258
21×3×1.0 0.6 1.2 2.1 1 37.9±2 2357
23×3×1.0 0.6 1.2 2.1 1 39.6±2 2651
24×3×1.0 0.6 1.2 2.1 1 40.7±2 2819
27×3×1.0 0.6 1.2 2.2 1 42.3±2 2924
30×3×1.0 0.6 1.2 2.3 1 44.1±2 3203
32×3×1.0 0.6 1.2 2.3 1 45.2±2 3376
1×2×1.5 0.7 1.1 1.2 1 14.4±2 284
2×2×1.5 0.7 1.1 1.4 1 17.8±2 520
3×2×1.5 0.7 1.1 1.4 1 19.9±2 672
4×2×1.5 0.7 1.1 1.5 1 21.5±2 751
5×2×1.5 0.7 1.1 1.5 1 23.5±2 893
6×2×1.5 0.7 1.1 1.6 1 25.3±2 1040
7×2×1.5 0.7 1.1 1.6 1 25.3±2 1082
8×2×1.5 0.7 1.1 1.7 1 26.8±2 1187
9×2×1.5 0.7 1.1 1.7 1 28.9±2 1292
10×2×1.5 0.7 1.1 1.8 1 30.2±2 1334
12×2×1.5 0.7 1.1 1.8 1 31.3±2 1444
14×2×1.5 0.7 1.1 1.8 1 32.2±2 1596
15×2×1.5 0.7 1.2 1.9 1 34.7±2 1769
16×2×1.5 0.7 1.2 2 1 35.4±2 1864
18×2×1.5 0.7 1.2 2 1 37.0±2 2016
19×2×1.5 0.7 1.2 2 1 37.3±2 2090
20×2×1.5 0.7 1.2 2.1 1 39.2±2 2368
21×2×1.5 0.7 1.2 2.1 1 40.2±2 2462
23×2×1.5 0.7 1.2 2.2 1 41.0±2 2667
24×2×1.5 0.7 1.2 2.2 1 42.7±2 2741
27×2×1.5 0.7 1.2 2.3 1 43.7±2 2914
30×2×1.5 0.7 1.2 2.3 1 45.1±2 3155
33×2×1.5 0.7 1.4 2.4 1 47.1±2 3654
37×2×1.5 0.7 1.4 2.5 1 48.7±2 3780
1×3×1.5 0.7 1.1 1.2 1 15.0±2 315
2×3×1.5 0.7 1.1 1.4 1 19.5±2 536
3×3×1.5 0.7 1.1 1.5 1 22.1±2 777
4×3×1.5 0.7 1.1 1.5 1 23.8±2 914
5×3×1.5 0.7 1.1 1.6 1 25.3±2 1097
6×3×1.5 0.7 1.1 1.7 1 27.9±2 1292
7×3×1.5 0.7 1.1 1.7 1 28.0±2 1328
8×3×1.5 0.7 1.1 1.8 1 29.8±2 1475
9×3×1.5 0.7 1.1 1.8 1 31.5±2 1664
10×3×1.5 0.7 1.1 1.9 1 33.8±2 1764
12×3×1.5 0.7 1.2 2 1 35.1±2 2048
14×3×1.5 0.7 1.2 2 1 36.6±2 2121
15×3×1.5 0.7 1.2 2 1 37.6±2 2252
16×3×1.5 0.7 1.2 2.1 1 38.6±2 2573
18×3×1.5 0.7 1.2 2.2 1 41.2±2 2709
19×3×1.5 0.7 1.2 2.2 1 41.5±2 2809
20×3×1.5 0.7 1.2 2.2 1 42.5±2 3019
21×3×1.5 0.7 1.2 2.3 1 43.5±2 3150
23×3×1.5 0.7 1.2 2.3 1 45.0±2 3423
24×3×1.5 0.7 1.4 2.4 1 46.9±2 3476
27×3×1.5 0.7 1.4 2.4 1 48.4±2 3817
30×3×1.5 0.7 1.4 2.5 1 50.5±2 4179
32×3×1.5 0.7 1.4 2.6 1 52.0±2 4436
1×2×2.5 0.7 1.1 1.2 1 15.3±2 336
2×2×2.5 0.7 1.1 1.4 1 19.5±2 557
3×2×2.5 0.7 1.1 1.5 1 22.2±2 819
4×2×2.5 0.7 1.1 1.5 1 23.5±2 945
5×2×2.5 0.7 1.1 1.6 1 25.4±2 1113
6×2×2.5 0.7 1.1 1.7 1 27.4±2 1297
7×2×2.5 0.7 1.1 1.7 1 27.4±2 1355
8×2×2.5 0.7 1.1 1.7 1 29.5±2 1470
9×2×2.5 0.7 1.1 1.8 1 31.4±2 1570
10×2×2.5 0.7 1.1 1.9 1 32.9±2 1675
12×2×2.5 0.7 1.1 1.9 1 33.6±2 1843
14×2×2.5 0.7 1.2 2 1 35.6±2 2090
15×2×2.5 0.7 1.2 2.1 1 38.0±2 2273
16×2×2.5 0.7 1.2 2.1 1 38.9±2 2468
18×2×2.5 0.7 1.2 2.2 1 40.9±2 2693
19×2×2.5 0.7 1.2 2.2 1 41.3±2 2798
20×2×2.5 0.7 1.2 2.2 1 42.8±2 3024
21×2×2.5 0.7 1.2 2.3 1 44.1±2 3171
23×2×2.5 0.7 1.2 2.3 1 44.7±2 3418
24×2×2.5 0.7 1.4 2.4 1 47.2±2 3497
27×2×2.5 0.7 1.4 2.4 1 48.1±2 3796
30×2×2.5 0.7 1.4 2.5 1 49.8±2 4148
33×2×2.5 0.7 1.4 2.6 1 51.7±2 4515
37×2×2.5 0.7 1.4 2.6 1 53.2±2 4904
1×3×2.5 0.7 1.1 1.3 1 15.9±2 373
2×3×2.5 0.7 1.1 1.5 1 22.9±2 882
3×3×2.5 0.7 1.1 1.5 1 23.6±2 992
4×3×2.5 0.7 1.1 1.6 1 25.3±2 1171
5×3×2.5 0.7 1.1 1.7 1 27.4±2 1381
6×3×2.5 0.7 1.1 1.8 1 30.3±2 1633
7×3×2.5 0.7 1.1 1.8 1 30.3±2 1722
8×3×2.5 0.7 1.1 1.8 1 32.2±2 1869
9×3×2.5 0.7 1.2 1.9 1 34.6±2 2158
10×3×2.5 0.7 1.2 2 1 37.1±2 2184
12×3×2.5 0.7 1.2 2.1 1 38.8±2 2557
14×3×2.5 0.7 1.2 2.1 1 40.3±2 2835
15×3×2.5 0.7 1.2 2.2 1 41.7±2 3040
16×3×2.5 0.7 1.2 2.2 1 42.8±2 3203
18×3×2.5 0.7 1.2 2.3 1 44.9±2 3502
19×3×2.5 0.7 1.2 2.3 1 45.3±2 3644
20×3×2.5 0.7 1.4 2.4 1 46.9±2 3974
21×3×2.5 0.7 1.4 2.4 1 47.8±2 4132
23×3×2.5 0.7 1.4 2.5 1 49.7±2 4358
24×3×2.5 0.7 1.4 2.5 1 50.6±2 4515
27×3×2.5 0.7 1.4 2.6 1 53.1±2 5003
30×3×2.5 0.7 1.4 2.7 1 55.5±2 5497
32×3×2.5 0.7 1.6 2.8 1 57.5±2 5901
