NEK606 Water Blocked Offshore & Marine Cables
Water Blocked S9 IYXI(c) 60 V

Applications

  • These S9 IYXI(c) 60 V NEK606 Water Blocked Offshore & Marine cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.

Standards

IEC 60092-359 IEC 60332-1
IEC 60332-3-22 IEC 60754-1,2
IEC 61034-1,2 NEK 606:2004
VG 95218 part 29

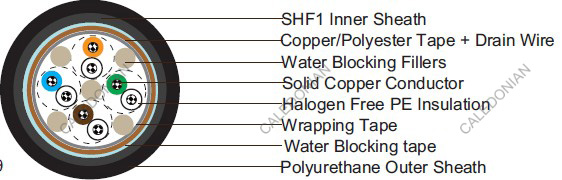

Water Blocked S9 IYXI(c) 60 V NEK606  Marine Cables

Construction

  • l Conductors: Solid tinned copper, 0.5mm.
    l Insulation: Halogen-free thermoplastic compound PE.
    l Twinning: Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.
    l Filler: Water blocking fillers, if required.
    l Wrapping: Polyester tape.
    l Collective Shielding: The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner sheath: Halogen-free thermoplastic compound, type SHF1, coloured grey.
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Conductor Diameter mm 0.5
    Maximum Resistant@20˚C O/km 95
    Nominal Inductance@1KHz MH/km 0.61
    Mutual Capacitance 1-pair cable nF/km 90
    Mutual Capacitance 2-pair cable nF/km 80
    Mutual Capacitance 4-pair and above cable nF/km 70
    Operating Voltage V 60

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -10˚C ~ +60˚C.

Dimensions and Weight

Construction
No. of elements×No. of cores in element×Core diameter(mm)
Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
1×2×0.5 0.2 1.2 1 7.0±2 32
2×2×0.5 0.2 1.2 1 7.5±2 37
4×2×0.5 0.2 1.2 1 9.0±2 58
10×2×0.5 0.2 1.5 1 10.5±2 95
20×2×0.5 0.2 1.5 1 13.0±2 155
30×2×0.5 0.2 1.5 1 15.5±2 221
50×2×0.5 0.2 1.5 1 18.0±2 336
